Thương hiệu: SMA
Tình trạng: Còn hàng

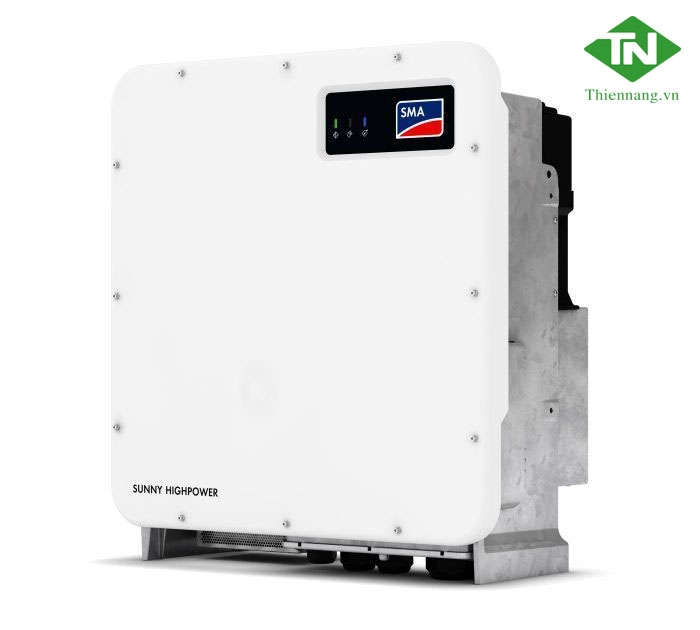

1500 VDC , 150 kW, compact design PEAK3 stands for pure power. With its compact design, the inverter offers the highest power density per device. The advantages: optimal performance at a light weight. The result is cheaper transportation and easier installation. In combination with the project-specific DC Combiner Boxes, the PV array can be oversized up to 150 %.
Hỗ trợ vận chuyển tuỳ theo thoả thuận đơn hàng
Hỗ trợ thanh toán tiền mặt, thẻ visa tất cả các ngân hàng
Hỗ trợ chăm sóc khách hàng 24/7
Thiên Năng Tecch là thương hiệu được yêu thích và lựa chọn
Maximum safety & reliability

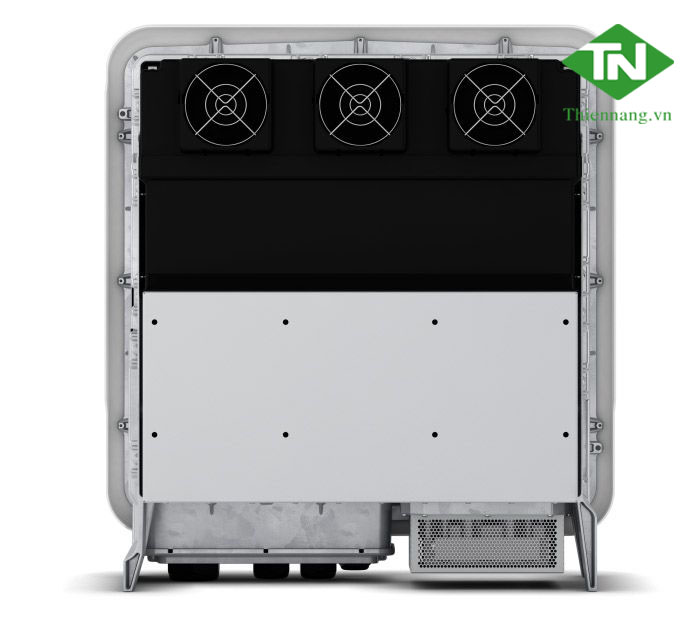

The PEAK3 inverter focuses on what is most important – maximum yield and optimal plant availability. All features and components are custom-tailored in order to keep the weight down, to minimize potential error sources and to maximize efficiency. Proven technologies such as the active cooling system SMA OptiCool ensure a long lifetime of the inverters.
Flexible, easily scalable plant design

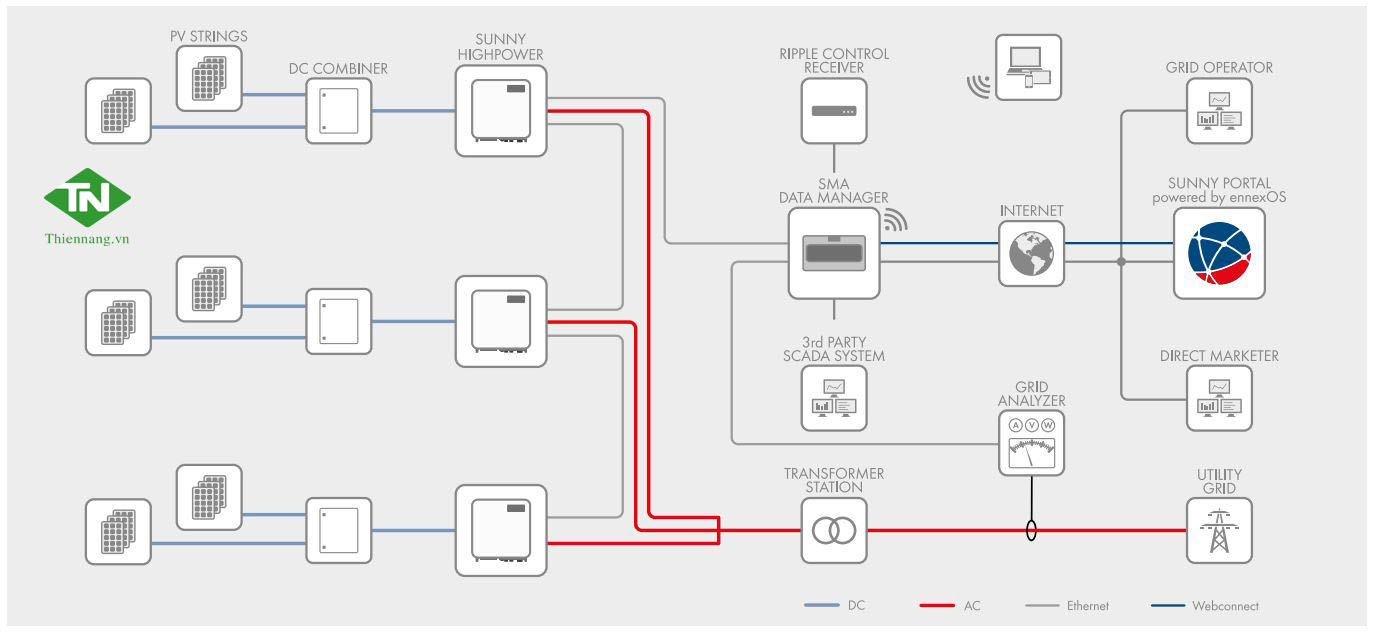

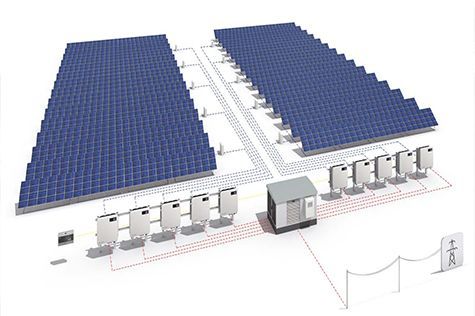

The PEAK3 system solution combines the advantages of a decentralized system layout with those of the central inverter concept. The DC Combiner Boxes enable efficient planning and easy expansion of large-scale solar plants even on heterogeneous terrain. Thanks to the modular approach, projects can be scaled both in terms of power and function. This means maximum flexibility in the plant design.

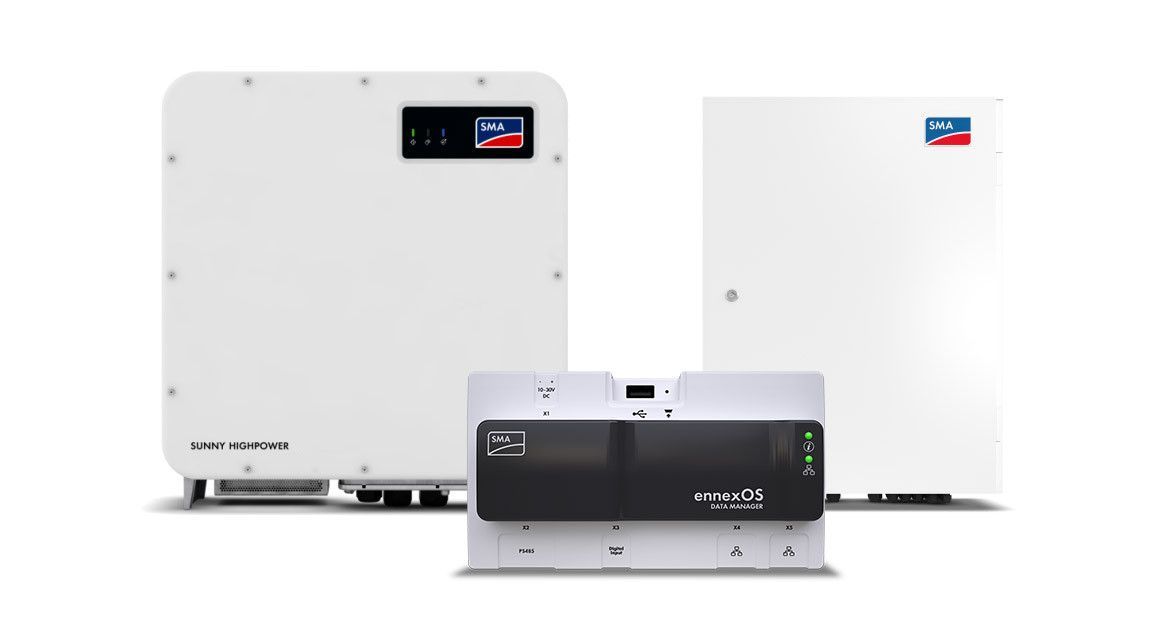

The PEAK3 system solution is ready for ennexOS, SMA’s pioneering digital platform. ennexOS converges the data of all relevant energy sectors to realize modern, forwardlooking products in the energy industry. The platform is gradually extended and currently offers powerful features such as satellite-based performance ratio monitoring.
Further information: www.ennexos.com
Fast installation, easy commissioning

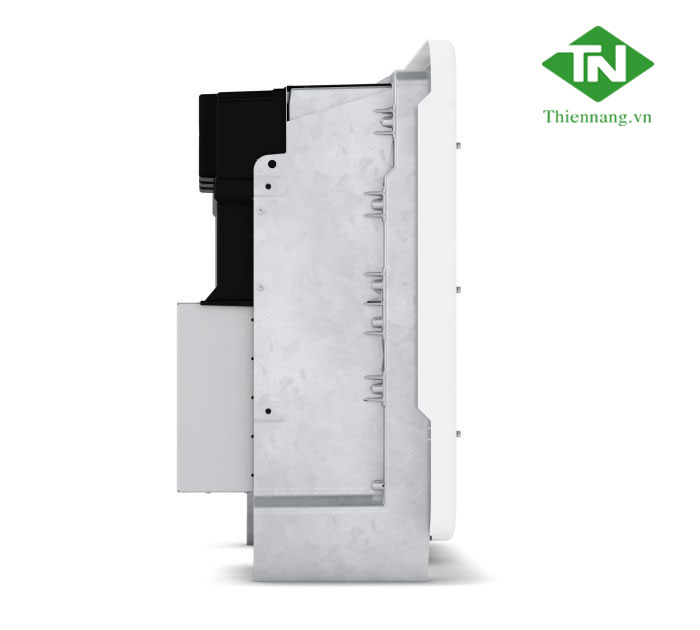

The PEAK3 system solution offers smart functionalities for quick and safe installation of all devices. Ergonomic grips and the integrated hook-in mechanism simplify the mounting of the inverters. Large, stiff DC cables can be conveniently routed via a separable connection plate and allow hassle-free connection. A single Data Manager enables up to 200 inverters to be commissioned centrally in just a few minutes.
Efficient control, convenient monitoring
Each device can be controlled directly via reliable, fast Ethernet communication between Data Manager and inverter. The entire plant portfolio can be centrally monitored with the new Sunny Portal powered by ennexOS. Changes to the configuration are easily made across plants without setting up multiple VPN connections. Additional monitoring systems can access all devices via the open Modbus / TCP interface.
More than 20 years of utility experience have gone into the development of the PEAK3 system solution. Central handling, decentralized system and a modular concept – that’s exactly what makes PEAK3 so convincing. The powerful supplements help you get the most out of large PV plants.
| Technical Data | Sunny Highpower 100-20 | Sunny Highpower 150-20 |
| Input (DC) | ||
| Max. PV array power | 150000 Wp | 225000 Wp |
| Max. input voltage | 1000 V | 1500 V |
| MPP voltage range / rated input voltage | 590 V to 1000 V / 590 V | 880 V to 1450 V / 880 V |
| Max. input current / max. short-circuit current | 180 A / 325 A | 180 A / 325 A |
| Number of independent MPP trackers | 1 | 1 |
| Number of inputs | 1 or 2 (optional) for external PV array junction boxes | |
| Output (AC) | ||
| Rated power at nominal voltage | 100000 W | 150000 W |
| Max. apparent power | 100000 VA | 150000 VA |
| Nominal AC voltage / AC voltage range | 400 V / 304 V to 477 V | 600 V / 480 V to 690 V |
| AC grid frequency / range | 50 Hz / 44 Hz to 55 Hz 60 Hz / 54 Hz to 66 Hz |
50 Hz / 44 Hz to 55 Hz 60 Hz / 54 Hz to 66 Hz |
| Rated grid frequency | 50 Hz | 50 Hz |
| Max. output current | 151 A | 151 A |
| Power factor at rated power / displacement power factor adjustable | 1 / 0 overexcited to 0 underexcited | |
| Harmonic (THD) | < 3% | < 3% |
| Feed-in phases / AC connection | 3 / 3-PE | 3 / 3-PE |
| Efficiency | ||
| Max. efficiency / European efficiency | 98.8% / 98.6% | 99.1% / 98.8% |
| Protective devices | ||
| Ground fault monitoring / grid monitoring / DC reverse polarity protection | ● / ● / ● | ● / ● / ● |
| AC short-circuit current capability / galvanically isolated | ● / — | ● / — |
| All-pole-sensitive residual-current monitoring unit | ● | ● |
| Monitored surge arrester (type II) AC / DC | ● / ● | ● / ● |
| Protection class (according to IEC 62109-1) / overvoltage category (as per IEC 62109-1) | I / AC: III; DC: II | I / AC: III; DC: II |
| General Data | ||
| Dimensions (W / H / D) | 770 mm / 830 mm / 444 mm (30.3 in / 32.7 in / 17.5 in) | |
| Weight | 98 kg (216 lbs) | |
| Operating temperature range | ‒25°C to +60°C (‒13°F to +140°F) | |
| Noise emission (typical) | < 69 dB(A) | |
| Self-consumption (at night) | < 5 W | |
| Topology | transformerless | |
| Cooling method | OptiCool, active cooling, speed-controlled fan | |
| Degree of protection (according to IEC 60529) | IP65 | |
| Max. permissible value for relative humidity (non-condensing) | 100 % | |
| Features / function / accessories | ||
| DC connection / AC connection | Terminal lug (up to 300 mm²) / Screw terminal (up to 150 mm²) | |
| LED indicators (Status / Fault / Communication) | ● | |
| Ethernet interface | ● (2 ports) | |
| Data interface: SMA Modbus / SunSpec Modbus / Speedwire | ● / ● / ● | |
| Mounting type | Rack mounting | |
| OptiTrac / Integrated Plant Control / Q on Demand 24/7 | ● / ● / ● | |
| Off-grid capable / SMA Fuel Save Controller compatible | ● / ● | |
| Warranty: 5 / 10 / 15 / 20 years | ● / ○ / ○ / ○ | |
| Certificates and approvals (selection) | IEC/EN 62109-1/-2, VDE-AR-N 4110/4120, IEC 62116, IEC 61727, EN 50549, C10/11, CEI 0-16, G99/1 (>16A), PO 12.3, ABNT NBR 16149 |
|
| ● Standard features○ Optional features— Not available Data at nominal conditions Status: 10/ 2020 | ||
| Type designation | SHP 100-20 | SHP 150-20 |
