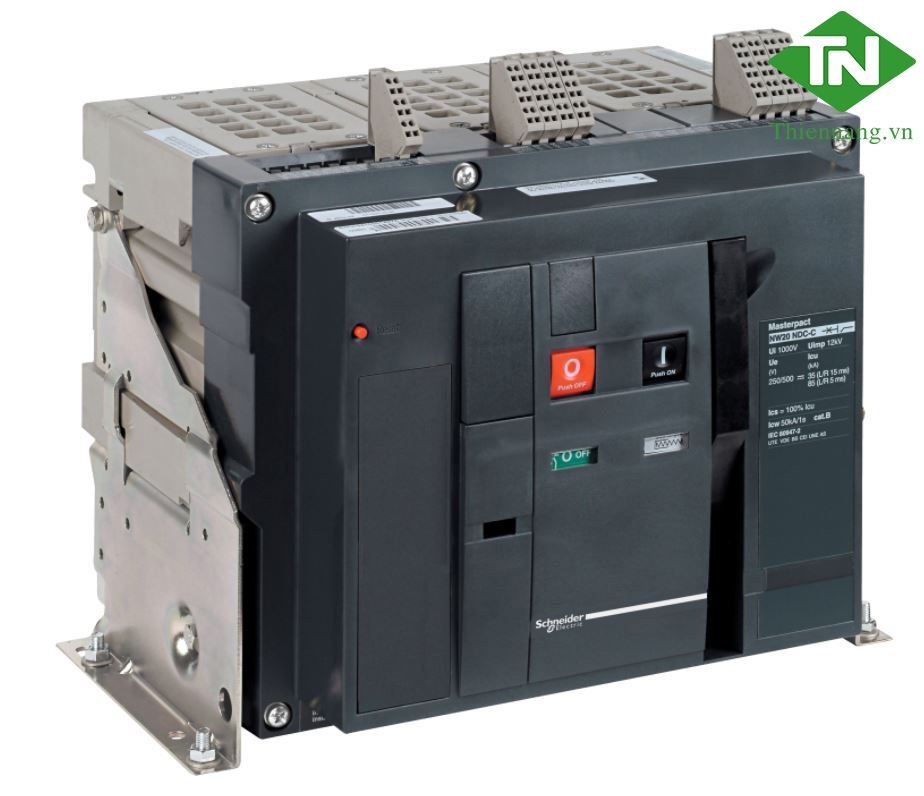

Switch Disconnector Masterpact NW16NA - 1600A - 690V - 3 Poles - Fixed

Thương hiệu: Schneider

Tình trạng: Còn hàng

Liên hệ
MAIN range Masterpact product name Masterpact NW product or component type Switch disconnector device short name Masterpact NW16 switch-disconnector name Masterpact NW16NA ...

Vận chuyển

Hỗ trợ vận chuyển tuỳ theo thoả thuận đơn hàng

Thanh toán nhanh

Hỗ trợ thanh toán tiền mặt, thẻ visa tất cả các ngân hàng

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Uy tín thương hiệu

Thiên Năng Tecch là thương hiệu được yêu thích và lựa chọn

MAIN
range Masterpact
product name Masterpact NW
product or component type Switch disconnector
device short name Masterpact NW16
switch-disconnector name Masterpact NW16NA
device application Protection
poles description 3P
network type AC
network frequency 50/60 Hz
[Ie] rated operational current 1600 A AC 50/60 Hz 690 V
[Ui] rated insulation voltage 1000 V AC 50/60 Hz conforming to IEC 60947-3
[Uimp] rated impulse withstand voltage 12 kV conforming to IEC 60947-3
[Icm] rated short-circuit making capacity 88 kA 220...690 V AC at 50/60 Hz
breaking capacity code NA
suitability for isolation Yes conforming to IEC 60947-3
contact position indicator Yes
visible break No
pollution degree 4 conforming to IEC 60664-1
COMPLEMENTARY
control type Push-button
mounting mode Fixed
operating rate 10 cyc/h maximum
[Icw] rated short-time withstand current 42 kA during 1 s conforming to IEC 60947-3
mechanical durability 12500 cycles without maintenance conforming to IEC 60947-3
25000 cycles with maintenance conforming to IEC 60947-3
electrical durability AC-23A: 10000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-3
AC-23A: 10000 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-3
AC-3: 6000 cycles 440/690 V AC 50/60 Hz without maintenance conforming to IEC 60947-3
connection pitch 115 mm
height 352 mm
width 442 mm
depth 297 mm
net weight 60 kg
ENVIROMENT
standards IEC 60947-3
product certifications ASEFA
ASTA
ambient air temperature for operation -25…70 °C
ambient air temperature for storage -35…85 °C
Offer Sustainability
Sustainable offer status Green Premium product
REACh Regulation REACh Declaration
EU RoHS Directive Compliant
EU RoHS Declaration
Mercury free Yes
RoHS exemption information Yes
China RoHS Regulation China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure Product Environmental Profile
Circularity Profile End of Life Information
WEEE The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
PVC free Yes
Contractual warranty
Warranty 18 months
