Flange immersion heaters - MAINTAINING A CONTINUOUS - Viet Nam

Electricfor flange immersion heaters are designed and
manufactured according to customer specifications.
Reliability and robustness are key drivers for our engineers.
Advantages
• Large range of materials and options according to customer
process and conditions of use
• Equipment available for use in hazardous areas or safe
environment
• The end-to-end control of the design and production chain
allows us to deliver a product which suits your process
perfectly.

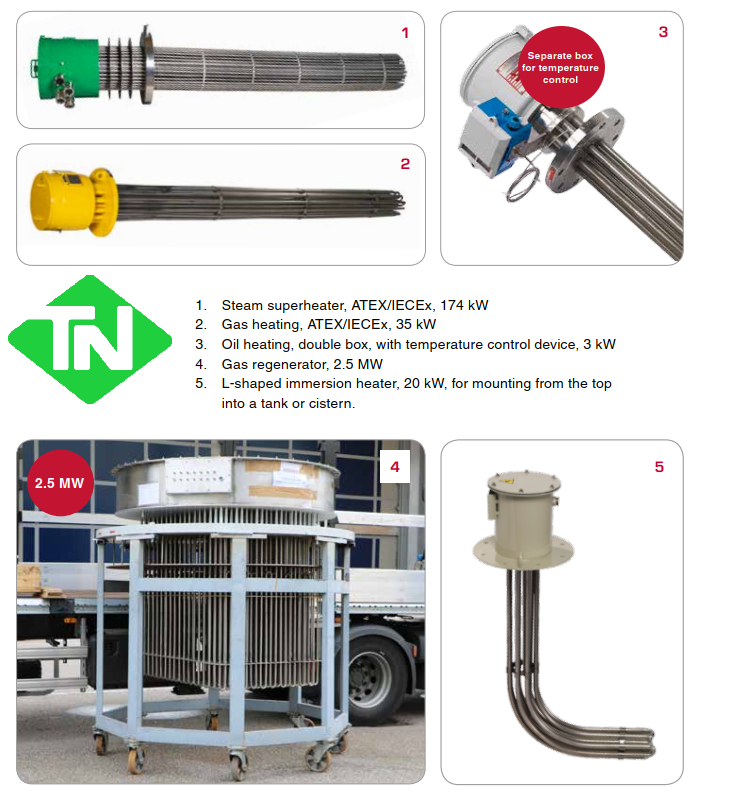

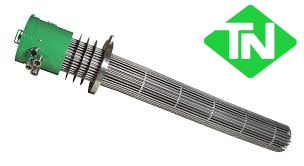

The flange immersion heaters consist of tubular
heating elements mounted on a flange. They are
highly performant for heating or maintaining the
temperature of gas or liquids.
Applications
• Maintaining the temperature and
heating of large volumes of liquids or
gas
• Heating of circulating or static fluids
• Mounted in tanks, cisterns, boilers or
circulation heaters, etc.
• Designed for pressure up to 300 bars
• Power up to 5 MW
• Process temperature up to +650 °C
• Tension max. 750 V
Secteurs industriels
• Petrochemicals
• Chemical industry
• Food industry
• Plastics
• Aeronautics
• Etc.
Immersion heater engineering
After customer specification analysis,
our engineers will drive you to the best
solution for your process.
ATEX/IECEx
Electricfor flange immersions heaters
are available in ATEX/IECEx version
for class temperature T1 (450°C) to T6
(85°C).
Temperature control
Temperature sensors (thermostat,
limiter, thermocouple or PT100) in the
medium (process control) or on the
heating element (safety control), on the
flange or in the connecting box.
