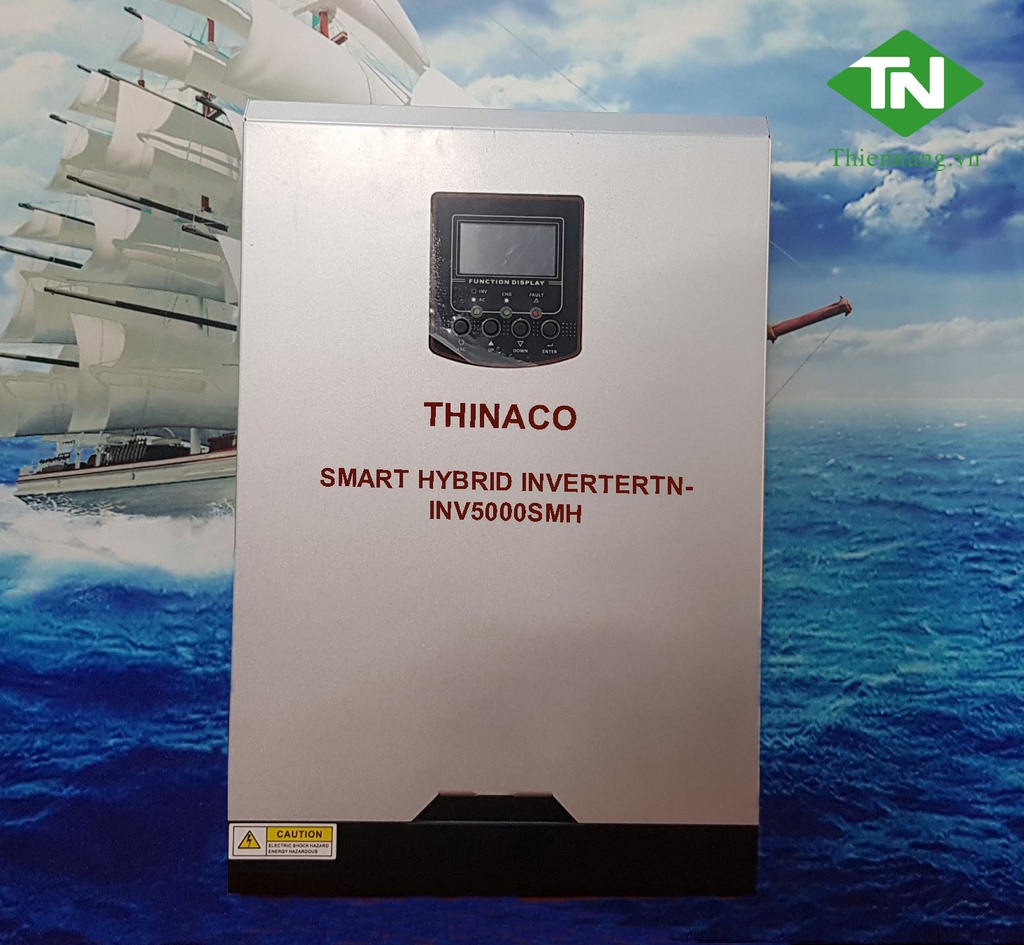

Inverter Hybrid Thinaco Smart TNINV5000SMH 5kW 1 Pha 230V

Datasheet TNINV5000SMH Input data(PV)   Max. recommended PV power(for module STC) 5000W Max. DC voltage 1000 Start voltage 160V MPP voltage range 160V-1000V / 600V No. of MPP trackers 2 No. of PV strings per MPP tracker 1 Max. input current per MPP tracker 12A Max. short-circuit current per MPP tracker 15A Output data(AC)   AC nominal power 5000W Max. AC apparent power 5000VA Nominal AC voltage (range*) 230V/400V (310~476V) AC grid frequency (range*) 50Hz/60Hz (45Hz-55Hz/55Hz-65Hz) Max. output current 15.2A Adjustable power factor 0.8leading…0.8lagging THDi <3% AC grid connection type 3W+N+PE Battery data (DC)   Battery voltage range 100~550V Max charging and discharging current 25A Continuous charging and discharging power 5000W Type of battery Lithium battery Backup power(AC)   Max. AC output power 5000W Max. AC apparent power 5000VA Max. output current 15.2A Nominal AC output voltage 230V/400V Nominal AC output frequency 50/60HZ THDv <3% Switch time <0.5S Efficiency   MAX. efficiency 98.20% European efficiency 97.50% Protection devices   DC switch Yes DC reverse polarity protection Yes AC/DC surge protection Type II Battery reverse protection Yes AC short-circuit protection Yes Ground fault...
