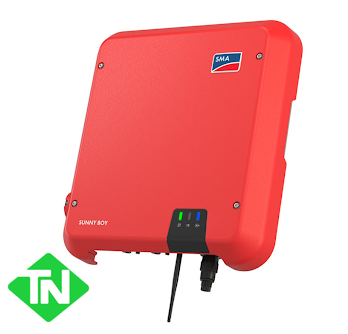

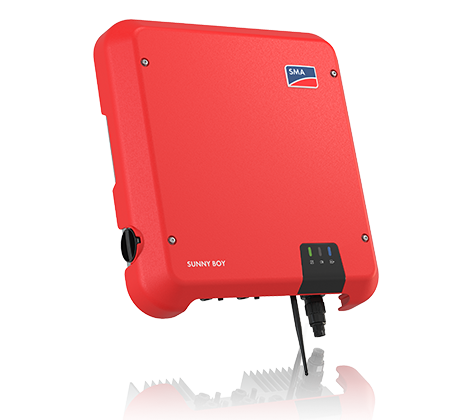

Inverter SMA Sunny Boy 4.0 4KW 1 Phase

Thương hiệu: SMA

Tình trạng: Còn hàng

Liên hệ
  • INVERTER SMA SUNNY BOY 4.0 Thiết kế gọn nhẹ nhưng hiệu quả rất cao
  • Công nghệ làm mát tiên tiến, ít hư hỏng
  • Tiết kiệm chi phí do ít chuỗi song song hơn
  • Thời gian hoàn vốn nhanh.
  • Giải pháp DC linh hoạt dành riêng cho khách hàng
  • Đạt tiêu chuẩn an toàn tuyệt đối
  • Kết nối đơn giản, cài đặt nhanh chóng
  • Màn hình LED hiển thị thông số dễ dàng theo dõi
  • Kiểm soát và cảnh báo hệ thống qua Internet

Vận chuyển

Hỗ trợ vận chuyển tuỳ theo thoả thuận đơn hàng

Thanh toán nhanh

Hỗ trợ thanh toán tiền mặt, thẻ visa tất cả các ngân hàng

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Uy tín thương hiệu

Thiên Năng Tecch là thương hiệu được yêu thích và lựa chọn

Technical data SMA Power Limiter
Input
Number of digital inputs (ripple control receiver) 4 (NO contacts)
Number of digital inputs (fast stop) 1 (NC contact)
Output
Voltage supply via inverter 10 V to 18 V
Number of controllable inverters 3
Compatible with the following inverters
Sunny Boy SB3.0-1AV-41, SB3.6-1AV-41, SB4.0-1AV-41, SB5.0-1AV-41, SB6.0-1AV-41
Sunny Tripower STP3.0-3AV-40, STP4.0-3AV-40, STP5.0-3AV-40, STP6.0-3AV-40, STP8.0-
3AV-40, STP10.0-3AV-40
Not compatible with the following devices SB1.5-1VL-40, SB2.0-1VL-40, SB2.5-1VL-40,
SMA Energy Meter, Sunny Home Manager 2.0, SMA Data Manager M
General data
Dimensions (W/H/D) 68 mm x 75 mm x 54 mm (2.7 in / 3.0 in / 2.1 in)
Weight 60 g (0.13 lb)
Mounting location Indoor
Mounting type Wall mounting / DIN rail mounting
Degree of protection (to IEC 60529) IP20
Operating temperature range -25°C to +60°C (-13°F to +140°F)
Storage/transport temperature range -40°C to +70°C (-40°F to +158°F)
Max. permissible value for relative humidity (non-condensing) 4% to 100%
Maximum operating altitude above mean sea level 3000 m
Type designation I-BOX-40



Quick and easy to install

With its reduced weight, the Sunny Boy can be installed quickly while taking up minimal space. The Sunny Boy can be commissioned quickly via smartphone or tablet thanks to its web interface.

  • One-person installation due to low weight of 17.5 kg
  • Compact design through minimum space requirements
  • Quick installation thanks to external connections
  • Intuitive commissioning and local monitoring via a smartphone or tablet




Intelligent optimization of energy yield

Established product features and integrated software solutions will provide yield optimization throughout the system’s entire service life. Even in shading. SMA ShadeFix is a proprietary inverter software that optimizes energy yield in nearly every situation. SMA Smart Connected inverter monitoring offers enhanced safety by detecting errors at an early stage and automatically reporting them to the installer.

  • SMA ShadeFix is an integrated software for yield optimization
  • Dynamic active power limitation means direct use of excess energy and less power from the grid
  • Automatic inverter monitoring via SMA Smart Connected
  • System data visualization via Sunny Portal and Sunny Places
  • Local visualization via Smart Inverter Screen

Flexibly expandable anytime

With the Sunny Boy, PV system operators can ensure that their PV system always generates maximum yields. If greater use of solar power is made in your own home, intelligent energy management and SMA storage solutions can be added at any time to systems with the Sunny Boy.








Investment Security Included

With SMA Smart Connected, SMA offers free and automatic inverter monitoring that helps installers to provide customers with a quick, targeted service. If an inverter fails, SMA proactively informs the PV system owner and the installer. In this way, PV system owners and installers benefit from minimized diagnosis and downtime. If it is necessary to replace the inverter, SMA sends a replacement device fast and free of charge.






SMA Smart Connected - How it Works

Activation of SMA Smart Connected

During registration of the system in Sunny Portal, you, as the installer, activate SMA Smart Connected and thus start automatic inverter monitoring by SMA.



Automatic inverter monitoring

SMA automatically checks the inverter for anomalies around-the-clock during operation. You and your customers benefit from SMA's many years of experience.



Proactive communication

After a fault has been diagnosed and analyzed, SMA informs the installer and PV system operator immediately by email. Everyone is thus optimally prepared for the troubleshooting process ensuring minimum downtimes and reducing outlay and costs. The regular power reports also provide the installer with valuable information about the overall system.



Replacement Service

If a replacement device is necessary, SMA automatically supplies a new inverter within one to three days of the fault diagnosis. As the installer, you can contact the PV system operator of your own accord and replace the inverter immediately.



Performance Service

SMA compensates PV system owners if the replacement inverter cannot be delivered within three days.

SMA Smart Connected is available in AU, AT, BE, CH, DE, ES, FR, IT, LU, NL, UK

Download datasheet:

Xin vui lòng liên hệ 0848 005 777 để nhận thêm thông tin chính sách thương mại của sản phẩm
