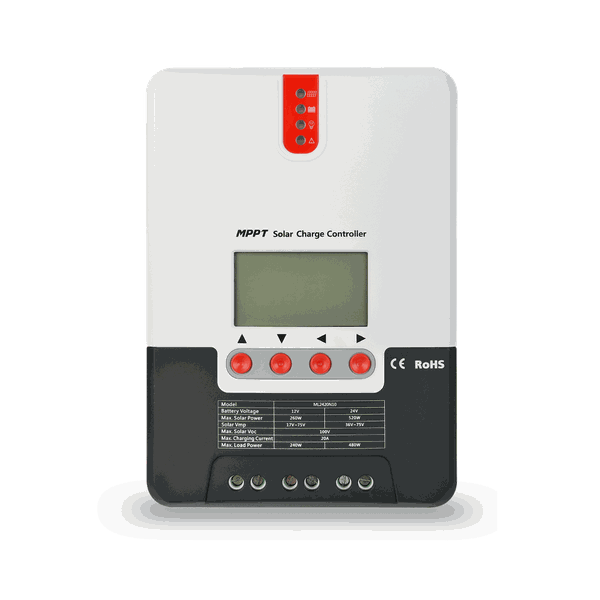

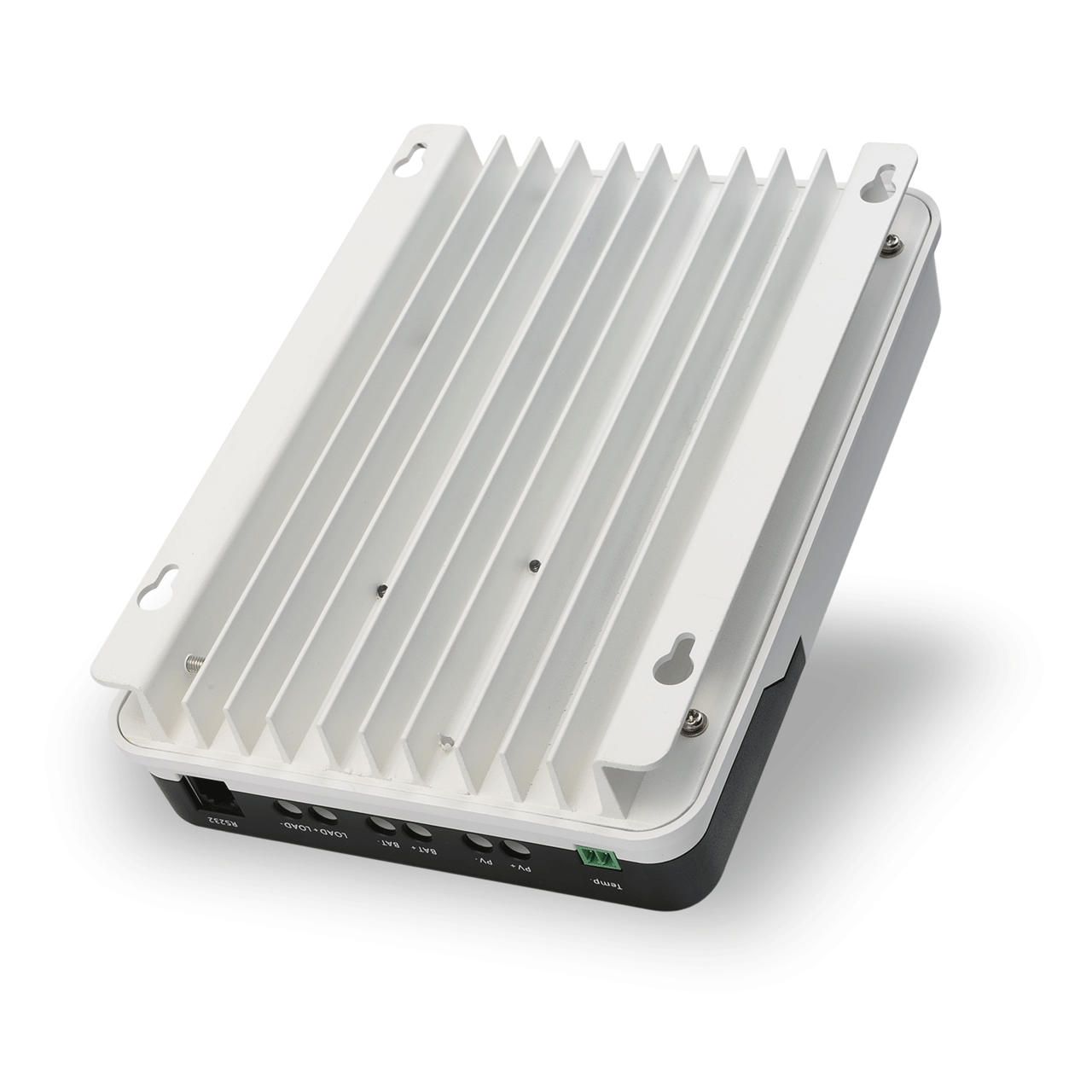

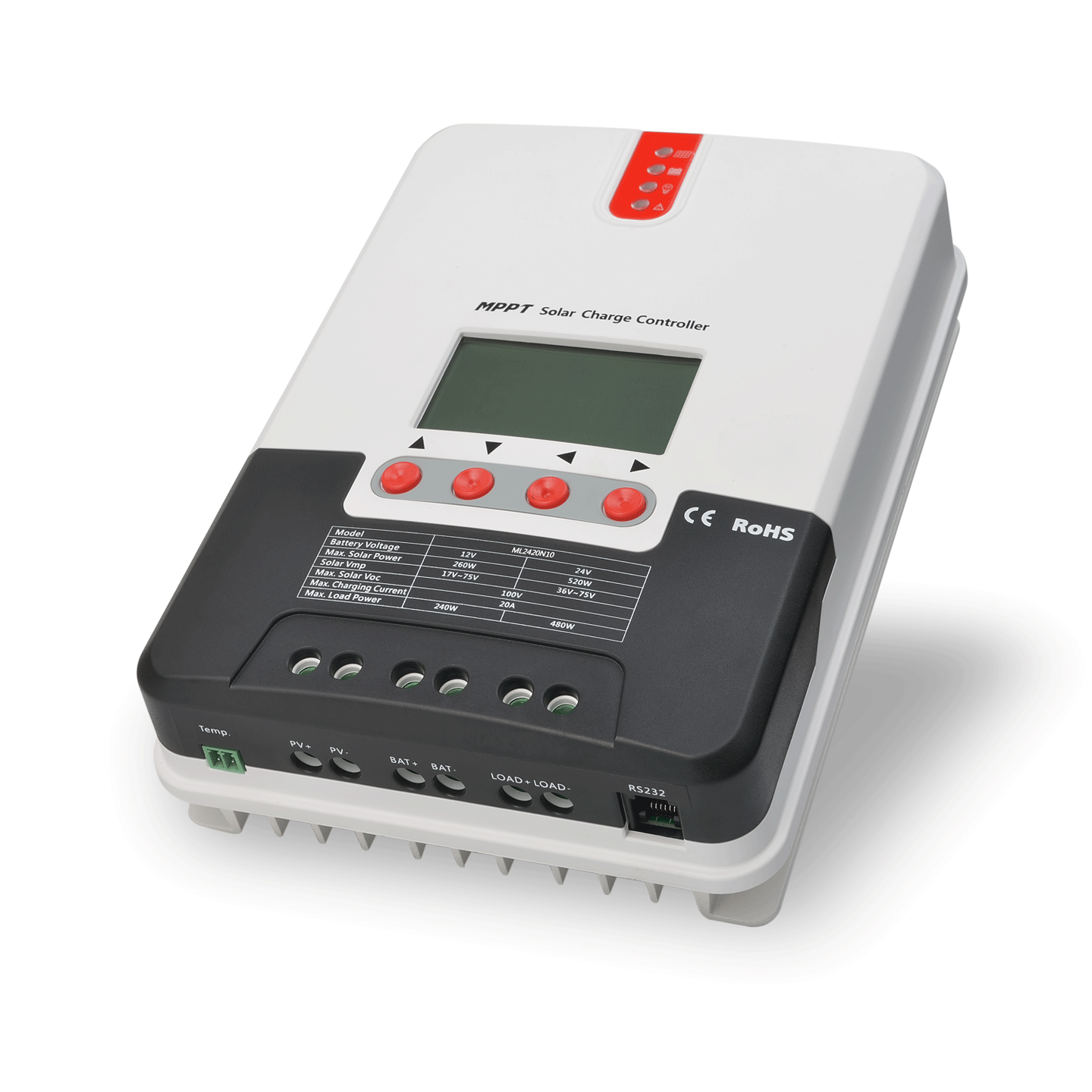

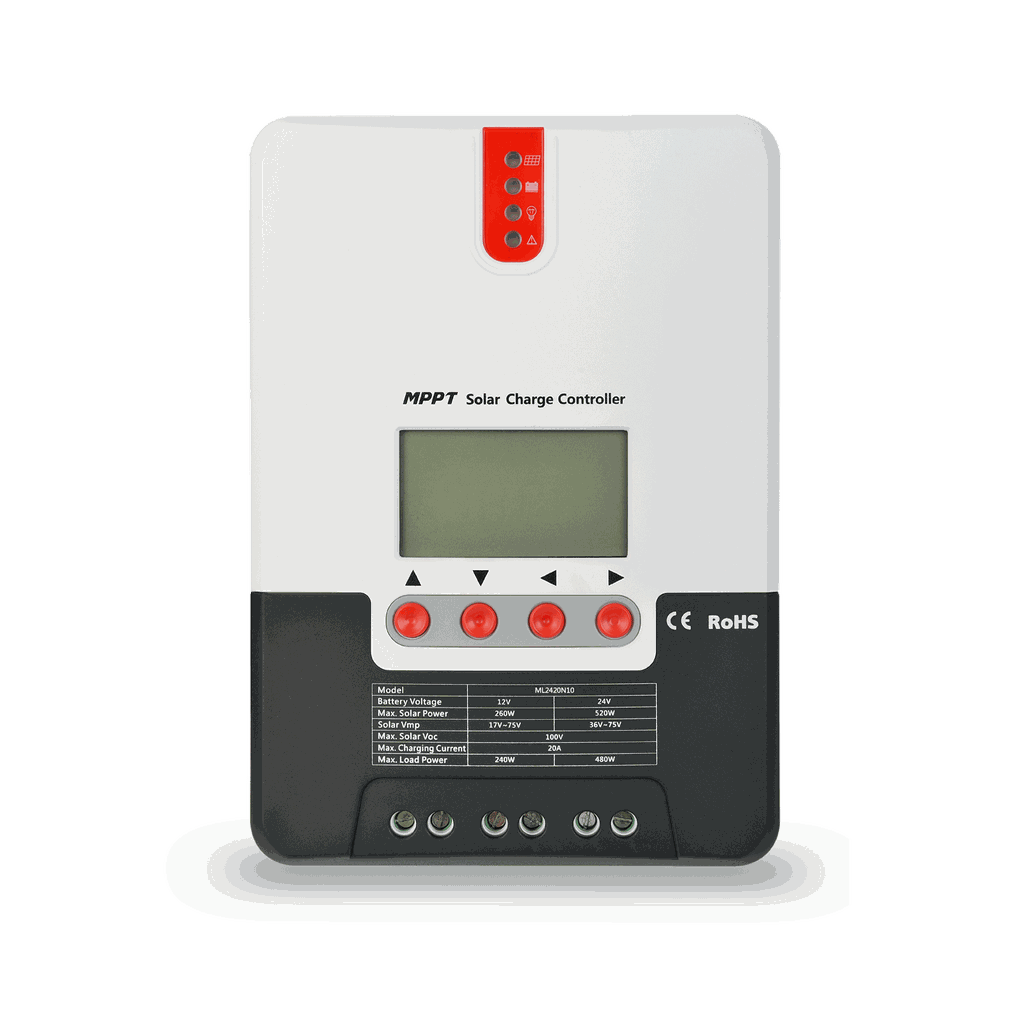

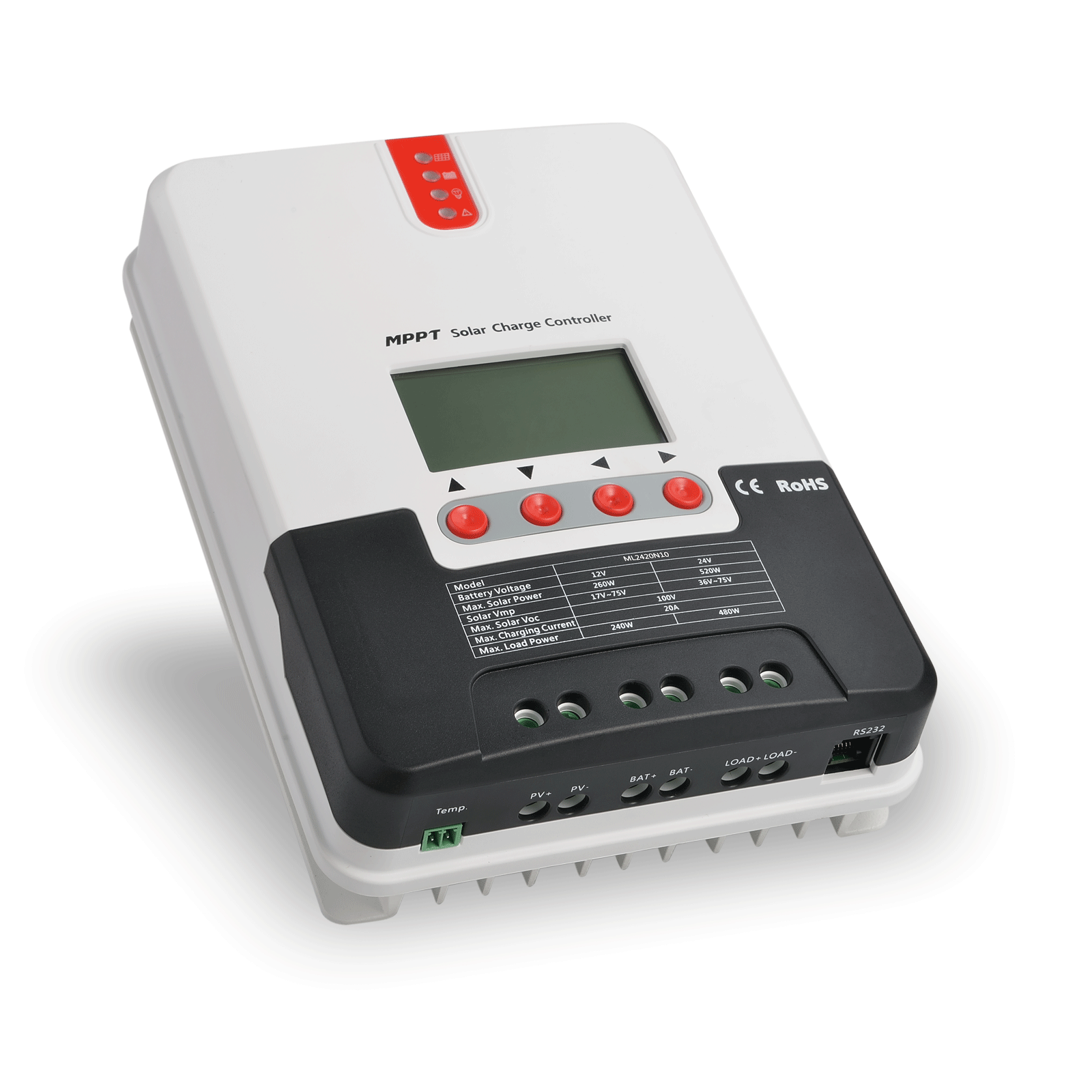

MPPT Solar Charge Controller ML2420/30/40

Thương hiệu: Thien Nang

Tình trạng: Còn hàng

Liên hệ
1. With the PowerCatcher MPPT technology, the controller is able to track the maximum power point of solar panels even in a complex environment. It has higher response speed and tracking efficiency compared with those controllers with traditional MPPT technology. 2. The maximum power point tracking algorithm can significantly improve the energy utilization efficiency of photovoltaic systems. The charging efficiency is 15% to 20% higher than the conventional PWM method. 3. Automatic charging voltage regulation function: When there is battery open circuit or lithium battery BMS overcharge protection, the controller battery terminal will output at the rated charging voltage value. 4. MPPT tracking...

Vận chuyển

Hỗ trợ vận chuyển tuỳ theo thoả thuận đơn hàng

Thanh toán nhanh

Hỗ trợ thanh toán tiền mặt, thẻ visa tất cả các ngân hàng

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Uy tín thương hiệu

Thiên Năng Tecch là thương hiệu được yêu thích và lựa chọn

1. With the PowerCatcher MPPT technology, the controller is able to track the maximum power point of solar panels even in a complex environment. It has higher response speed and tracking efficiency compared with those controllers with traditional MPPT technology.

2. The maximum power point tracking algorithm can significantly improve the energy utilization efficiency of photovoltaic systems. The charging efficiency is 15% to 20% higher than the conventional PWM method.

3. Automatic charging voltage regulation function: When there is battery open circuit or lithium battery BMS overcharge protection, the controller battery terminal will output at the rated charging voltage value.

4. MPPT tracking efficiency is up to 99.9%.

5. Advanced digital power technology raises the circuit energy conversion efficiency to 98%.

6. Support charging lithium batteries, gel batteries, sealed batteries and vented batteries, etc.

7. The controller features a limited current charging mode. When the solar panel power exceeds a certain level and charging current is larger than the rated current, the controller will automatically lower the charging power and bring the charging current to the rated level.

8. Support automatic identification of lead-acid battery voltage.

9. The controller can be connected with LCD screen or Bluetooth module so that users can not only check operating data and status, but also modify the controller parameters.

10. The controller is available for standard Modbus protocol and meets different communication needs.

11. The controller has an overheat protection mechanism. When the temperature exceeds the set value, the charging current will decline in linear proportion and discharging will be shut off so as to curb the temperature rise of the controller and keep the controller from being damaged by overheat.

12. Featuring a temperature compensation function, the controller can automatically adjust charging and discharging parameters in order to extend the lifespan of battery.

13. Solar panel short circuit protection, battery open circuit protection and TVS lightening protection etc.

Parameter

Value

Model

ML2420

ML2430

ML2440

System voltage

12V/24VAuto

No-load loss

0.7 W to 1.2W

Battery voltage

9V to 35V

Max. solar input voltage

100V(25℃) 90V(-25℃)

Max. power point voltage range

Battery Voltage+2V to 75V

Rated charging current

20A

30A

40A

Rated load current

20A

Max. capacitive load

capacity

10000uF

Max. photovoltaic

systerm  input power

260W/12V

520W/24V

400W/12V

800W/24V

520W/12V

1040W/24V

Conversion efficiency

≤98%

MPPT tracking efficiency

>99%

Temperature

compensation factor

-3mv/℃/2V(default)

Operating temperature

-35℃  to +45℃

Protection degree

IP32

Weight

1.4Kg

2Kg

2Kg

Communication method

RS232

Altitude

≤ 3000m

Product dimensions

210*151*59.5mm

238*173*72.5mm

238*173*72.5mm
