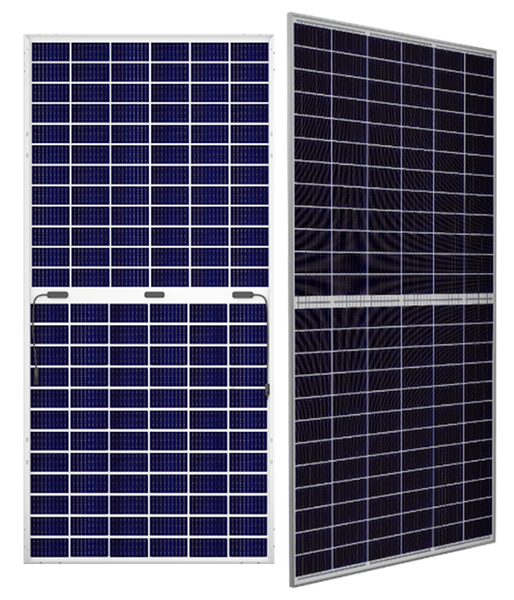

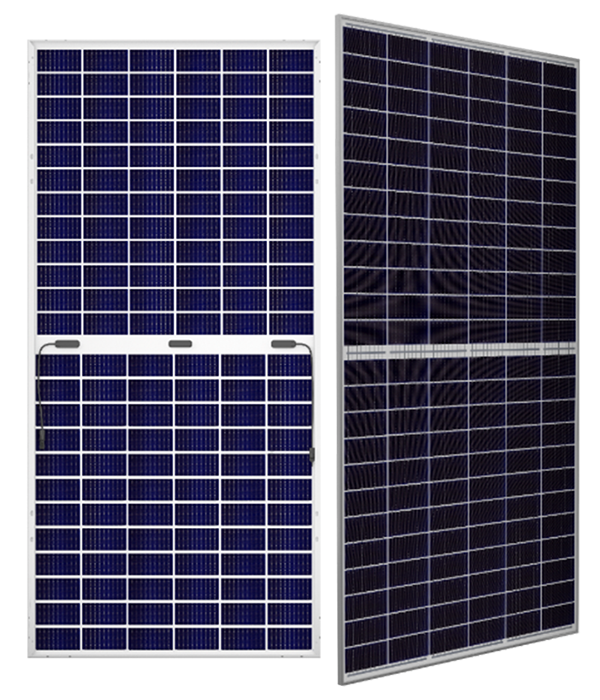

Tấm pin Canadian HiKu Bifacial High Power Dual Cell PERC Module

Thương hiệu: Canadian

Tình trạng: Còn hàng

Liên hệ
  • High efficiency module exceeding 455 W
  • 144 / 132 / 120 dual cell + poly & mono PERC technology
  • Power range 330 ~ 455 W
  • Low power loss in cell connection Enhanced reliability
  • Low NMOT: 42 ± 3 °C
  • LID + LeTID less than 2.0%
  • Lower hot spot temperature
  • Better shading tolerance CELL
  • 166 x 83 mm Larger cell size and more area to absorb sunlight Higher power output & lower BOS cost ...

Vận chuyển

Hỗ trợ vận chuyển tuỳ theo thoả thuận đơn hàng

Thanh toán nhanh

Hỗ trợ thanh toán tiền mặt, thẻ visa tất cả các ngân hàng

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Uy tín thương hiệu

Thiên Năng Tecch là thương hiệu được yêu thích và lựa chọn

  • Thông số kỹ thuật

  • Chính sách

  • Đánh giá sản phẩm

ELECTRICAL DATA | STC*
  Nominal Max. Power (Pmax) Opt. Operating Voltage (Vmp) Opt. Operating Current (Imp) Open Circuit Voltage (Voc) Short Circuit Current (Isc) Module Efficiency
CS3W-390PB-AG 390 W 38.3 V 10.19 A 46.8 V 10.74 A 17.5%
Bifacial Gain** 5% 410 W 38.3 V 10.71 A 46.8 V 11.28 A 18.3%
10% 429 W 38.3 V 11.21 A 46.8 V 11.81 A 19.2%
20% 468 W 38.3 V 12.23 A 46.8 V 12.89 A 20.9%
30% 507 W 38.3 V 13.25 A 46.8 V 13.96 A 22.7%
CS3W-395PB-AG 395 W 38.5 V 10.26 A 47 V 10.82 A 17.7%
Bifacial Gain** 5% 415 W 38.5 V 10.78 A 47 V 11.36 A 18.6%
10% 435 W 38.5 V 11.3 A 47 V 11.9 A 19.5%
20% 474 W 38.5 V 12.31 A 47 V 12.98 A 21.2%
30% 513 W 38.5 V 13.34 A 47 V 14.07 A 23.0%
CS3W-400PB-AG 400 W 38.7 V 10.34 A 47.2 V 10.9 A 17.9%
Bifacial Gain** 5% 420 W 38.7 V 10.86 A 47.2 V 11.45 A 18.8%
10% 440 W 38.7 V 11.37 A 47.2 V 11.99 A 19.7%
20% 480 W 38.7 V 12.41 A 47.2 V 13.08 A 21.5%
30% 520 W 38.7 V 13.44 A 47.2 V 14.17 A 23.3%
CS3W-405PB-AG 405 W 38.9 V 10.42 A 47.4 V 10.98 A 18.1%
Bifacial Gain** 5% 425 W 38.9 V 10.94 A 47.4 V 11.53 A 19.0%
10% 445 W 38.9 V 11.46 A 47.4 V 12.08 A 19.9%
20% 486 W 38.9 V 12.5 A 47.4 V 13.18 A 21.8%
30% 527 W 38.9 V 13.56 A 47.4 V 14.27 A 23.6%
CS3W-410PB-AG 410 W 39.1 V 10.49 A 47.6 V 11.06 A 18.3%
Bifacial Gain** 5% 431 W 39.1 V 11.03 A 47.6 V 11.61 A 19.3%
10% 451 W 39.1 V 11.54 A 47.6 V 12.17 A 20.2%
20% 492 W 39.1 V 12.59 A 47.6 V 13.27 A 22.0%
30% 533 W 39.1 V 13.64 A 47.6 V 14.38 A 23.9%
CS3W-415PB-AG 415 W 39.3 V 10.56 A 47.8 V 11.14 A 18.6%
Bifacial Gain** 5% 436 W 39.3 V 11.10 A 47.8 V 11.70 A 19.5%
10% 457 W 39.3 V 11.63 A 47.8 V 12.25 A 20.5%
20% 498 W 39.3 V 12.67 A 47.8 V 13.37 A 22.3%
30% 540 W 39.3 V 13.75 A 47.8 V 14.48 A 24.2%

* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C.

** Bifacial Gain: The additional gain from the back side compared to the power of the front side at the standard test condition. It depends on mounting (structure, height, tilt angle etc.) and albedo of the ground
ELECTRICAL DATA | NMOT*
  Nominal Max. Power (Pmax) Opt. Operating Voltage (Vmp) Opt. Operating Current (Imp) Open Circuit Voltage (Voc) Short Circuit Current (Isc)
CS3W-390PB-AG 292 W 35.8 V 8.15 A 44.1 V 8.66 A
CS3W-395PB-AG 295 W 36.0 V 8.21 A 44.3 V 8.72 A
CS3W-400PB-AG 299 W 36.2 V 8.27 A 44.5 V 8.79 A
CS3W-405PB-AG 303 W 36.3 V 8.33 A 44.7 V 8.85 A
CS3W-410PB-AG 307 W 36.5 V 8.39 A 44.8 V 8.92 A
CS3W-415PB-AG 310 W 36.7 V 8.45 A 45.0 V 8.98 A
* Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/m2, spectrum AM 1.5, ambient temperature 20°C, wind speed 1 m/s.

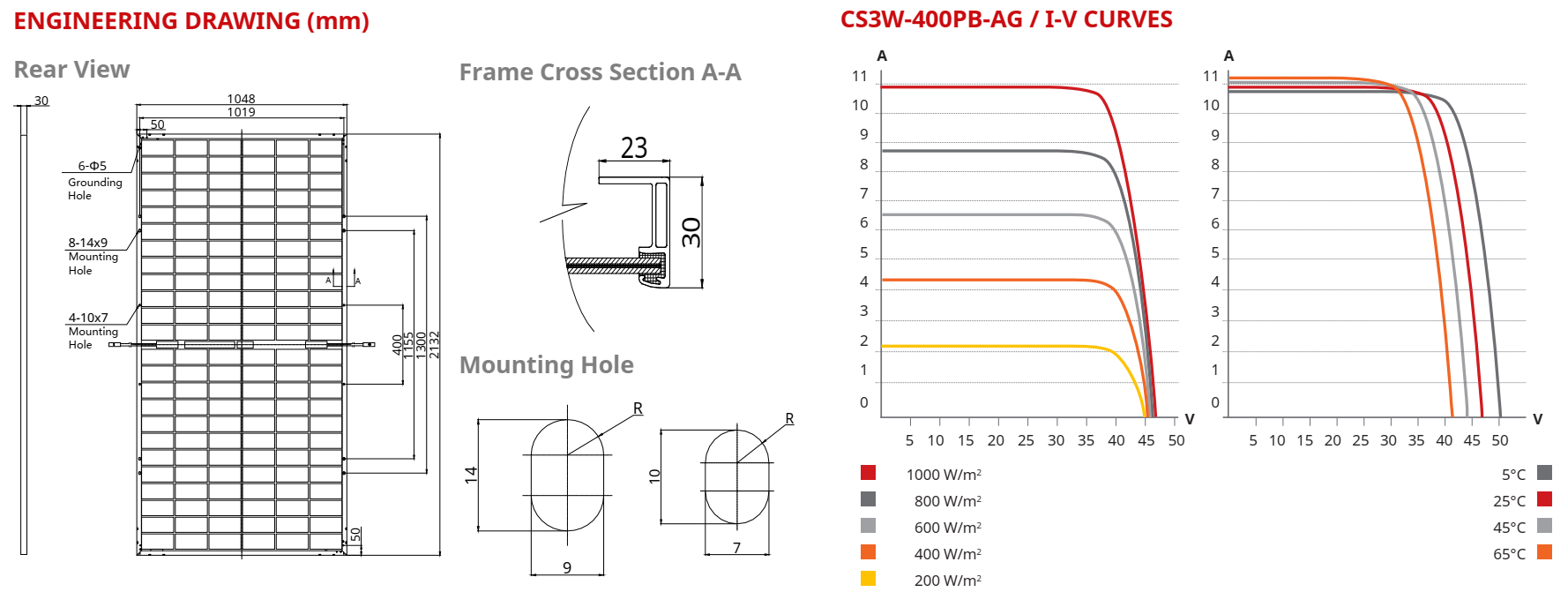

MECHANICAL DATA
Specification Data
Cell Type Poly-crystalline
Cell Arrangement 144 [2 X (12 X 6) ]
Dimensions 2132 ˣ 1048 ˣ 30 mm (83.9 ˣ 41.3 ˣ 1.2 in)
Weight 28.4 kg (62.6 lbs)
Front / Back Glass 2.0 mm heat strengthened glass
Frame Anodized aluminium alloy
J-Box IP68, 3 diodes
Cable 4.0 mm² (IEC), 12 AWG (UL)
Cable Length (Inclu ding Connector) 400 mm (15.7 in) (+) / 280 mm (11.0 in) (-) or customized length*
Connector T4 series or H4 UTX or MC4-EVO2
Per Pallet 33 pieces
Per Container (40' HQ) 660 pieces or 561 pieces (only for US)
* For detailed information, please contact your local Canadian Solar sales and technical representatives.
ELECTRICAL DATA
Operating Temperature -40°C ~ +85°C
Max. System Voltage 1500 V (IEC/UL) or 1000 V (IEC/UL)
Module Fire Performance TYPE 29 (UL 61730)
or CLASS C (IEC61730)
Max. Series Fuse Rating 25 A
Application Classification Class A
Power Tolerance
Power Bifaciality* 70 %
* Power Bifaciality = Pmaxrear / Pmaxfront, both Pmaxrear and Pmaxfront are tested under STC, Bifacia lity Tolerance: ± 5 %
TEMPERATURE CHARACTERISTICS
Specification Data
Temperature Coefficient (Pmax) -0.36 % / °C
Temperature Coefficient (Voc) -0.28 % / °C
Temperature Coefficient (Isc) 0.05 % / °C
Nominal Module Operating Temperature 41 ± 3°C

High efficiency module exceeding 455 W

· 144 / 132 / 120 dual cell + poly & mono PERC technology · Power range 330 ~ 455 W · Low power loss in cell connection

Enhanced reliability

· Low NMOT: 42 ± 3 °C · LID + LeTID less than 2.0% · Lower hot spot temperature · Better shading tolerance

CELL

· 166 x 83 mm

Larger cell size and more area to absorb sunlight

Higher power output & lower BOS cost

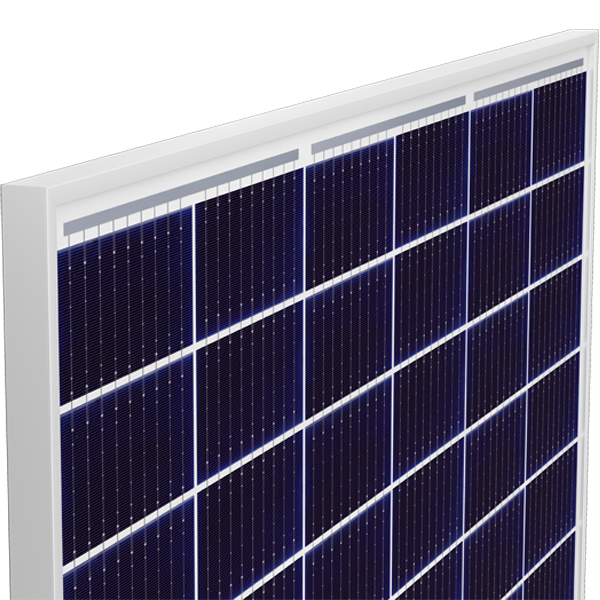

FRAME

· 40 mm anodized aluminium alloy:

Robust protection

· Reserved mounting holes:

Easy installation

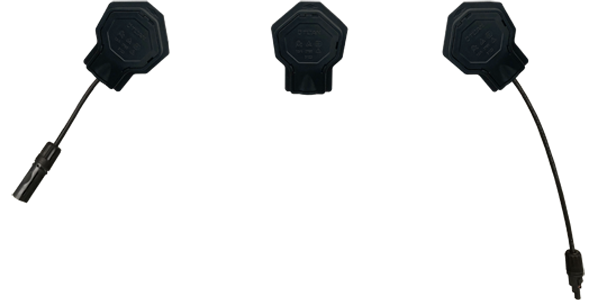

JUNCTION BOX

·  IP68 split junction boxes:

Better heat dissipation & higher safety

CABLE

· Optimised cable length: Simplified wire fix & reduced energy loss in cable



Higher module wattage

  • 166 mm wafer + 156 dual cell + PERC technology
  •  Module front side power up to 490W
  • 29.6% more energy yield in the lifetime



Lower BOS cost and LCOE

  • 11.5% LCOE reduction because of higher energy yield and lower system cost
  • Compatible with mainstream trackers



Enhanced reliability

  • Up to 50% lower degradation LID / LeTID mitigation
  • Lower hot spot temperature
  • Better shading tolerance



Download datasheet:
