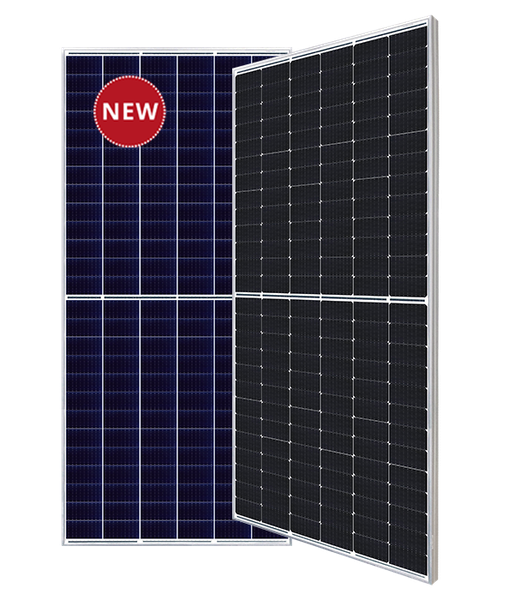

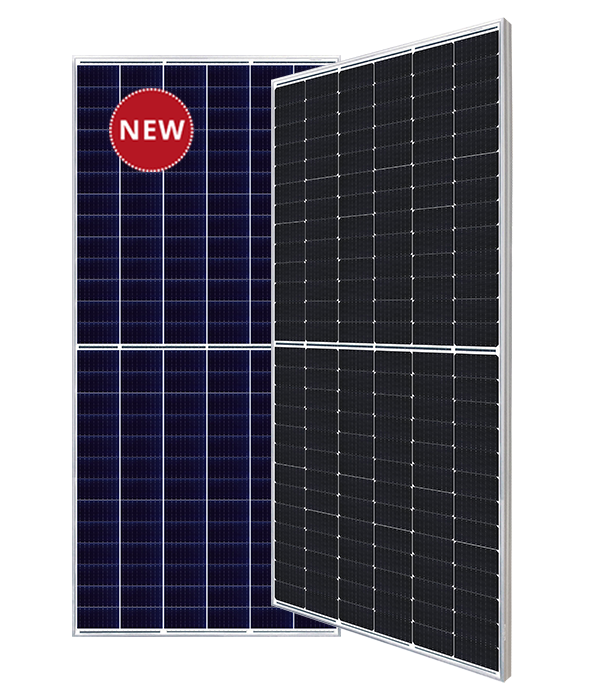

Tấm Pin Canadian HiKu5 High Power Dual Cell PERC Module

Thương hiệu: Canadian

Tình trạng: Còn hàng

Liên hệ

ELECTRICAL DATA | STC* CS3Y 435P 440P 445P 450P 455P 460P Nominal Max. Power (Pmax) 435 W 440 W 445 W 450 W 455 W 460 W Opt. Operating Voltage (Vmp) 41.8 V 42.0 V 42.2 V 42.4 V 42.6 V 42.8 V Opt. Operating Current (Imp) 10.41 A 10.48 A 10.55 A 10.62 A 10.69 A 10.75 A Open Circuit Voltage (Voc) 51.0 V 51.2 V 51.4 V 51.6 V 51.8 V 52.0 V Short Circuit Current (Isc) 11.13 A 11.18 A 11.23 A 11.28 A 11.33 A 11.38 A Module Efficiency 18.4% 18.6% 18.9% 19.1% 19.3% 19.5% Operating Temperature -40°C ~ +85°C Max. System Voltage 1500V (IEC/UL) or 1000V (IEC/UL) Module Fire Performance TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730) Max. Series Fuse Rating 20 A Application Classification Class A Power Tolerance 0 ~ + 10 W * Under Standard Test Conditions (STC) of irradiance of...

Vận chuyển

Hỗ trợ vận chuyển tuỳ theo thoả thuận đơn hàng

Thanh toán nhanh

Hỗ trợ thanh toán tiền mặt, thẻ visa tất cả các ngân hàng

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Uy tín thương hiệu

Thiên Năng Tecch là thương hiệu được yêu thích và lựa chọn

Thông số kỹ thuật
Chính sách
Đánh giá sản phẩm

ELECTRICAL DATA \| STC*
CS3Y	435P	440P	445P	450P	455P	460P
Nominal Max. Power (Pmax)	435 W	440 W	445 W	450 W	455 W	460 W
Opt. Operating Voltage (Vmp)	41.8 V	42.0 V	42.2 V	42.4 V	42.6 V	42.8 V
Opt. Operating Current (Imp)	10.41 A	10.48 A	10.55 A	10.62 A	10.69 A	10.75 A
Open Circuit Voltage (Voc)	51.0 V	51.2 V	51.4 V	51.6 V	51.8 V	52.0 V
Short Circuit Current (Isc)	11.13 A	11.18 A	11.23 A	11.28 A	11.33 A	11.38 A
Module Efficiency	18.4%	18.6%	18.9%	19.1%	19.3%	19.5%
Operating Temperature	-40°C ~ +85°C
Max. System Voltage	1500V (IEC/UL) or 1000V (IEC/UL)
Module Fire Performance	TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
Max. Series Fuse Rating	20 A
Application Classification	Class A
Power Tolerance	0 ~ + 10 W
* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell tempe rature of 25°C.

ELECTRICAL DATA \| NMOT*
CS3Y	435P	440P	445P	450P	455P	460P
Nominal Max. Power (Pmax)	324 W	328 W	331 W	335 W	339 W	342 W
Opt. Operating Voltage (Vmp)	38.9 V	39.1 V	39.3 V	39.5 V	39.6 V	39.8 V
Opt. Operating Current (Imp)	8.33 A	8.39 A	8.43 A	8.49 A	8.57 A	8.60 A
Open Circuit Voltage (Voc)	47.9 V	48.1 V	48.3 V	48.5 V	48.7 V	48.8 V
Short Circuit Current (Isc)	8.98 A	9.02 A	9.06 A	9.10 A	9.14 A	9.18 A
* Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/m2, spectrum AM 1.5, ambient temperature 20°C, wind speed 1 m/s

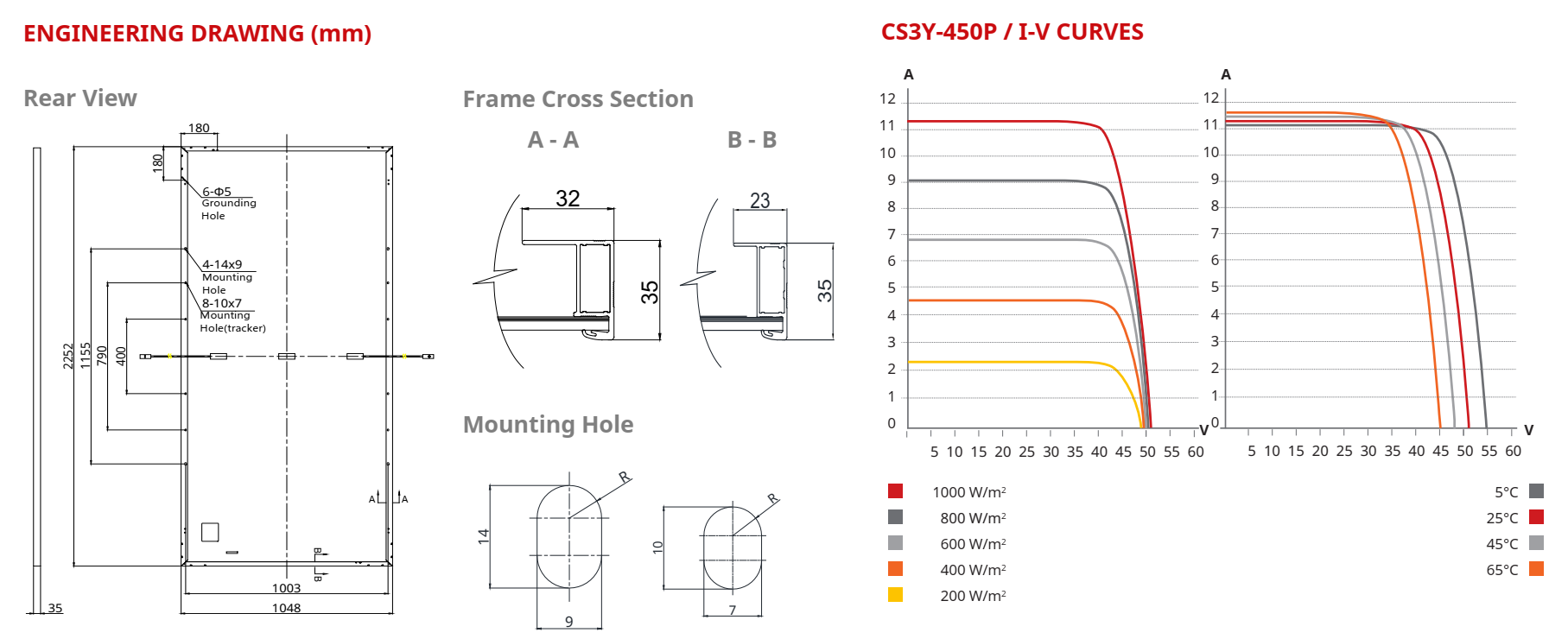

MECHANICAL DATA
Specification	Data
Cell Type	Poly-crystalline
Cell Arrangement	156 [2 X (13 X 6) ]
Dimensions	2252 X 1048 X 35 mm
(88.7 X 41.3 X 1.38 in)
Weight	25.7 kg (56.7 lbs)
Front Cover	3.2 mm tempered glass
Frame	Anodized aluminium alloy
J-Box	IP68, 3 bypass diodes
Cable	4 mm2 (IEC), 12 AWG (UL)
Cable Length (Including Connector)	410 mm (16.1 in) (+) / 290 mm (11.4in) (-) or customized length*
Connector	T4 series or H4 UTX or MC4-EVO2
Per Pallet	30 pieces
Per Container (40' HQ)	600 pieces
* For detailed information, please contact your local Canadian Solar sales and

TEMPERATURE CHARACTERISTICS
Specification	Data
Temperature Coefficient (Pmax)	-0.36 % / °C
Temperature Coefficient (Voc)	-0.28 % / °C
Temperature Coefficient (Isc)	0.05 % / °C
Nominal Module Operating Temperature	42 ± 3°C
