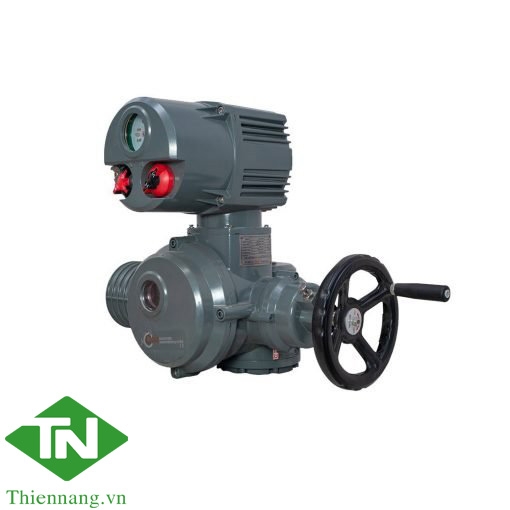

Three Phase Explosion Proof Multi Turn Electrical Actuator

Thương hiệu: Thien Nang

Tình trạng: Còn hàng

Liên hệ
KEY FEATURES Supply Voltage 415 V AC (±10%), 50/60 Hz 380 V AC, 460 V AC (Available on request) Enclosure Explosion Proof – CCOE/PESO Certified Torque Range 100 NM – 2500 NM Manual Over-ride Hand Wheel Type Integral Starter Unit Selector Switches               : Open/Stop/Close Selector Switches               : Auto/Manual or Remote/Local Indicator lamp                     : Open/Close/Error Various Options ON/OFF Type Modulating Control (Signal Input – 4~20 mA / 2~10 V DC) Potentiometer Feedback (4~20 mA) Auxiliary Limit Switches (2 Units – Potential Free) 2 Wire for ON/OFF Operation. Model Number TTM-IN-FLP(EX) | 10 | 20 | 30 | 60 | 90 ATM EX Manufacturing Standards Actuator manufacturing standard IEC/ EN 15714-2(Electrical Actuator for Industrial Valves) Actuator Enclosure Standard- IP 67/68 IS/IEC 60529-2009 (Degree of protection provided by Enclosure) Actuator motor standard IEC-60034-1 (Rotating Electrical Machines) IS-325 (Three Phase Induction Motor) Actuator Mounting Standard ISO 5211

Vận chuyển

Hỗ trợ vận chuyển tuỳ theo thoả thuận đơn hàng

Thanh toán nhanh

Hỗ trợ thanh toán tiền mặt, thẻ visa tất cả các ngân hàng

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Uy tín thương hiệu

Thiên Năng Tecch là thương hiệu được yêu thích và lựa chọn

KEY FEATURES


Supply Voltage
415 V AC (±10%), 50/60 Hz
380 V AC, 460 V AC (Available on request)


Enclosure
Explosion Proof – CCOE/PESO Certified


Torque Range
100 NM – 2500 NM


Manual Over-ride
Hand Wheel Type


Integral Starter Unit
Selector Switches               : Open/Stop/Close
Selector Switches               : Auto/Manual or Remote/Local
Indicator lamp                     : Open/Close/Error


Various Options
ON/OFF Type
Modulating Control (Signal Input – 4~20 mA / 2~10 V DC)
Potentiometer Feedback (4~20 mA)
Auxiliary Limit Switches (2 Units – Potential Free)
2 Wire for ON/OFF Operation.


Model Number
TTM-IN-FLP(EX) | 10 | 20 | 30 | 60 | 90

ATM EX


Manufacturing Standards
Actuator manufacturing standard
IEC/ EN 15714-2(Electrical Actuator for Industrial Valves)
Actuator Enclosure Standard- IP 67/68
IS/IEC 60529-2009
(Degree of protection provided by Enclosure)
Actuator motor standard
IEC-60034-1 (Rotating Electrical Machines)
IS-325 (Three Phase Induction Motor)
Actuator Mounting Standard
ISO 5211

Xin vui lòng liên hệ 0848 005 777 để nhận thêm thông tin chính sách thương mại của sản phẩm
