TopWorx™ K-Series Switchboxes High Performance

Thương hiệu: Emerson

Tình trạng: Còn hàng

Liên hệ

Minimal Maintenance Required

Compact and robust product solution that conforms to the latest European Directives. The use of quality materials and attention to detailed design and manufacturing has resulted in an excellent reputation for reliability

Vận chuyển

Hỗ trợ vận chuyển tuỳ theo thoả thuận đơn hàng

Thanh toán nhanh

Hỗ trợ thanh toán tiền mặt, thẻ visa tất cả các ngân hàng

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Uy tín thương hiệu

Thiên Năng Tecch là thương hiệu được yêu thích và lựa chọn

Thông số kỹ thuật
Chính sách
Đánh giá sản phẩm

Solid Enclosures for Every Environment
• Aluminum, Composite, Stainless
• Up to four conduit entries (English or Metric)
• O-ring seals everywhere

Engineered for Dependability
• Available in Aluminum or 316 Stainless Steel
• Unique coating for hazardous locations with Aluminum option
• Red coating for Explosion Proof/Flameproof installations
• Blue coating for Intrinsically Safe installations, including blue terminal strip
• Aluminum enclosures are fully anodized
• RoHS 2 Compliant.

Environmental Extremes
• Operating temperatures from -76°F/-60°C to 248°F/120°C
• IP66/67 standard rating
• IP68 to 30 or 150 meters on request
• Type 4, 4X, 6, 6P

316 Stainless Steel Shaft and Fasteners
• VDI/VDE 3845 F05 Mounting
• Special lever options available for linear applications

Visual Display
• Impact resistance polycarbonate
• Static free indicators
• No need to clean with a damp cloth in Hazardous Locations
• Flat-top Options

K1 AND K2 SERIES

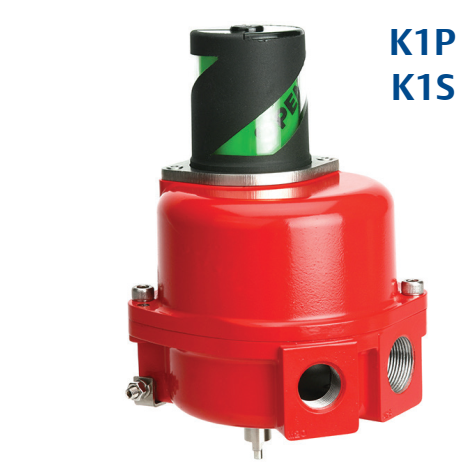

K1P = Aluminum

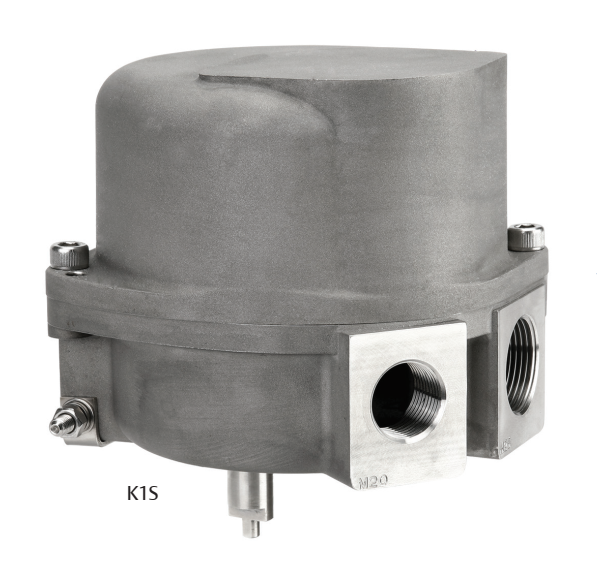

K1S = 316 Stainless Steel
Class I & II, Div 1 & 2
Class I, Zone 1, Ex/AEx d IIC T6/T4
Class II, Zone 21, Ex//AEx tb/tD IIIC
Ex ia IIC T6/T4
Ex d IIC T6/T4
Ex tb IIIC
-50°C up to +100°C
Type 4X, IP66/67/68
Conduit Entries: (2)1/2 NPT or M20
Available with (2) switches or a
4-20mA analog or HART transmitter
Unique two point cover reduces
commissioning time

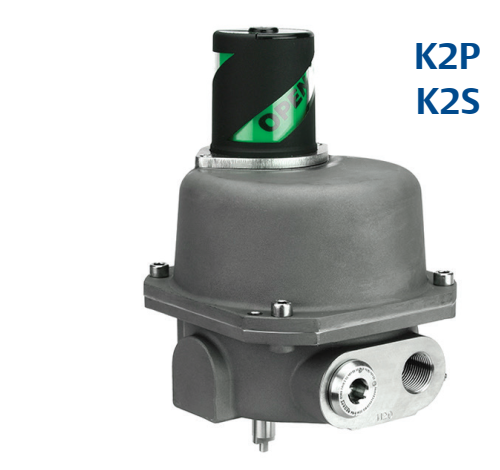

K2P = Aluminum
K2S = 316 Stainless Steel
Class I & II, Div 1 & 2
Class I, Zone 1, Ex/AEx d IIC T6/T4
Class II, Zone 21, Ex//AEx tb/tD
IIIC
Ex ia IIC T6/T4
Ex d IIC T6/T4
Ex tb IIIC
-50°C up to +100°C
Type 4X, IP66/67/68
Conduit Entries: (4)1/2NPT,
3/4NPT, M20 or M25
Available with (4) switch or (2)
switches and analog or HART
transmitter
