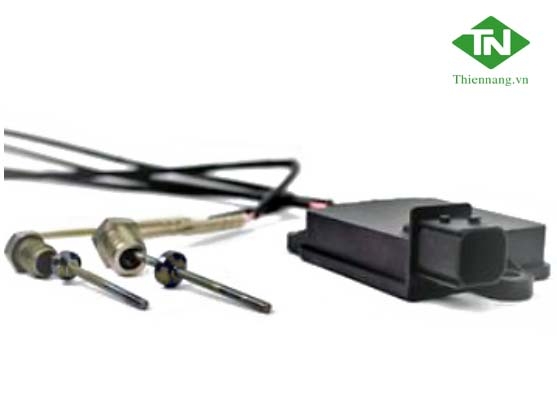

High Temperature Smart Thermocouple EGT Sensor

Thương hiệu: Emerson

Tình trạng: Còn hàng

Liên hệ

• N-type thermocouple - 3.2mm and other diameters available
• -40°C to 1000°C, 1-4 thermocouple channels
• Smart sensor with high accuracy electronics and fast response
• Digital and analog output
• -40°C to 150°C electronics ambient
• Improved sensor temperature tolerance

Vận chuyển

Hỗ trợ vận chuyển tuỳ theo thoả thuận đơn hàng

Thanh toán nhanh

Hỗ trợ thanh toán tiền mặt, thẻ visa tất cả các ngân hàng

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Uy tín thương hiệu

Thiên Năng Tecch là thương hiệu được yêu thích và lựa chọn

Product Overview
The improving global emissions and efficiency standards petition the need for monitoring exhaust temperature for after treatment purposes. Recognizing this need, Therm-O-Disc is expanding the temperature sensing offering to help the automotive industry in meeting these emissions requirements.

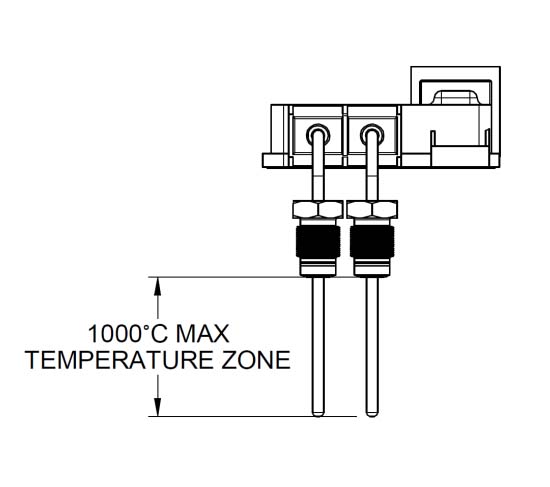

Therm-O-Disc developed this sensor for high temperature exhaust applications reaching up to 1000°C. Thermocouple sensors are designed for long term durability needs. Integrated with a highly configurable smart electronic module, this EGT sensor will exceed industry performance, providing an optimized solution.

Primary Benefit
• Stability over product lifetime
• Automotive grade electronics performing up to 150°C ambient
• Automotive Industry Standard Communication Stacks for CAN, LIN, and SENT. Diagnostic information available.
• Smaller form factor and high temperature module rating offers multiple installation locations


Temperature Tolerance -40°C < ±10C < 0°C
0°C < ±5C< 650°C
650°C < ±10C < 1000°C
Response Time <13 Sec
N type thermocouple 3.2mm and other diameters available, insulated Type
Electronic Module Working Temperature -40°C to 140°C
Digital output CAN 2.0B Bus, SENT Protocol

Data Output Options
• CAN 2.0B 500K (J1939/optional)
• SENT J2716 (optional)
• LIN J2602 (optional)
• Analog 0-5V (optional - ratiomatric/non ratiomatric
Supply Voltage
• 8VDC - 14VDC (5VDC optional) Sensor Tolerance Including Electronics
• For digital output
o -40°C < ±10°C < 0°C
o 0°C < ±5°C < 650°C
o 650°C < ±10°C < 1000°C

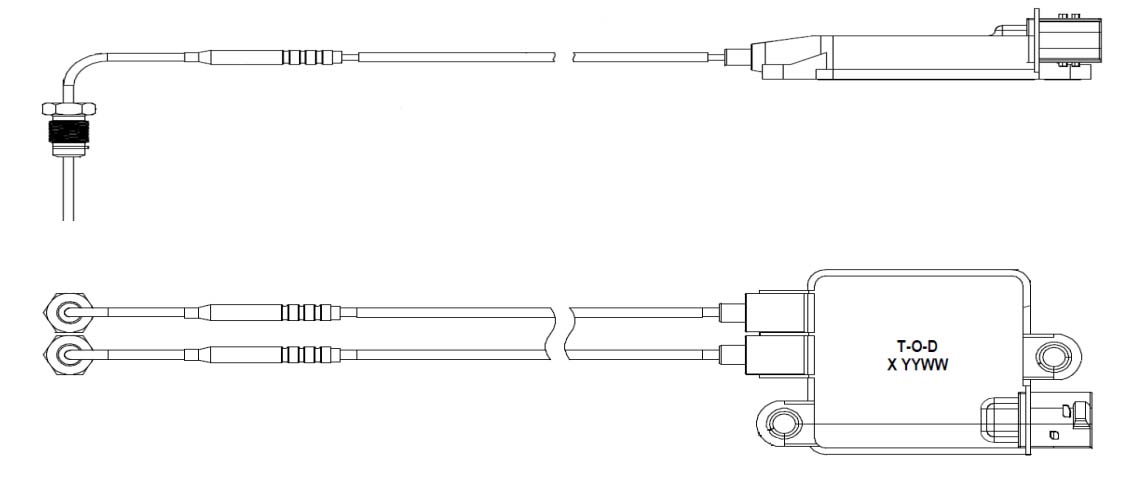

Sheath Materials
• Inconel 600, Fill Ceramic MgO


• 304 SUS Hex nut and washer
• Fittings with pre-applied dry anti-seize are available Extension Wire
• 2x7x0.2 PFA Teflon insulated, available up to 6 feet

• PET+30% GF housing material
• Ultrasonic welded enclosure Connector
• Industrial standard connector interfaces for various communication options mentioned above
