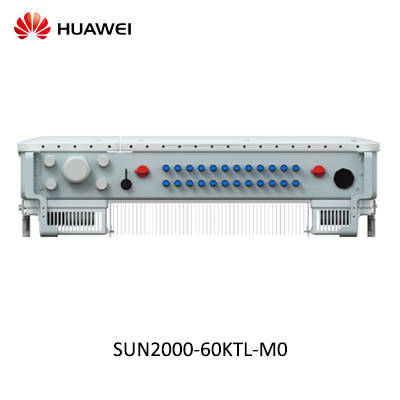

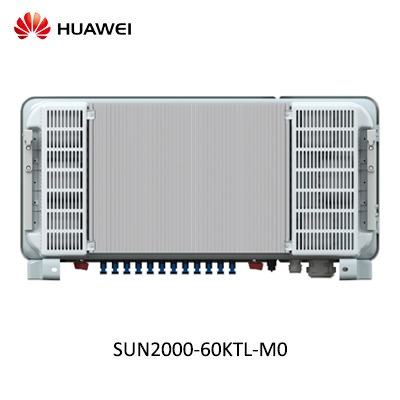

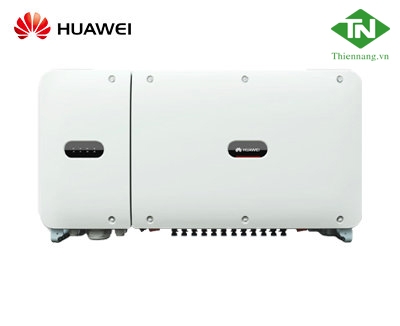

Inverter Huawei smart PV String SUN2000-60KTL-M0

Thương hiệu: Huawei

Tình trạng: Còn hàng

Liên hệ

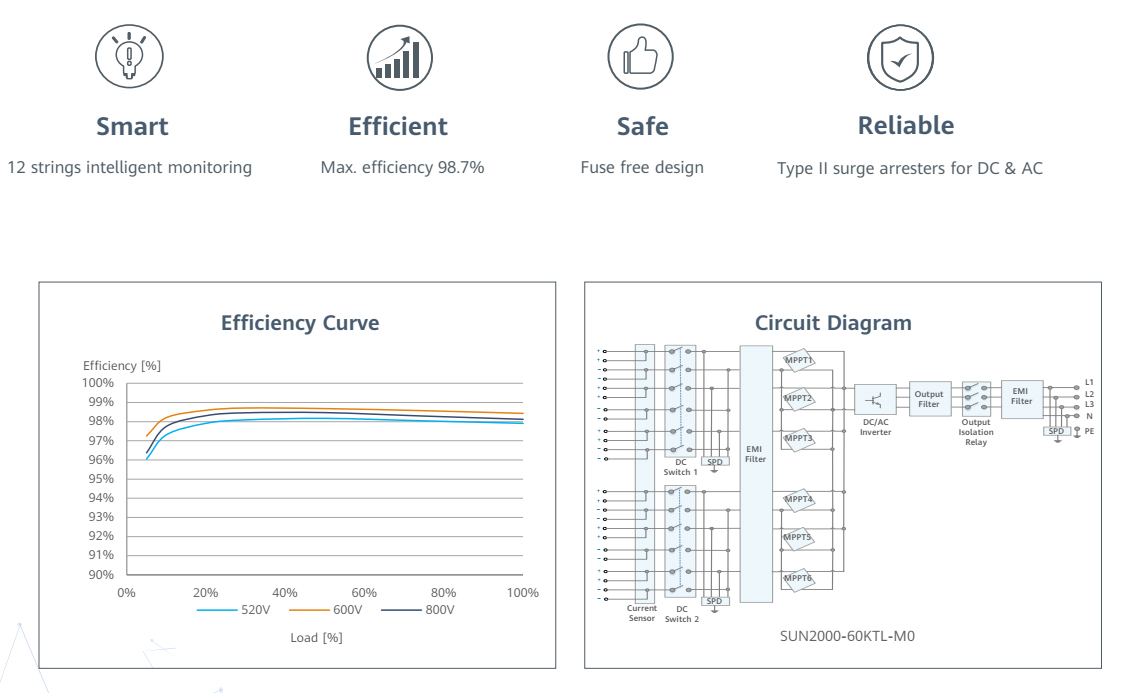

12 strings intelligent monitoring and fast trouble-shooting

Power Line Communication (PLC) supported

Smart I-V Curve Diagnosis supported

Max. efficiency 98.9%, European efficiency 98.7% (@480 V)

6 MPPT per unit, effectively reducing string mismatch

DC switch integrated, safe and convenient for maintenance

Residual Current Monitoring Unit (RCMU) integrated

Natural cooling technology

Type II surge arresters for both DC and AC

Vận chuyển

Hỗ trợ vận chuyển tuỳ theo thoả thuận đơn hàng

Thanh toán nhanh

Hỗ trợ thanh toán tiền mặt, thẻ visa tất cả các ngân hàng

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Uy tín thương hiệu

Thiên Năng Tecch là thương hiệu được yêu thích và lựa chọn

Thông số kỹ thuật
Chính sách
Đánh giá sản phẩm

Technical Specification	SUN2000-60KTL-M0
Efficiency
Max. efficiency	98.9% @480 V; 98.7% @380 V / 400 V
European efficiency
98.7% @480 V; 98.5% @380 V / 400 V
Input
Max. Input Voltage 1	1,100 V
Max. Current per MPPT	22 A
Max. Short Circuit Current per MPPT	30 A
Start Voltage	200 V
MPPT Operating Voltage Range 2	200 V ~ 1,000 V
Rated Input Voltage	600 V @380 Vac / 400 Vac; 720 V @480 Vac
Number of MPP trackers	6
Max. input number per MPP tracker	2
Output
Rated AC Active Power	60,000 W
Max. AC Apparent Power	66,000 VA
Max. AC Active Power (cosφ=1)	66,000 W
Rated Output Voltage	220 V / 380 V, 230 V / 400 V, default 3W + N + PE; 3W + PE optional in settings; 277 V / 480 V, 3W + PE
Rated AC Grid Frequency	50 Hz / 60 Hz
Rated Output Current	91.2 A @380 V, 86.7 A @400 V, 72.2 A @480 V
Max. Output Current	100 A @380 V, 95.3 A @400 V, 79.4 A @480 V
Adjustable Power Factor Range	0.8 leading... 0.8 lagging
Max. Total Harmonic Distortion	＜ 3%
Protection
Input-side Disconnection Device	Yes
Anti-islanding Protection	Yes
AC Overcurrent Protection	Yes
DC Reverse-polarity Protection	Yes
PV-array String Fault Monitoring	Yes
DC Surge Arrester	Type II
AC Surge Arrester	Type II
DC Insulation Resistance Detection	Yes
Residual Current Monitoring Unit	Yes
Communication
Display	LED indicators; WLAN adaptor + FusionSolar APP
RS485	Yes
USB	Yes
Monitoring BUS (MBUS)	Yes (isolation transformer required)
Smart Dongle-4G	Yes
General Data
Dimensions (W x H x D)	1,075 x 555 x 300 mm (42.3 x 21.9 x 11.8 inch)
Weight (with mounting plate)	74 kg (163.1 lb.)
Operating Temperature Range	-25°C ~ 60°C (-13°F ~ 140°F)
Cooling Method	Natural Convection
Max. Operating Altitude	4,000 m (13,123 ft.)
Relative Humidity	0 ~ 100%
DC Connector	Amphenol Helios H4
AC Connector	Waterproof PG Terminal + Terminal Clamp
Protection Degree	IP65
Topology	Transformerless
Nighttime Power Consumption	< 2 W
Standard Compliance (more available upon request)
Certificate	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Grid Connection Standards	IEC 61727, VDE-AR-N4105, VDE 0126-1-1, BDEW, VDE 4120, UTE C 15-712-1, CEI 0-16, CEI 0-21, RD 661, RD 1699, P.O. 12.3, RD 413, EN-50438-Turkey, EN-50438-Ireland, C10/11
