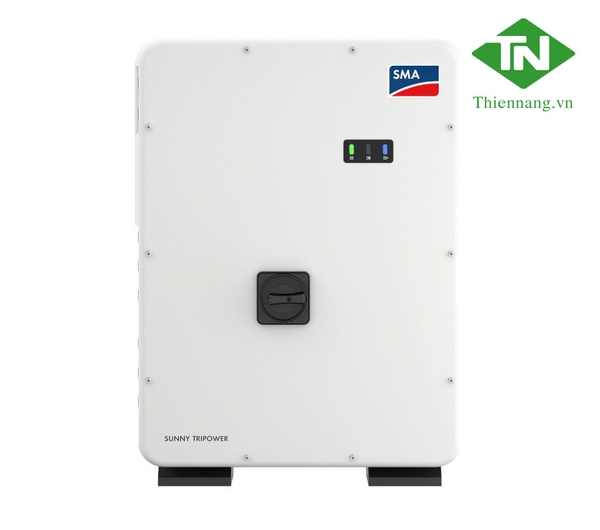

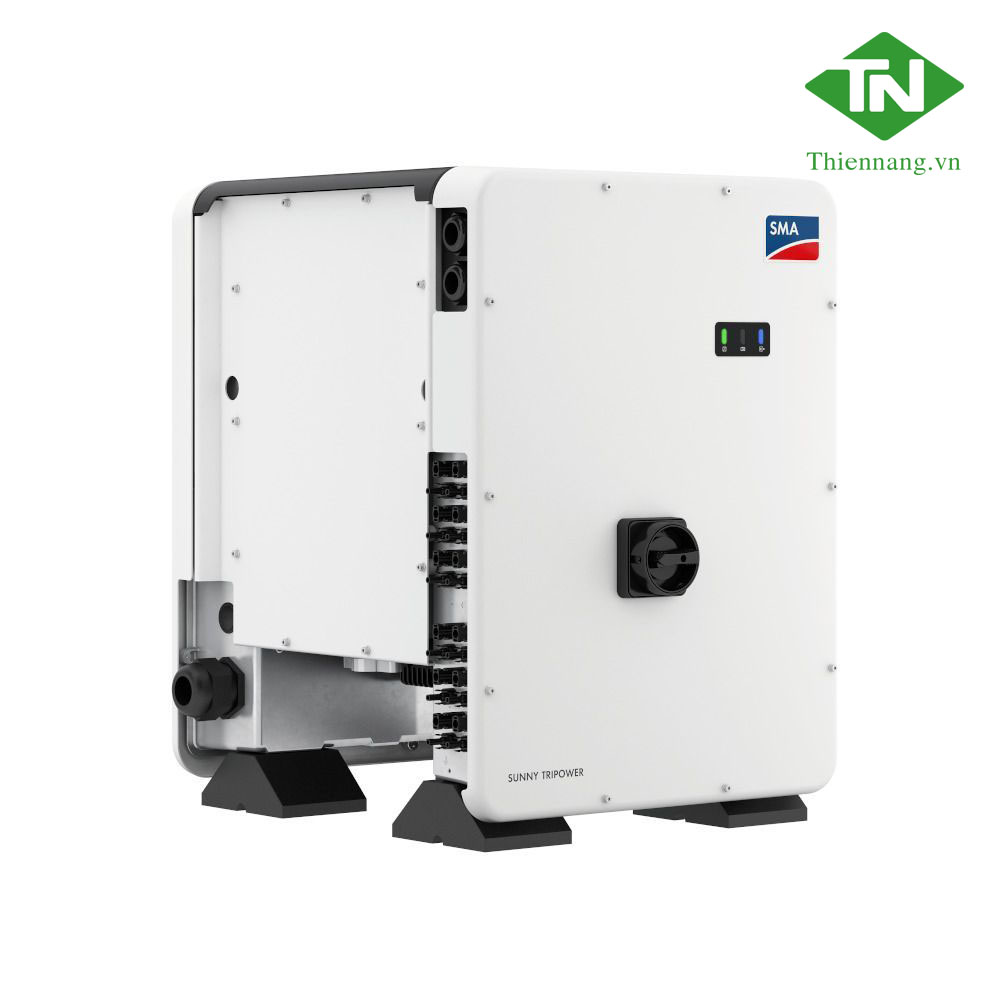

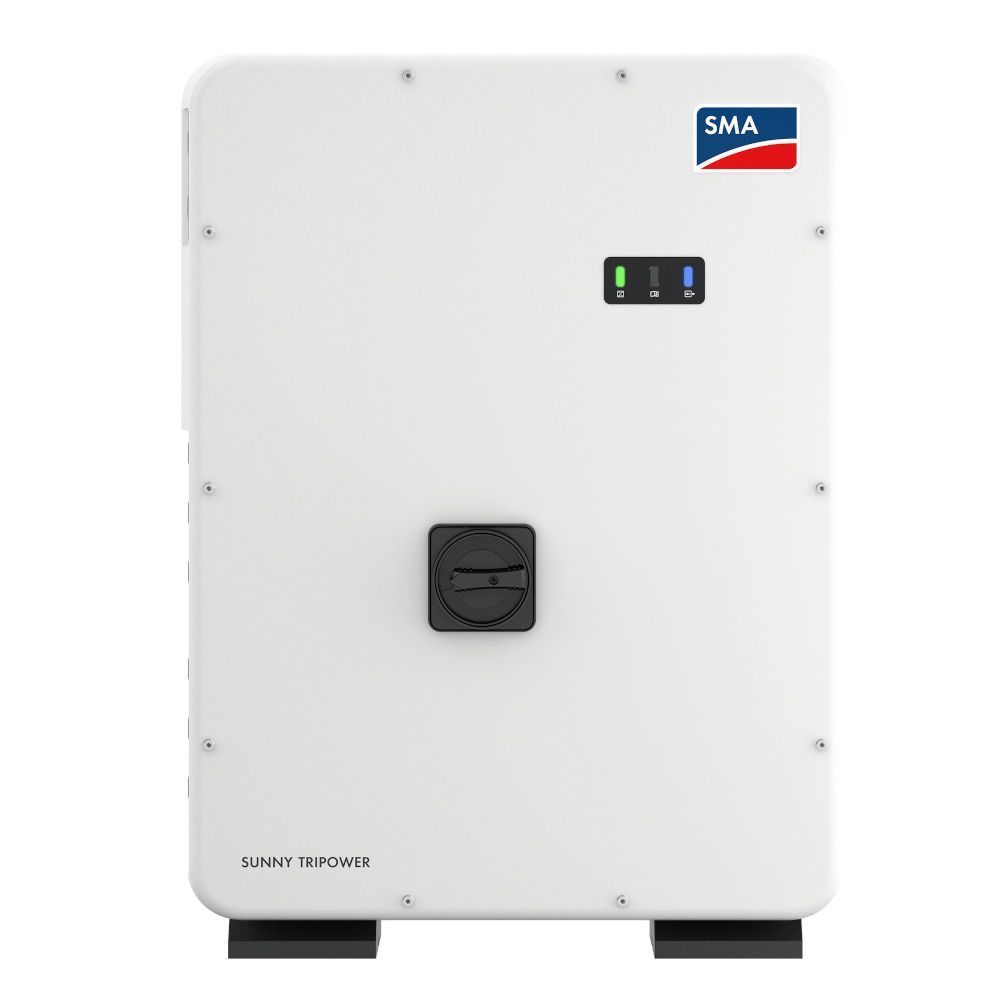

Inverter Hoà lưới SMA Sunny Tripower Core1

Thương hiệu: SMA

Tình trạng: Còn hàng

Liên hệ

Top performance and maximum efficiency thanks to innovative design

Its unique, free-standing design allows the Sunny Tripower CORE1 to be installed 60% faster than other string inverters. The innovative, fully integrated design of the CORE1 ensures low BoS costs, simpler project processes and lower material expenses. It sets new standards for decentralized rooftop and ground-based PV systems and covered parking lots.

Vận chuyển

Hỗ trợ vận chuyển tuỳ theo thoả thuận đơn hàng

Thanh toán nhanh

Hỗ trợ thanh toán tiền mặt, thẻ visa tất cả các ngân hàng

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Uy tín thương hiệu

Thiên Năng Tecch là thương hiệu được yêu thích và lựa chọn

Thông số kỹ thuật
Chính sách
Đánh giá sản phẩm

Up to 60% faster installation of commercial PV systems

The Sunny Tripower CORE1 is the world’s first free-standing string inverter for decentralized rooftop and ground-based PV systems as well as covered parking spaces. The groundbreaking new design allows reductions in installation time of up to 60% and, at the same time, lowers the total cost of ownership (OPEX).

Top performance and maximum efficiency thanks to innovative design

Proven in practice

The CORE1 has proven its value. Thanks to its versatility, it has become the first choice for commercial PV projects, enjoys great popularity and has unlimited delivery capacity.

Scalability for maximum energy yields

With a capacity of 50 kW, it is scalable up to the megawatt range
Up to 150% overdimensioning of PV array
Six independent MPP trackers guarantee optimal energy production for every use, even in shade

Consistently integrated concept

Low balance of system (BoS) costs, simple project processes and low material expenses
Twelve direct string inputs, DC disconnector and optional AC and DC surge protection

Saving costs: GP protection included

Standards-compliant grid and PV system protection (GP protection) in accordance with VDE-AR-N-4105
No external tie switch needed
Significantly lower capital expenditure

OptiCool™ active cooling system

SMA’s intelligent OptiCool™ cooling system is reliable and ensures maximum energy production, even in challenging conditions
Has proved its worth in over 75 GW of installed power worldwide
Safe investment in solar
Lower service cost

Smart Inverter Screen provides fast commissioning and saves time and money

One-click commissioning: scan the QR code and access the Smart Inverter Screen via WLAN
No need to waste time entering login details
“Captive Portal” enables direct access to the home page of the Commissioning Wizard

Ease and comfort with SMA SMART CONNECTED

Free automatic inverter monitoring
Proactive communication in the event of malfunction
Simplified logistics thanks to automatic replacement service
Shorter and plannable servicing

The Future of Commercial PV Systems

From delivery and installation to operation, the Sunny Tripower CORE1 generates widespread savings in logistics, labor, materials and services. With integrated Wi-Fi access for fast commissioning, up-to-date plug-and-play communication and smart grid support functions, PV installations are quicker and easier to complete than ever before.

SUNNY TRIPOWER CORE1 for distributors

Flexible use with just one product
Worldwide platform for universal use
Fewer components and BoS components
Extensive support and service

Reduce Installation and Purchase Price...
SUNNY TRIPOWER CORE1 for EPCs and Developers

Plug-and-play concept
Faster installation and lower labor costs
Reduced material costs
Free tool for system planning

Ensure Top Performance...
SUNNY TRIPOWER CORE1 for energy providers

The lowest LCOE
Optional 24/7 remote monitoring thanks to SMA’s number one rated service team, worldwide
An effective interface for customer monitoring
Intelligent grid management service

Technical Data	Sunny Tripower CORE1
Input (DC)
Max. generator power	75000 Wp STC
Max. input voltage	1000 V
MPP voltage range / rated input voltage	500 V to 800 V / 670 V
Min. input voltage / start input voltage	150 V / 188 V
Max. operating input current / per MPPT	120 A / 20 A
Max. short circuit current per MPPT / per string input	30A / 30A
Number of independent MPPT inputs / strings per MPP input	6 / 2
Output (AC)
Rated power (at 230 V, 50 Hz)	50000 W
Max. apparent AC power	50000 VA
AC nominal voltage	220 V / 380 V 230 V / 400 V 240 V / 415 V
AC voltage range	202 V to 305 V
AC grid frequency / range	50 Hz / 44 Hz to 55 Hz 60 Hz / 54 Hz to 65 Hz
Rated power frequency / rated grid voltage	50 Hz / 230 V
Max. output current / Rated output current	72.5 A / 72.5 A
Output phases / AC connection	3 / 3-(N)-PE
Power factor at rated power / Adjustable displacement power factor	1 / 0.0 leading to 0.0 lagging
THD	< 3%
Protective devices
Input-side disconnection device	●
Ground fault monitoring / grid monitoring	● / ●
DC reverse polarity protection / AC short-cir cuit current capability / galvanically isolated	● / ● / —
All-pole sensitive residual-current monitoring unit	●
Protection class (according to IEC 62109-1) / overvoltage category (according to IEC 62109-1)	I / AC: III; DC: II
AC/DC surge arrester (type 2, type 1/2)	○

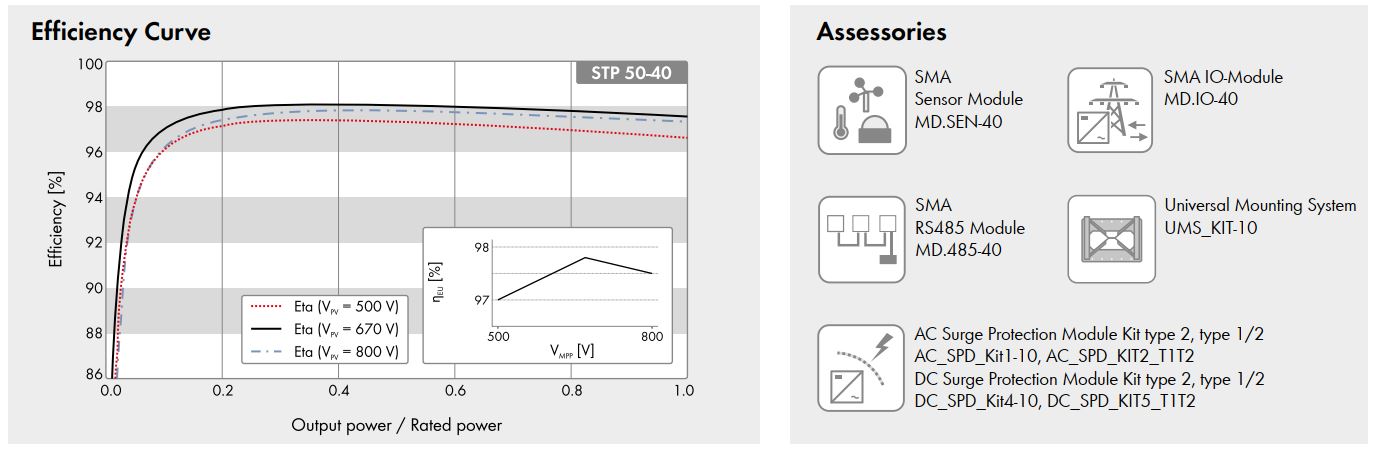

Efficiency
Max. efficiency / European efficiency	98.1% / 97.8%
General data
Dimensions (W/H/D) without feet or DC load break switch	569 mm / 733 mm / 621 mm (22.4 in / 28.8 in / 24.4 in)
Weight	84 kg (185 lb)
Operating temperature range	‒25°C to +60°C (‒13°F to +140°F)
Noise emission (typical)	< 65 dB(A)
Self-consumption (at night)	4.8 W
Topology / Cooling concept	Transformerless / OptiCool
Degree of protection (as per IEC 60529)	IP65
Climatic category (according to IEC 60721-3-4)	4K4H
Max. permissible value for relative humidity (non-condensing)	100%
Features / functions / accessories
DC connection / AC connection	SUNCLIX / screw terminal
Mounting feet	●
LED indicators (status / fault / communication)	●
LC display	○
Interface: Ethernet / WLAN / RS485	● (2 ports) / ● / ○
Data interface: SMA Modbus / SunSpec Modbus / Speedwire, Webconnect	● / ● / ●
Multi-Function relay / Expansion Module Slots	● / ● (2 ports)
Shade management SMA ShadeFix / Integrated Plant Control / Q on Demand 24/7	● / ● / ●
Off-grid capable / SMA Fuel Save Controller compatible	● / ●
Guarantee: 5/10/15/20 years	● / ○ / ○ / ○
Certificates and permits (more available on request) *Does not apply to all national appendices of EN 50438	ANRE 30, AS 4777, BDEW 2008, C10/11:2012, CE, CEI 0-16, CEI 0-21, EN 50438:2013*, G59/3, IEC 60068-2-x, IEC 61727, IEC 62109-1/2, IEC 62116, MEA 2016, NBR 16149, NEN EN 50438, NRS 097-2-1, PEA 2016, PPC, RD 1699/413, RD 661/2007, Res. n°7:2013, SI4777, TOR D4, TR 3.2.2, UTE C15-712-1, VDE 0126-1-1, VDE-ARN 4105, VFR 2014, P.O.12.3, NTCO-NTCyS, GC 8.9H, PR20, DEWA

Download datasheet:

Xin vui lòng liên hệ 0848 005 777 để nhận thêm thông tin chính sách thương mại của sản phẩm
