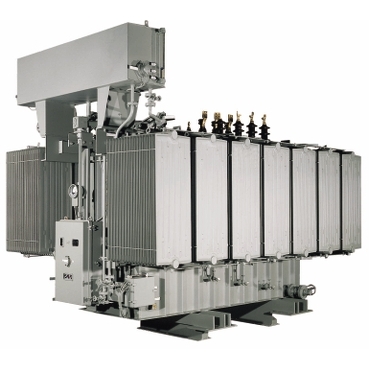

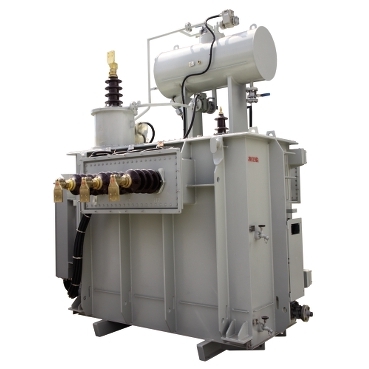

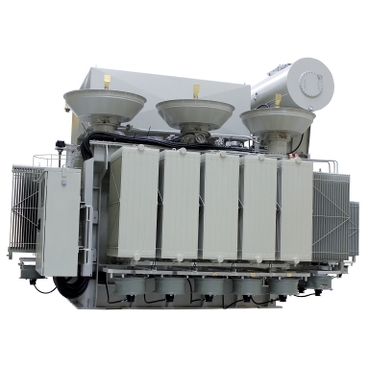

Minera MP Oil-Immersed Medium Power Transformer up to 100 MVA

Minera MP is an oil-immersed power transformer which – depending on its configuration – can be applied to a wide range of operations, from utilities to industry. Thanks to optimized cost efficiency solutions, it helps you connect power plants to supply systems or link together networks with different voltage levels.

Technical specifications

Features

• Rated power up to 100 MVA
• Rated insulation level up to 170 kV
• Rated frequency 50 or 60 Hz
• Mineral oil insulating liquid
• Hermetically sealed or breathing with conservator
• Conventional or reduced losses
• High capacity of cooling options such as ONAN, ONAF, OFAF or OFWF (also with K class insulating oil)
• Off-Circuit Tap Changer (OCTC) or On-Load Tap Changer (OLTC)
• Wide range of accessories

Specific designs:

• Low flammability dielectric liquids (Vegeta or Siltrim ranges)
• Compact design (Siltrim range)
• Hazardous zones (ATEX Transformers range)
• Rectifier feeder (Rectifier Transformers range)

Benefits

Guaranteed global quality

• High reliability in harsh environments
• Customised design and tailor made manufacturing
• Long service life with minimal maintenance
• Strong after sales support

Applications

• Utilities: Transmission and Distribution Network
• Power Generation: Hydro, Nuclear, Thermal…
• Small Industries: Textile, Automotive, Pharmaceutics, Food…
• Renewable Energies: Solar, Wind onshore and offshore, Biomass…

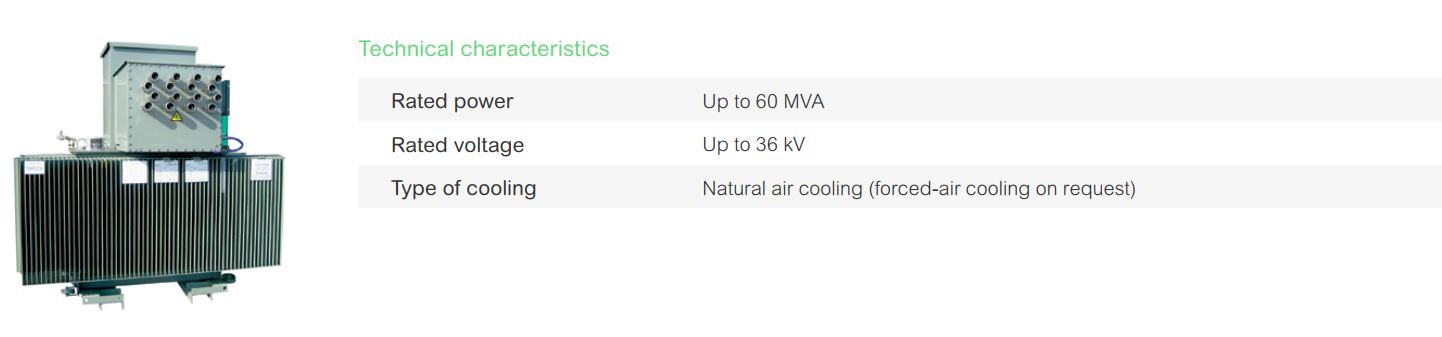

Minera Ex: Power transformer for explosive areas (ATEX and IECEx compliant)

The Minera Ex oil-immersed transformer can be installed in explosive atmospheres, particularly around hydrocarbon fluids. Custom-built, it can provide safety solutions for Zone 1 and Zone 2 applications in line with the latest ATEX and IECEx standards. Depending on technical requirements, Minera Ex power transformers feature tailor-made solutions that help prevent ignition.

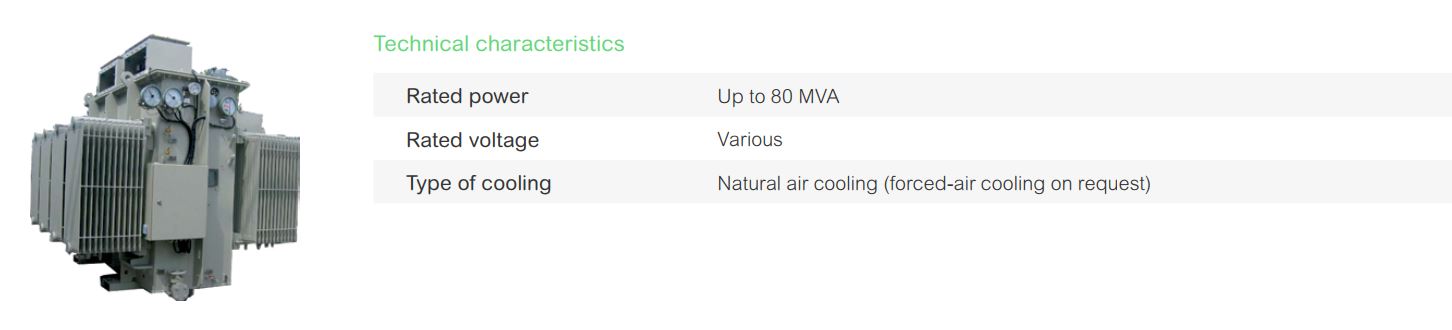

Minera R: Rectifier power transformer

Rectifier transformers are highly customizable and can feature different output currents and voltage. Minera R transformers operate at the fundamental frequency of an alternating current system and are designed to have one or more output windings connected to the rectifier. Engineered for treating high harmonics with their increased load losses (eddy/stray losses), whilst having very little effect on no-load losses.

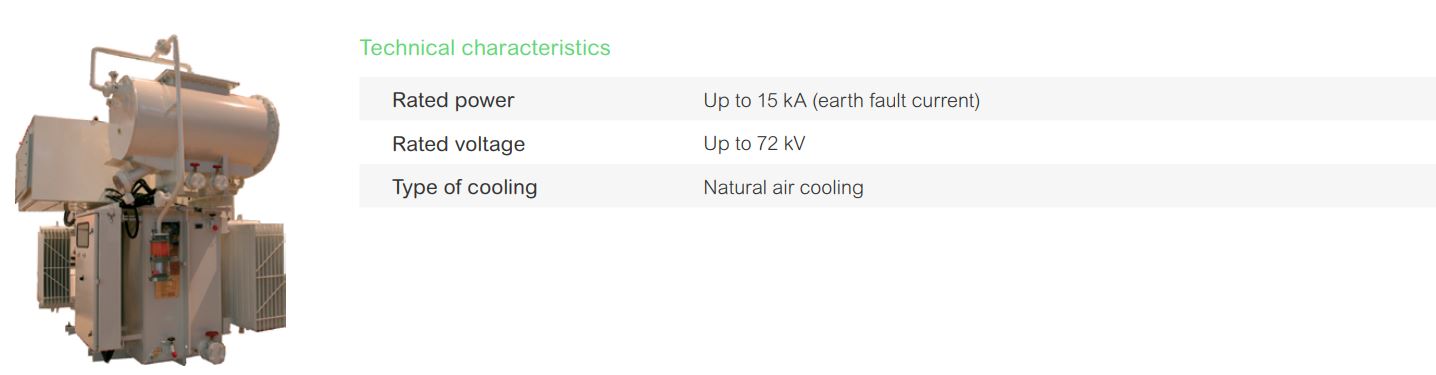

Minera E: Earthing power transformer

The Minera E earthing power transformer is a perfect solution to support short-circuit conditions while protecting the network. Designed to safeguard your system against phase-earth fault currents, Minera E complies with international standards, including IEC 60070 Part 6 and relevant IEE and EN/VDE certifications. Like other Minera power transformers, it can be delivered in a number of variants, with optional features including safety detectors, pressure relief devices, oil and winding temperature indicators, marshalling boxes and wheels.
