Thương hiệu: Schneider
Tình trạng: Còn hàng
Hỗ trợ vận chuyển tuỳ theo thoả thuận đơn hàng
Hỗ trợ thanh toán tiền mặt, thẻ visa tất cả các ngân hàng
Hỗ trợ chăm sóc khách hàng 24/7
Thiên Năng Tecch là thương hiệu được yêu thích và lựa chọn
| MAIN | |
| product name | ComPact NS |

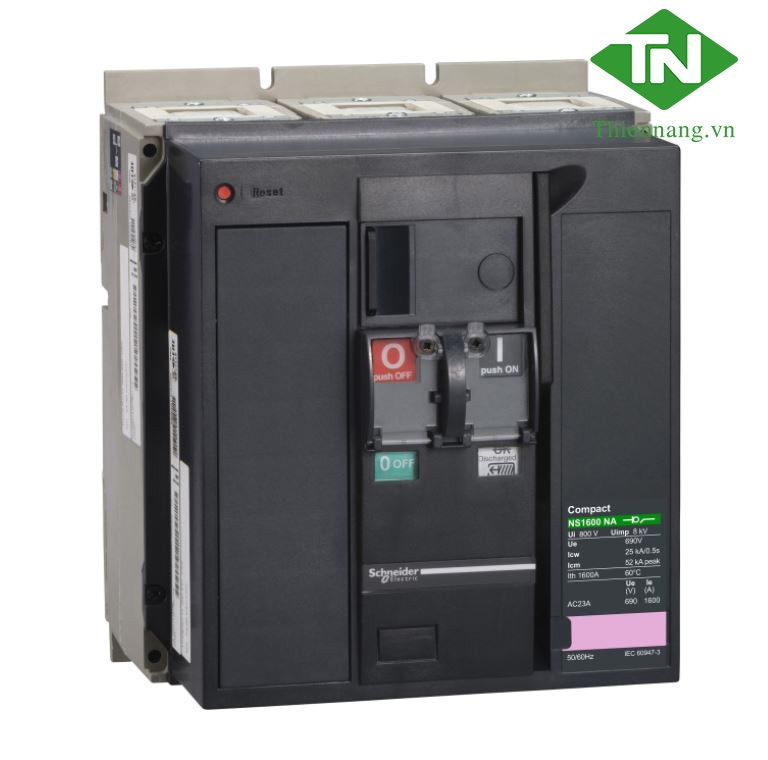

| device short name | Compact NS1600 NA |
| product or component type | Switch disconnector |
| device application | Distribution |
| offer type | C4 |
| poles description | 3P |
| network type | AC |
| performance level | NA |
| suitability for isolation | Yes conforming to IEC 60947-3 |
| COMPLEMENTARY | |
| network frequency | 50/60 Hz |
| control type | Motor mechanism |
| mounting mode | Chassis |
| [Ie] rated operational current | AC-23A: 1600 A AC 50/60 Hz 220/240 V AC-23A: 1600 A AC 50/60 Hz 380/415 V AC-23A: 1600 A AC 50/60 Hz 440/480 V AC-23A: 1600 A AC 50/60 Hz 500/525 V AC-23A: 1600 A AC 50/60 Hz 660/690 V |
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz conforming to IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-3 |
| [Ith] conventional free air thermal current | 1600 A at 60 °C |
| [Icw] rated short-time withstand current | 25 kA during 0.5 s conforming to IEC 60947-3 4 kA during 20 s conforming to IEC 60947-3 |
| [Icm] rated short-circuit making capacity | 52 kA 690 V AC at 50/60 Hz |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-3 |
| contact position indicator | Yes |
| visible break | No |
| mechanical durability | 6000 cycles conforming to IEC 60947-3 |
| electrical durability | AC-23A: 1000 cycles 440 V AC 50/60 Hz conforming to IEC 60947-3 |
| connection pitch | 115 mm |
| height | 327 mm |
| width | 210 mm |
| depth | 147 mm |
| net weight | 14 kg |
| ENVIROMENT | |
| standards | IEC 60947-3 |
| product certifications | ASTA ASEFA |
| pollution degree | 3 conforming to IEC 60947-3 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -50…85 °C |
| Packing Units | |
| Package 1 Weight | 11.938 kg |
| Package 1 Height | 36 cm |
| Package 1 width | 23 cm |
| Package 1 Length | 39 cm |
| Offer Sustainability | |
| REACh Regulation | REACh Declaration |
| EU RoHS Directive | Compliant EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information |
| PVC free | Yes |
| Contractual warranty | |
| Warranty | 18 months |
