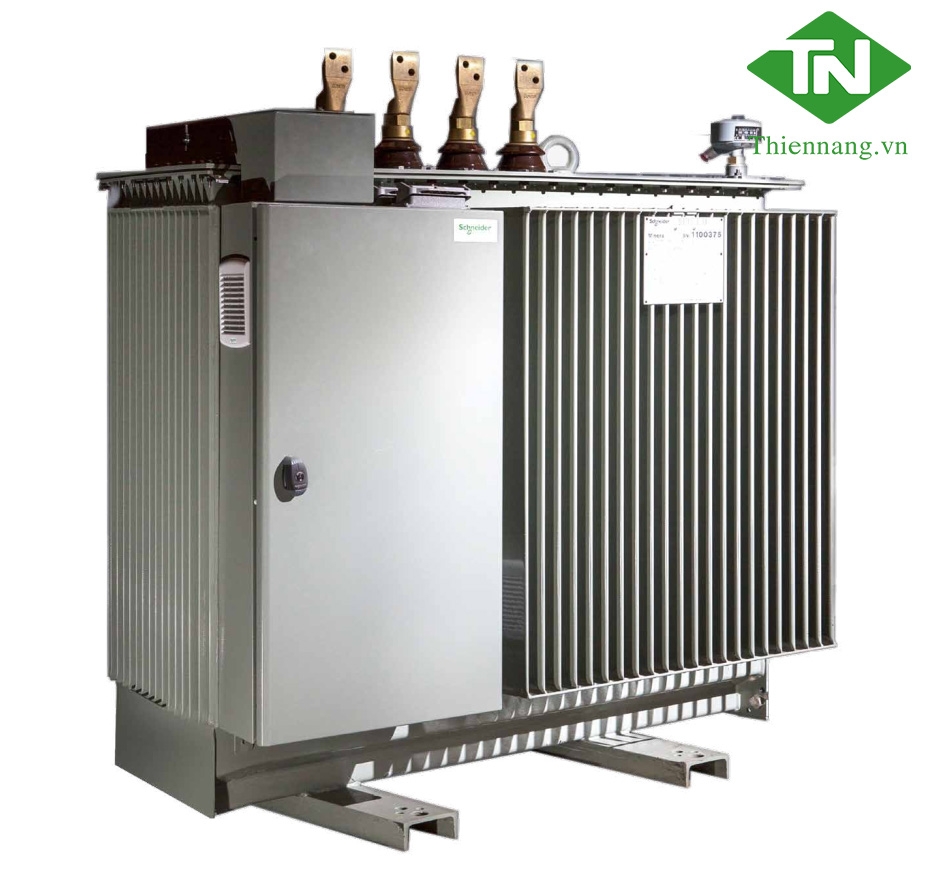

Minera Smart Grid Oil-Immersed Transformer Up To 1000kVA - 36kV

Thương hiệu: Schneider

Tình trạng: Còn hàng

Liên hệ
Rated power (kVA) 160 250 400 630 800 Technology Hermetically sealed transformer Cooling type ONAN Max ambient temperature 40 °C Altitude 1000 m Nominal frequency 50 Hz High voltage Selectable – up to 36 kV insulation voltage De-energized tappings 5 positions +/-5% Other configuration on request Secondary voltage at no load Selectable – 1.1 kV insulation voltage On load tappings 5 positions +/-5% (9 positions +/-10%) configuration on request: symmetrical/asymmetrical – step value Vector group Dyn5 – Dyn11 (other coupling on request) No-load losses A0 as per latest regulation (other losses configuration available on request) Load losses at 75 °C Bk as per latest regulation (other losses configuration available on request) Impedance voltage 4 – 6% MV/LV winding material Al/Al or Cu/Cu on request Maintain voltage stability while integrating more distributed generation Even as new sources of distributed generation are integrated...

Vận chuyển

Hỗ trợ vận chuyển tuỳ theo thoả thuận đơn hàng

Thanh toán nhanh

Hỗ trợ thanh toán tiền mặt, thẻ visa tất cả các ngân hàng

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Uy tín thương hiệu

Thiên Năng Tecch là thương hiệu được yêu thích và lựa chọn

Rated power (kVA) 160 250 400 630 800
Technology Hermetically sealed transformer
Cooling type ONAN
Max ambient temperature 40 °C
Altitude 1000 m
Nominal frequency 50 Hz
High voltage Selectable – up to 36 kV insulation voltage
De-energized tappings 5 positions +/-5%
Other configuration on request
Secondary voltage
at no load
Selectable – 1.1 kV insulation voltage
On load tappings 5 positions +/-5% (9 positions +/-10%)
configuration on request: symmetrical/asymmetrical – step value
Vector group Dyn5 – Dyn11
(other coupling on request)
No-load losses A0 as per latest regulation
(other losses configuration available on request)
Load losses at 75 °C Bk as per latest regulation
(other losses configuration available on request)
Impedance voltage 4 – 6%
MV/LV winding material Al/Al or Cu/Cu on request

Maintain voltage stability while integrating more distributed generation

Even as new sources of distributed generation are integrated into your network, it’s possible to maintain voltage stability — and it’s simpler than you think. Minera SGrid from Schneider Electric takes the proven benefits of regulated distribution transformers a step further. It’s the compact, reliable smart-grid transformer that fits your network and your
customers’ needs.
So if you’ve ever wondered if all this is possible, the answer is yes. You can maintain voltage stability while integrating more distributed generation — easily and cost-effectively.


 Make voltage fluctuation a thing of the past

Minera SGrid is:
Plug-and-play ready, for optimized investment costs
• Simple installation
• Suitable for existing distribution substations
• Designed for autonomous operation
• Compliant with existing standards and new regulations
• DMS-ready product
• Global support with your local Schneider Electric™ field services team
Highly customizable
• Voltage range and step number tailorable for more precise regulation
• Special requests: any MV voltage up to 36 kV, oil, low losses
• Remote supervision capability

Proven technology, designed for compliance

A smart choice for new substations and existing locations

Minera SGrid is a regulated distribution transformer created to help distribution network owners eliminate the risk of voltage fluctuation. It’s an innovative answer to voltage regulation, helping you significantly improve network quality

Minera SGrid brings:
Improved network quality
• Automatically stabilizes the output voltage
• Very wide regulation range thanks to innovative technology
• Increased production of decentralized energy without risk of voltage band violations
Enhanced reliability and ultra-low maintenance
• No moving mechanical parts inside transformer tank
• Robust design with proven industrial components
• No power electronics




Xin vui lòng liên hệ 0848 005 777 để nhận thêm thông tin chính sách thương mại của sản phẩm
