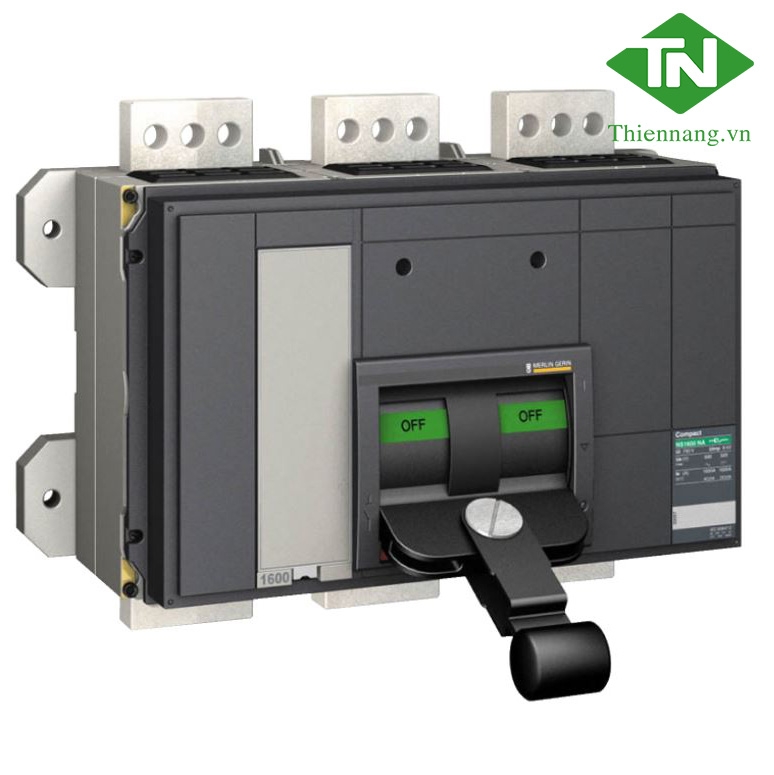

Switch Disconnector Compact NS1600 NA - Fixed - Manually Operated - 1600A - 3 Poles

Thương hiệu: Schneider

Tình trạng: Còn hàng

Liên hệ
MAIN product name ComPact NS device short name Compact NS1600 NA product or component type Switch disconnector device application Distribution offer type C5 poles description 3P network type AC performance level NA suitability for isolation Yes conforming to IEC 60947-3 COMPLEMENTARY network frequency 50/60 Hz control type Toggle mounting mode Fixed upside connection Front downside connection Front [Ie] rated operational current AC-23A: 1600 A AC 50/60 Hz 220/240 V AC-23A: 1600 A AC 50/60 Hz 380/415 V AC-23A: 1600 A AC 50/60 Hz 440/480 V AC-23A: 1600 A AC 50/60 Hz 500/525 V AC-23A: 1600 A AC 50/60 Hz 660/690 V [Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-3 [Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-3 [Ith] conventional free air thermal current 1600 A at 60 °C [Icw] rated short-time withstand current 32 kA during 3 s conforming to IEC 60947-3 [Icm] rated short-circuit making...

Vận chuyển

Hỗ trợ vận chuyển tuỳ theo thoả thuận đơn hàng

Thanh toán nhanh

Hỗ trợ thanh toán tiền mặt, thẻ visa tất cả các ngân hàng

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Uy tín thương hiệu

Thiên Năng Tecch là thương hiệu được yêu thích và lựa chọn

MAIN
product name ComPact NS
device short name Compact NS1600 NA
product or component type Switch disconnector
device application Distribution
offer type C5
poles description 3P
network type AC
performance level NA
suitability for isolation Yes conforming to IEC 60947-3
COMPLEMENTARY
network frequency 50/60 Hz
control type Toggle
mounting mode Fixed
upside connection Front
downside connection Front
[Ie] rated operational current AC-23A: 1600 A AC 50/60 Hz 220/240 V
AC-23A: 1600 A AC 50/60 Hz 380/415 V
AC-23A: 1600 A AC 50/60 Hz 440/480 V
AC-23A: 1600 A AC 50/60 Hz 500/525 V
AC-23A: 1600 A AC 50/60 Hz 660/690 V
[Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-3
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-3
[Ith] conventional free air thermal current 1600 A at 60 °C
[Icw] rated short-time withstand current 32 kA during 3 s conforming to IEC 60947-3
[Icm] rated short-circuit making capacity 135 kA 690 V AC at 50/60 Hz
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-3
contact position indicator Yes
visible break No
mechanical durability 6000 cycles conforming to IEC 60947-3
electrical durability AC-23A: 1000 cycles 440 V AC 50/60 Hz conforming to IEC 60947-3
connection pitch 115 mm
height 350 mm
width 420 mm
depth 160 mm
net weight 23 kg
ENVIROMENT
standards IEC 60947-3
product certifications ASTA
ASEFA
pollution degree 3 conforming to IEC 60947-3
ambient air temperature for operation -25…70 °C
ambient air temperature for storage -50…85 °C
Packing Units
Package 1 Weight 47.000 kg
Package 1 Height 4.300 dm
Package 1 width 6.000 dm
Package 1 Length 8.000 dm
Offer Sustainability
REACh Regulation REACh Declaration
EU RoHS Directive Compliant
EU RoHS Declaration
Mercury free Yes
RoHS exemption information Yes
China RoHS Regulation China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
PVC free Yes
Contractual warranty
Warranty 18 months
