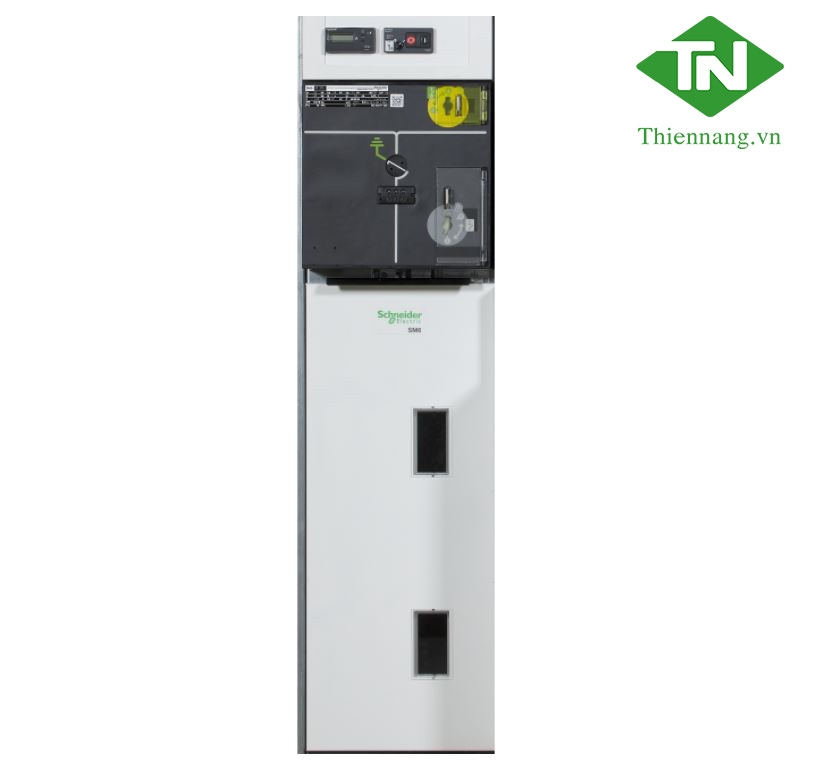

Medium Voltage Switchgear SM6-24 CM - TP 20KV - Micom P923 Cubicle

Thương hiệu: Schneider

Tình trạng: Còn hàng

Liên hệ
MAIN range of product SM6-24 technology type Air insulated switchgear device short name CM 375 product or component type Meter internal arc protection 12.5 kA 0.7 s Rated frequency (fr) 50 Hz [Us] rated supply voltage 15...20 kV Rated lightning impulse withstand voltage (Up) 125 kV peak VPIS 20 kV Rated voltage (Ur) 24 kV Rated normal current (Ir) 50 A rated short-time withstand current (Ik) 12.5 kA rms 1 s Rated short-duration power-frequency withstand voltage (Ud) 50 kV rms 50 Hz for 1 min standards NF C 13-100 COMPLEMENTARY Primary voltage transformer 20 kV/V3 Secondary voltage transformer 110 V/V3 15 VA class 0.5 bus rated current 400 A type of operator CS number of contacts 5 contacts type and composition 1 NO + 2 NC ES 1 NO + 1 NC SW net weight 190 kg width 375 mm depth 940 mm ENVIROMENT ambient air temperature for operation -5…40 °C IP degree of protection IP2x vibration resistance 0.5 gn horizontal class 2 0.4 gn vertical class 2 operating altitude <=...

Vận chuyển

Hỗ trợ vận chuyển tuỳ theo thoả thuận đơn hàng

Thanh toán nhanh

Hỗ trợ thanh toán tiền mặt, thẻ visa tất cả các ngân hàng

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Uy tín thương hiệu

Thiên Năng Tecch là thương hiệu được yêu thích và lựa chọn

MAIN
range of product SM6-24
technology type Air insulated switchgear
device short name CM 375
product or component type Meter
internal arc protection 12.5 kA 0.7 s
Rated frequency (fr) 50 Hz
[Us] rated supply voltage 15...20 kV
Rated lightning impulse withstand voltage (Up) 125 kV peak
VPIS 20 kV
Rated voltage (Ur) 24 kV
Rated normal current (Ir) 50 A
rated short-time withstand current (Ik) 12.5 kA rms 1 s
Rated short-duration power-frequency withstand voltage (Ud) 50 kV rms 50 Hz for 1 min
standards NF C 13-100
COMPLEMENTARY
Primary voltage transformer 20 kV/V3
Secondary voltage transformer 110 V/V3 15 VA class 0.5
bus rated current 400 A
type of operator CS
number of contacts 5
contacts type and composition 1 NO + 2 NC ES
1 NO + 1 NC SW
net weight 190 kg
width 375 mm
depth 940 mm
ENVIROMENT
ambient air temperature for operation -5…40 °C
IP degree of protection IP2x
vibration resistance 0.5 gn horizontal class 2
0.4 gn vertical class 2
operating altitude <= 1000 m
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 195 kg
Package 1 Height 160 cm
Package 1 width 94 cm
Package 1 Length 37.5 cm
Contractual warranty
Warranty 18 months
Xin vui lòng liên hệ 0848 005 777 để nhận thêm thông tin chính sách thương mại của sản phẩm
