Thương hiệu: Schneider
Tình trạng: Còn hàng
Hỗ trợ vận chuyển tuỳ theo thoả thuận đơn hàng
Hỗ trợ thanh toán tiền mặt, thẻ visa tất cả các ngân hàng
Hỗ trợ chăm sóc khách hàng 24/7
Thiên Năng Tecch là thương hiệu được yêu thích và lựa chọn
| MAIN | |

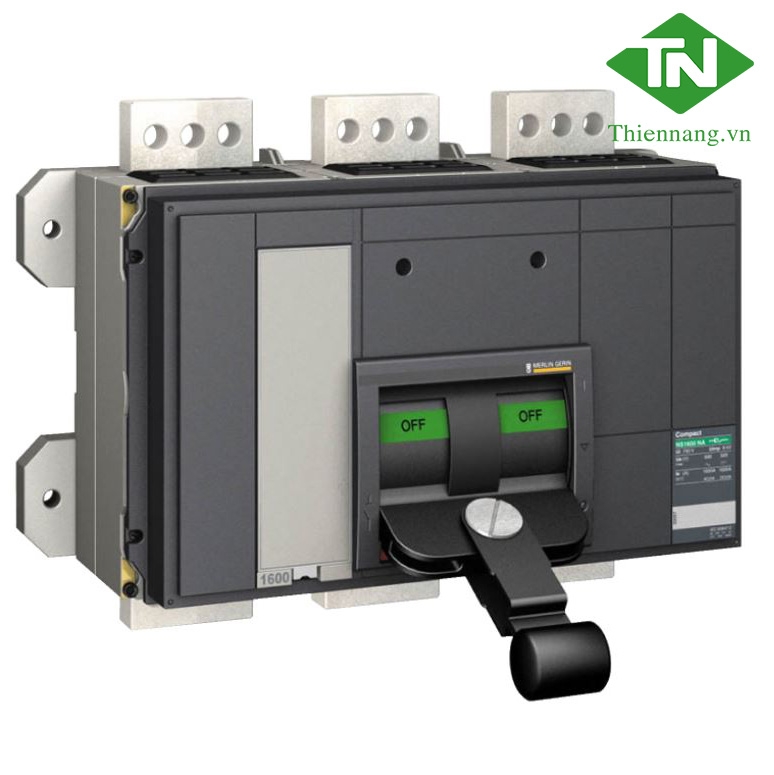

| product name | ComPact NS |
| device short name | Compact NS2500 NA |
| product or component type | Switch disconnector |
| device application | Distribution |
| offer type | C5 |
| poles description | 3P |
| network type | AC |
| performance level | NA |
| suitability for isolation | Yes conforming to IEC 60947-3 |
| COMPLEMENTARY | |
| network frequency | 50/60 Hz |
| control type | Toggle |
| mounting mode | Fixed |
| upside connection | Front |
| downside connection | Front |
| [Ie] rated operational current | AC-23A: 3200 A AC 50/60 Hz 220/240 V AC-23A: 3200 A AC 50/60 Hz 380/415 V AC-23A: 3200 A AC 50/60 Hz 440/480 V AC-23A: 3200 A AC 50/60 Hz 500/525 V AC-23A: 3200 A AC 50/60 Hz 660/690 V |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz conforming to IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-3 |
| [Ith] conventional free air thermal current | 3200 A at 60 °C |
| [Icw] rated short-time withstand current | 32 kA during 3 s conforming to IEC 60947-3 |
| [Icm] rated short-circuit making capacity | 135 kA 690 V AC at 50/60 Hz |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-3 |
| contact position indicator | Yes |
| visible break | No |
| mechanical durability | 6000 cycles conforming to IEC 60947-3 |
| electrical durability | AC-23A: 1000 cycles 440 V AC 50/60 Hz conforming to IEC 60947-3 |
| connection pitch | 115 mm |
| height | 350 mm |
| width | 420 mm |
| depth | 160 mm |
| net weight | 23 kg |
| ENVIROMENT | |
| standards | IEC 60947-3 |
| product certifications | ASTA ASEFA |
| pollution degree | 3 conforming to IEC 60947-3 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -50…85 °C |
| Packing Units | |
| Package 1 Weight | 47.000 kg |
| Package 1 Height | 4.300 dm |
| Package 1 width | 6.000 dm |
| Package 1 Length | 8.000 dm |
| Offer Sustainability | |
| REACh Regulation | REACh Declaration |
| EU RoHS Directive | Compliant EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information |
| PVC free | Yes |
| Contractual warranty | |
| Warranty | 18 months |
