Thiên Năng Tecch là thương hiệu được yêu thích và lựa chọn

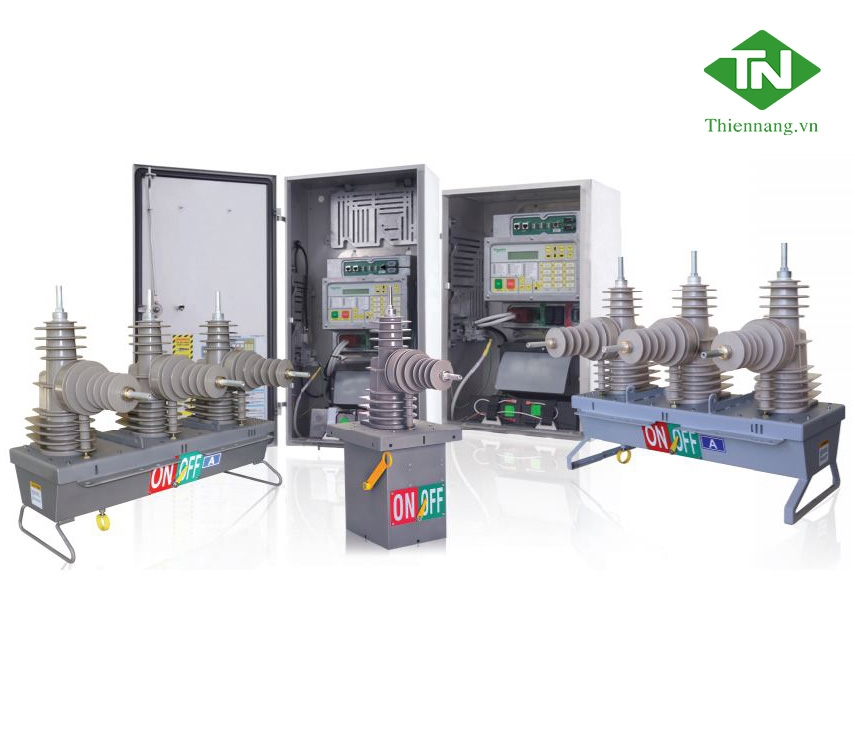

RL-SERIES

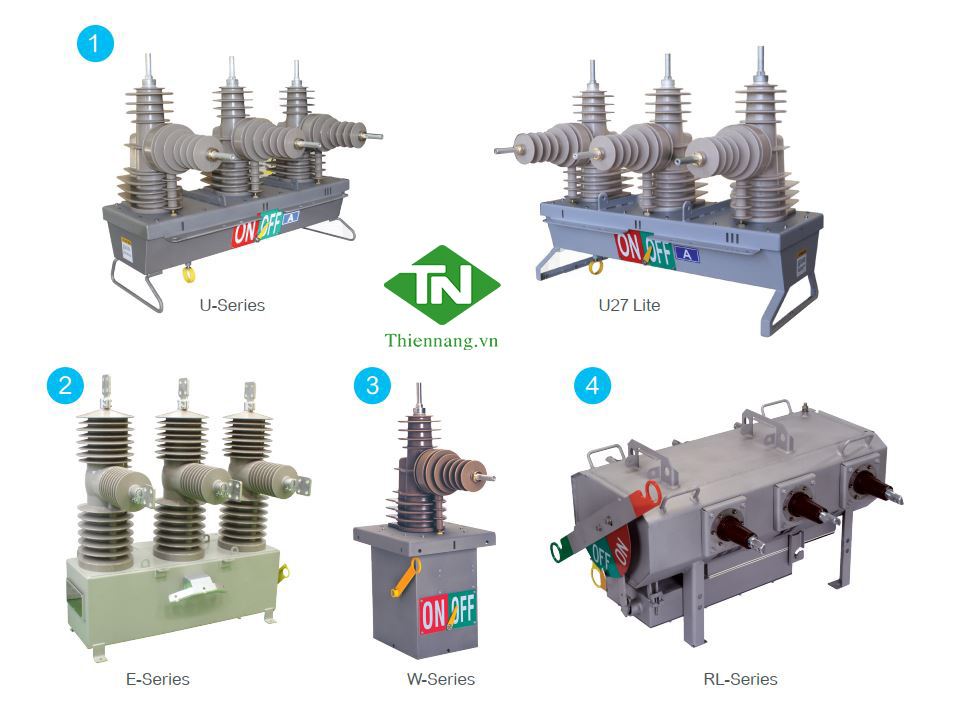

| U-SERIES / U27 LITE | E-SERIES | RL-SERIES | W-SERIES | ||||||
| 15 kV 12.5 kA |
27 kV 12.5 kA |
15 kV/27 kV 12.5 kA |
38 kV 16 kA |
15 kV 12.5/16 kA |
16kV 12.5/16kA |
27 kV 12.5/16 kA |
38 kV 12.5/16 kA |
24 kV 6 kA |
|
| RATINGS | |||||||||
| Rated Maximum Voltage | 15.5 kV | 27 kV | 15/27 kV | 38 kV | 15.5 kV | 16 kV | 27 kV | 38 kV | 24 kV |
| Rated Nominal Voltage (phase to ground) |
21 kV | ||||||||
| Rated Continuous Current |
630 A | 630 A | 630 A/800 A* | 800 A/1250 A* | 630 A | 630 A | 630 A | 630 A | 400 A |
| Fault Make Capacity (RMS) |
12.5 kA | 12.5 kA | 12.5 kA | 16 kA | 12.5/16 kA | 12.5/16 kA | 12.5/16 kA | 12.5/16 kA | 6 kA |
| Fault Make Capacity (Peak) |
31.5 kA | 31.5 kA | 32.5 kA | 41.6 kA | 31.5/40 kA | 31.5/40 kA | 31.5/40 kA | 31.5/40 kA | 15 kA |
| Power Operating Time (Close/Open) |
0.1/0.05 s | 0.1/0.05 s | 0.1/0.05 s | 0.1/0.05 s | < 2 s | < 2 s | < 2 s | < 2 s | 0.1/0.05 s |
| Mechanical Operations | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 |
| Rated full load operations |
10,000 | 10,000 | 10,000 | 10,000 | 600 | 400 | 600 | 400 | 10,000 |
| Short time current | 12.5 kA | 12.5 kA | 12.5 kA | 16 kA | 12.5/16 kA | 12.5/16 kA | 12.5/16 kA | 12.5/16 kA | 6 kA |
| BREAKING CAPACITY | |||||||||
| Mainly Active (0.7pf) | 630 A | 630 A | 630 A | 800 A | 630 A | 630 A | 630 A | 630 A | 400 A |
| Fault break capacity | 12.5 kA | 12.5 kA | 12.5 kA | 16 kA | 6 kA | ||||
| Cable charging | 25 A | 25 A | 25 A | 40 A | 25 A | 25 A | 25 A | 25 A | 25 A |
| Line charging | 5 A | 5 A | 5 A | 5 A | 10 A | 10 A | 10 A | 10 A | 5 A |
| Capacitor bank | |||||||||
| LIGHTNING IMPULSE WITHSTAND LEVEL | |||||||||
| Phase to Phase | 125 kV | 170 kV | 150 kV | 170 kV | |||||
| Phase to Earth | 110 kV | 125 kV | 150 kV | 170 kV | 125 kV | 170 kV | 150 kV | 170 kV | 125 kV |
| Across Interrupter | 110 kV | 125 kV | 150 kV | 170 kV | 145 kV | 200 kV | 170 kV | 200 kV | 125 kV |
| POWER FREQUENCY WITHSTAND VOLTAGE | |||||||||
| Phase to Earth | 50 kV | 60 kV | 60 kV | 70 kV | 40 kV | 70 kV | 60 kV | 70 kV | 60 kV |
| Across Interrupter | 50 kV | 60 kV | 60 kV | 70 kV | 50 kV | 80 kV | 60 kV | 80 kV | 60 kV |
| SERVICE CONDITIONS | |||||||||
| Ambient Temperaturea (ºC) |
-40 to 50 | -40 to 50 | -40 to 50 | -40 to 50 | -30 to 50 | -30 to 50 | -30 to 50 | -30 to 50 | -30 to 50 |
| Ambient Temperaturea (ºF) |
-40 to 122 | -40 to 122 | -40 to 122 | -40 to 122 | -22 to 122 | -22 to 122 | -22 to 122 | -22 to 122 | -22 to 122 |
| Radiation (Max) | 1.1 kW/m2 | 1.1 kW/m2 | 1.1 kW/m2 | 1.1 kW/m2 | 1.1 kW/m2 | 1.1 kW/m | 1.1 kW/m2 | 1.1 kW/m2 | 1.1 kW/m2 |
| Humidity | 0 to 100% | 0 to 100% | 0 to 100% | 0 to 100% | 0 to 100% | 0 to 100% | 0 to 100% | 0 to 100% | 0 to 100% |
| Altitude meters (Max)b | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| Altitude feet (Max)b | 9840 | 9840 | 9840 | 9840 | 9840 | 9840 | 9840 | 9840 | 9840 |
| NET WEIGHTS | |||||||||
| Circuit breaker with pole mount bracket (kg/lbs) |
118/261 | 118/261 | 168/371 | 220/485 | 128/282 | 128/282 | 128/282 | 128/282 | 75/165 |
| Control cubicle with control cable (kg/lbs) |
41/90 | 41/90 | 41/90 | 41/90 | 41/90 | 41/9 | 41/90 | 41/90 | 41/90 |
| Gross weight of crate (kg/lbs) |
263/580 | 263/580 | 275/606 | 350/771 | 285/628 | 285/628 | 285/628 | 285/628 | 196/432 |
| External VT (kg/lbs) (N series Only) |
60/132 | 60/132 | 60/132 | 60/132 | 60/132 | 60/132 | 60/132 | 60/132 | 60/132 |
| CRATE DIMENSIONS | |||||||||
| Width (mm/in) | 960/37.8 | 960/37.8 | 1110/43.7 | 1245/49 | 1200/47.2 | 1200/47.2 | 1200/47.2 | 1200/47.2 | 1150/45.3 |
| Depth (mm/in) | 1020/40.2 | 1020/40.2 | 1085/42.7 | 1085/42.7 | 1150/45.3 | 1150/45.3 | 1150/45.3 | 1150/45.3 | 1150/45.3 |
| Height (mm/in) | 1160/45.7 | 1160/45.7 | 1323/52 | 1323/52 | 755/29.7 | 755/29.7 | 755/29.7 | 755/29.7 | 570/22.4 |

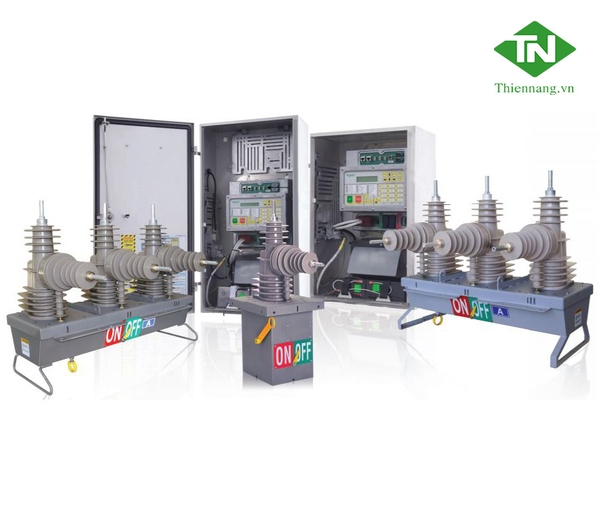

Light-weight Solutions with U-Series recloser upto 27 kV and 125 kV BILReduced purchasing, installation and operating costs, with intelligent solid-dielectric switchgear.
Offering solid-dielectric insulation in a cost effective solution, U-Series Automatic Circuit Reclosers provides the updated technology in vacuum interrupters, encased in an hydrophobic epoxy resin moulding.

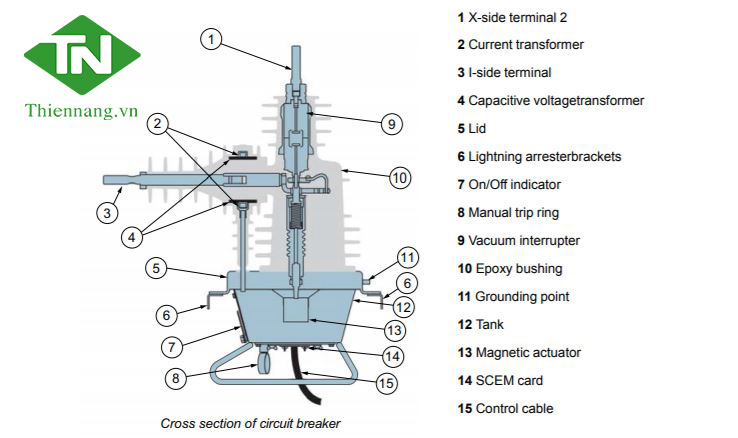

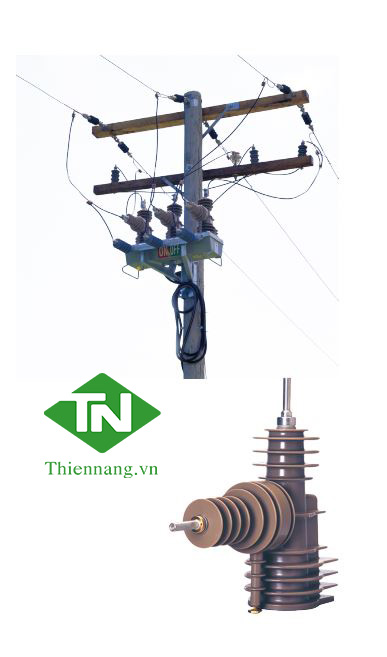

The switching mechanism and switchgear microelectronics are enclosed in a 316 stainless steel tank. The U27 Lite mechanism is enclosed in a mild steel enclosure coated with zinc rich epoxy and special powder paint system.
Current and voltage transformers molded into the I-side terminal allow easy monitoring for your overhead voltage network, and with optional voltage measurement on the X-side terminal, you have automation capabilities for your electricity distribution network or substation.
A mechanical lockout and visible On/Off indicator provides instant visual indication of the switchgear state.
This solution offers protection technology and low maintenance Automatic Circuit Recloser.
Available in 15 kV and 27 kV models, the U-Series has a rated continuous current of 630
Reduced purchasing, installation and operating costs, with intelligent solid-dielectric switchgear.
Offering solid-dielectric insulation in a cost effective solution, E-Series Automatic Circuit Reclosers provides the updated technology in vacuum interrupters, encased in an hydrophobic epoxy resin moulding.
The switching mechanism and switchgear microelectronics are enclosed in a stainless steel tank.
Current transformers molded into the I-side terminal allow easy monitoring for your overhead voltage network, and voltage transformers molded into the I-side terminal and X-side terminal for voltage measurement. You have automation capabilities for your electricity distribution network or substation.
A mechanical lockout and visible On/Off indicator provides instant visual indication of the switchgear state.
This solution offers protection technology and low maintenance Automatic Circuit Recloser.
Available in 15kV, 27kv and 38kV models, the E-series has a rated continuous current of 630A/800A* for 15/27kV and 800A/1250A* for 38kV with 150kv BIL for 15/27kV and 170kV BIL for 38kV.
| Description | Specification | |
| U-Series Range | 15 kV | 27 kV |
| 12.5 kA | 12.5 kA | |
| RATINGS | ||
| Rated Maximum Voltage | 15.5 kV | 27 kV |
| Rated Continuous Current | 630 A | 630 A |
| Fault Make Capacity (rms) | 12.5 kA | 12.5 kA |
| Fault Make Capacity (Peak) | 31.5 kA | 31.5 kA |
| Power Operating Time (Close/Open) | 0.1/0.05 s | 0.1/0.05 s |
| Mechanical Operations | 10,000 | 10,000 |
| Rated Full Load Operations | 10,000 | 10,000 |
| Short Time Current | 12.5 kA | 12.5 kA |
| BREAKING CAPACITY | ||
| Mainly Active (0.7pf) | 630 A | 630 A |
| Fault Break Capacity | 12.5 kA | 12.5 kA |
| Cable Charging | 25 A | 22 A |
| Transformer Magnetizing | 22 A | 22 A |
| LIGHTNING IMPULSE WITHSTAND LEVEL | ||
| Phase to Earth | 110 kV | 125 kV |
| Across Interrupter | 110 kV | 125 kV |
| POWER FREQUENCY WITHSTAND VOLTAGE | ||
| Phase to Earth | 50 kV | 60 kV |
| Across Interrupter | 50 kV | 60 kV |
| SERVICE CONDITIONS | ||
| Ambient Temperaturea(0C) | -40–50 | -40–50 |
| Ambient Temperaturea(0F) | -40–122 | -40–122 |
| Radiation (max) | 1.1 kW/m2 | 1.1 kW/m2 |
| Humidity | 0–100% | 0–100% |
| Altitude meters (max)b | 3000 | 3000 |
| Altitude feet (max)b | 9840 | 9840 |
| NET WEIGHTS | ||
| Circuit breaker with pole mount bracket (kg/lbs) | 118/261 | 118/261 |
| Control cubicle with control cable (kg/lbs) | 41/90 | 41/90 |
| Gross Weight of crate (kg/lbs) | 263/580 | 263/580 |
| CRATE DIMENSIONS | ||
| Width (mm/in.) | 960/37.8 | 960/37.8 |
| Depth (mm/in.) | 1020/40.2 | 1020/40.2 |
| Height (mm/in.) | 1160/45.7 | 1160/45.7 |
| Description | Specification |
| RATINGS | |
| Rated Maximum Voltage | 24 kV |
| Rated Nominal Voltage (phase to ground) | 21 kV |
| Rated Continuous Current | 400 A |
| Fault Make Capacity (rms) | 6 kA |
| Fault Make Capacity (Peak) | 15 kA |
| Power Operating Time (Close/Open) | 0.1/0.05 s |
| Mechanical Operations | 10,000 |
| Rated full load operations | 10,000 |
| Short time current | 6 kA |
| BREAKING CAPACITY | |
| Mainly Active (0.7pf) | 400 A |
| Fault Break Capacity | 6 kA |
| Cable Charging | 25 A |
| Line Charging | 5 A |
| Transformer magnetizing | 22 A |
| LIGHTNING IMPULSE WITHSTAND LEVEL | |
| Phase to Earth | 125 kV |
| Across Interrupter | 125 kV |
| POWER FREQUENCY WITHSTAND VOLTAGE | |
| Phase to Earth | 60 kV |
| Across Interrupter | 60 kV |
| SERVICE CONDITIONS | |
| Ambient Temperaturea(0C) | -30 to 50 |
| Ambient Temperaturea(0F) | -22 to 122 |
| Radiation (Max) | 1.1 kW/m2 |
| Humidity | 0 to 100% |
| Altitude meters (Max)b | 3000 |
| Altitude feet (Max)b | 9840 |
| NET WEIGHTS | |
| Circuit breaker with pole mount bracket (kg/lbs) | 75/165 |
| Control cubicle with control cable (kg/lbs) | 41/90 |
| Gross Weight of crate (kg/lbs) | 196/432 |
| CRATE DIMENSIONS | |
| Width (mm/in.) | 1150/45.3 |
| Depth (mm/in.) | 1150/45.3 |
| Height (m/in.) | 57/22.4 |
