Thương hiệu: Schneider
Tình trạng: Còn hàng
Hỗ trợ vận chuyển tuỳ theo thoả thuận đơn hàng
Hỗ trợ thanh toán tiền mặt, thẻ visa tất cả các ngân hàng
Hỗ trợ chăm sóc khách hàng 24/7
Thiên Năng Tecch là thương hiệu được yêu thích và lựa chọn
| MAIN | |
| range | Masterpact |

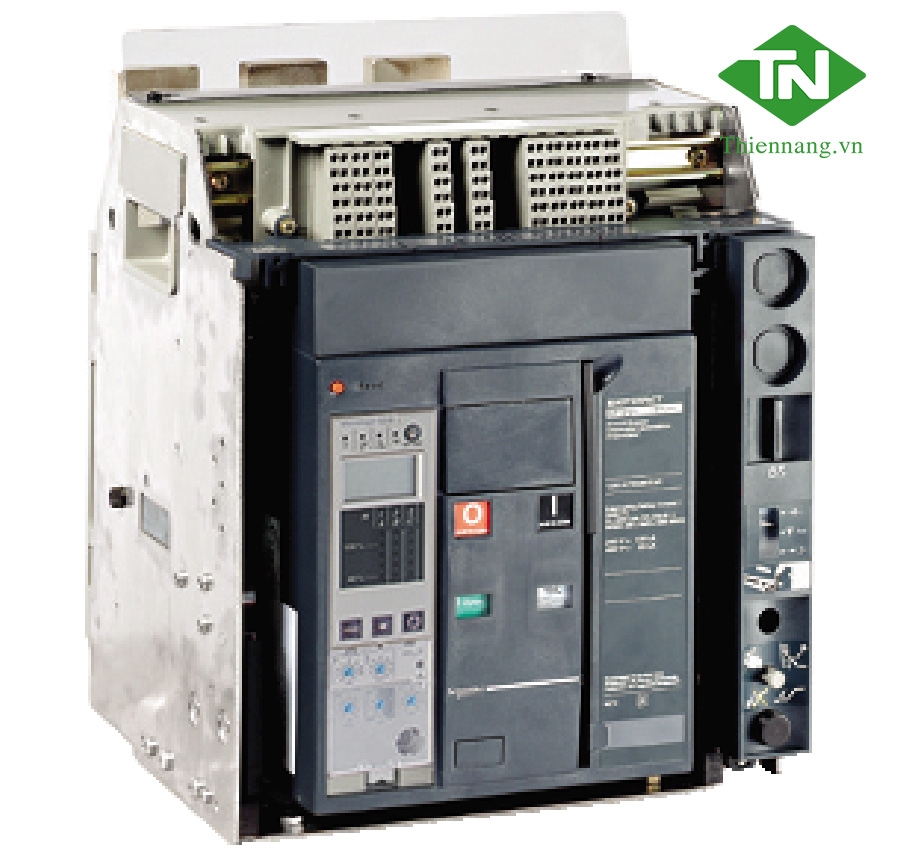

| product name | Masterpact NT UL 489 |
| product or component type | Switch disconnector |
| device short name | Masterpact NT12 |
| switch-disconnector name | Masterpact NT12HF |
| device application | Protection |
| poles description | 3P |
| network type | AC |
| network frequency | 50/60 Hz |
| [Ie] rated operational current | 1200 A AC 50/60 Hz |
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz conforming to UL 489 |
| [Ue] rated operational voltage | 240...600 V AC 50/60 Hz conforming to UL 489 |
| breaking capacity code | HF |
| COMPLEMENTARY | |
| control type | Push-button |
| mounting mode | Fixed |
| [Icw] rated short-time withstand current | 50 kA at 480 V 50 kA at 600 V 65 kA at 220 V |
| mechanical durability | 12500 cycles without maintenance conforming to UL 489 |
| electrical durability | 2800 cycles without maintenance |
| connection pitch | 70 mm |
| height | 301 mm |
| width | 276 mm |
| depth | 196 mm |
| net weight | 14 kg |
| integral instant protection | 40 kA |
| ENVIROMENT | |
| standards | UL 489 |
| IP degree of protection | IP30 |
| PACKING UNITS | |
| Package 1 Weight | 16.000 kg |
| Package 1 Height | 6.000 dm |
| Package 1 width | 6.000 dm |
| Package 1 Length | 8.000 dm |
| Offer Sustainability | |
| Sustainable offer status | Green Premium product |
| REACh Regulation | REACh Declaration |
| EU RoHS Directive | Compliant EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information |
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | End of Life Information |
| PVC free | Yes |
| Contractual warranty | |
| Warranty | 18 months |
