A Multitude of outputsIntegrated solid state switch avalable Traditional 4-20 mA or low power 1-5 VDC output HART 7 and/or Modbus RTU communications
Versatile Compact or conventional style Many pressure ranges
Cost Effective Solution Cost effective Field adjustable models No charge for factory calibration
- -6 kPa to +6 kPa thru -500 kPa to +10 MPa
- ATEX, IECEx, CSA
- 2 Years

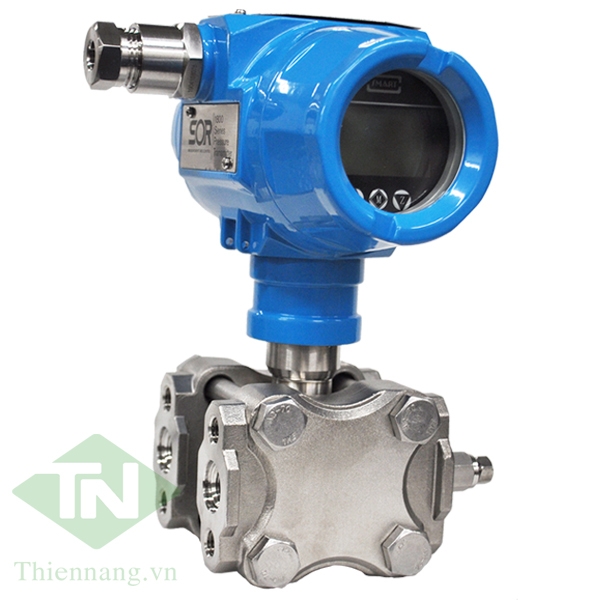

The 1800 Series Differential Pressure Transmitter model DMP305X-DST-S is well suited for intrinsically safe applications or conventional transmitter installations where a compact footprint is impractical.
All DMP305X-DST-S pressure transmitters include external push-buttons for device setup and calibration. If ordered with HART® output they can also be programmed with a HART® communicator.

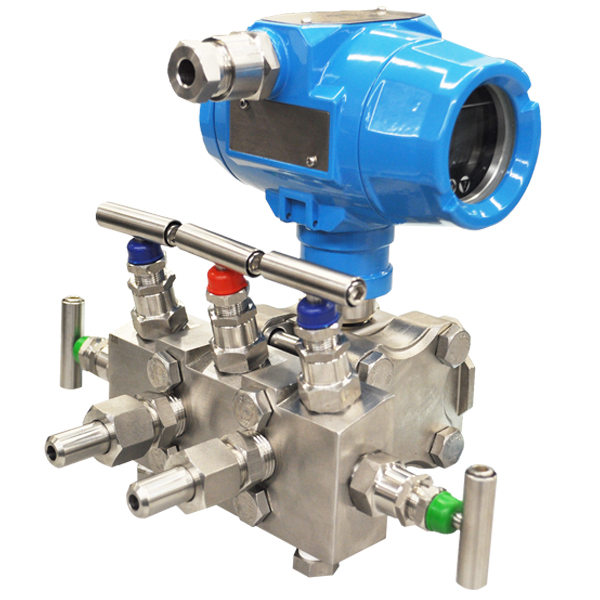

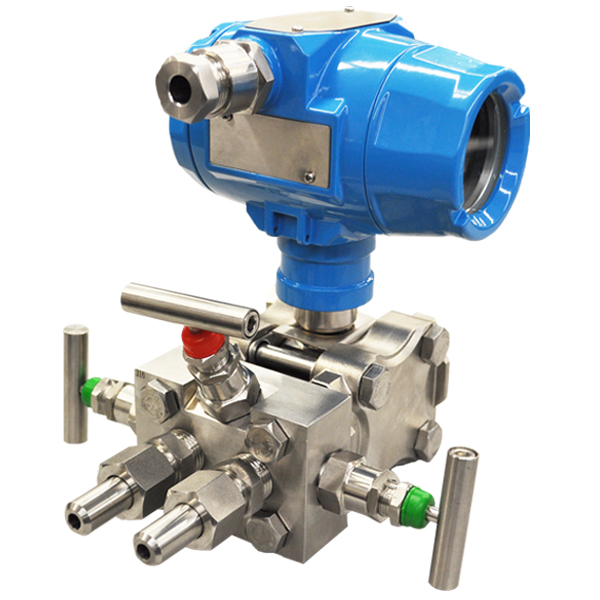

3 and 5-valve manifolds are also available for 1800 Series differential pressure transmitters.
- 4-20 mA output
- Optional HART® communication protocol
- Standard ±0.075% accuracy (URL)
- Aluminum explosion proof housing
- Optional integral LCD display
- EMC (EMI/RFI) protection
- ATEX / IECEx certified for intrinsically safe and flameproof applications
- CSA certified for explosion proof applications
