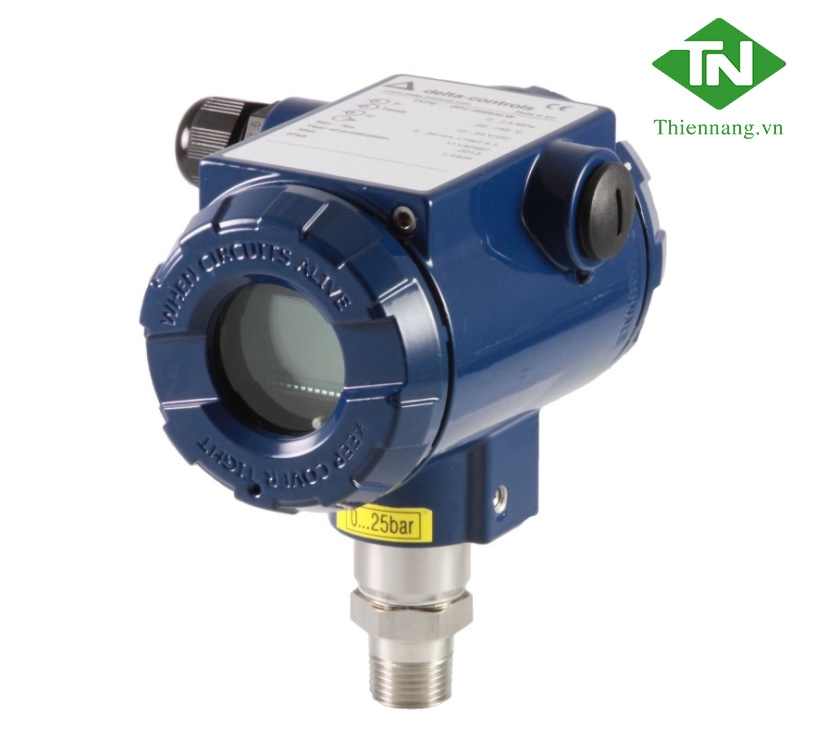

Delta Mobrey D Series Smart Pressure Transmitter

Thương hiệu: Delta Mobrey

Tình trạng: Còn hàng

Liên hệ

Key Features

• SIL 2 certificate
• Compliant to NAMUR NE-43
• High accuracy ±0.075% (better accuracy upon request)
• Fully HART ® compatible
• 4-20mA, 0-20mA or 0-5mA analogue with digital communications
• Gold (Au) plated diaphragm option
• Hastelloy C276 wetted part option
• Programmable range, zero shift, characteristic and damping ratio with local panel keys


Vận chuyển

Hỗ trợ vận chuyển tuỳ theo thoả thuận đơn hàng

Thanh toán nhanh

Hỗ trợ thanh toán tiền mặt, thẻ visa tất cả các ngân hàng

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Uy tín thương hiệu

Thiên Năng Tecch là thương hiệu được yêu thích và lựa chọn

Series Overview

  • The D-Series pressure, differential pressure and temperature transmitters offer customers reliable and accurate solutions to their individual process requirements.
  • Available with a wide range of process connections and easily configurable via the D-Soft software, the D-Series can be used for a variety of applications when pressure, differential, pressure, needed.temperature, level, or flow measurements are needed.

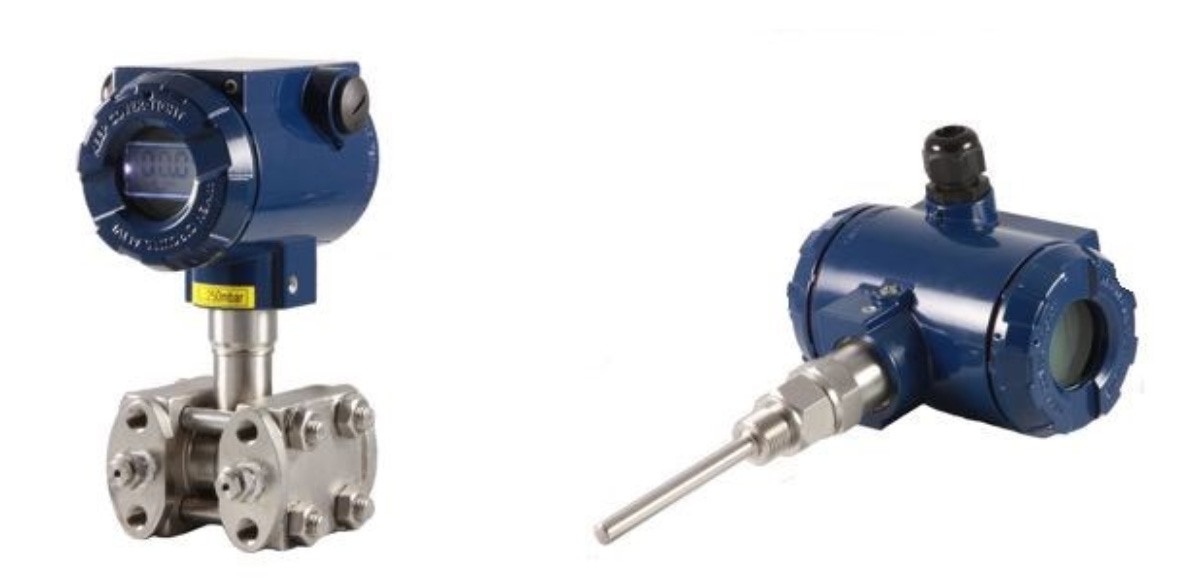

Other products in the series include:

  • SMART Differential Pressure Transmitter
  • SMART Differential Pressure Transmitter with 2 remote chemical seals
  • SMART Temperature Transmitter

Metrological Parameters
Accuracy ≤ ±0 .075% of the calibrated range (≤±0.1% for range B1)
  Special version: ≤±0.05% of the calibrated range (≤0.04% on request)
Long-term stability ≤ accuracy for 3 years (for the nominal measuring range) or ≤2 x accuracy for 5 year
Version 2 (range F1,F0,E2,C5,E1,C4,D4,C1,C0,D3,D1,C3,D0) : ≤ accuracy for 6 years
or ≤2 x accuracy for 5 years
Thermal error < ±0.05% (FSO) / 10°C (0.1% for ranges A0, A1, A2, B1)
max. ±0.25% (FSO) in the whole compensation range (0.4% for ranges A0, A1, A2, B1)
Thermal compensation range -25...80°C
-40 ...80°C – special version
Response time 16...480ms(programmable) Ex d version: 150ms
Additional electronic damping 0...60 s
Error due to supply voltage changes
Load resistance(for standard version) R[Ω]≤(Usup [V] - 10V)/ 0.0225A
Resistance required for communication min. 240Ω
Electrical parameters
Power supply: 10...55 VDC / Exia:10.5...30 VDC / Exd:10.5...45 VDC
SIL2: 15...45 VDC / SIL2 Exia: 16...28 VDC
Output signal
Special Version:
4...20 mA, two wire transmission
0...20 / 0...5 / 4...20 [mA]
Output signal
Special Version:
4...20 mA, two wire transmission
0...20 / 0...5 / 4...20 [mA
Operating conditions
Operating temperature range (ambient temp.) 40...85° C
Ex i version -40…80 °C
Ex d version -40…75 °C
Process medium temperature range -40...120 °C
over 120 °C –measurement with the use of impulse line or diaphragm seals

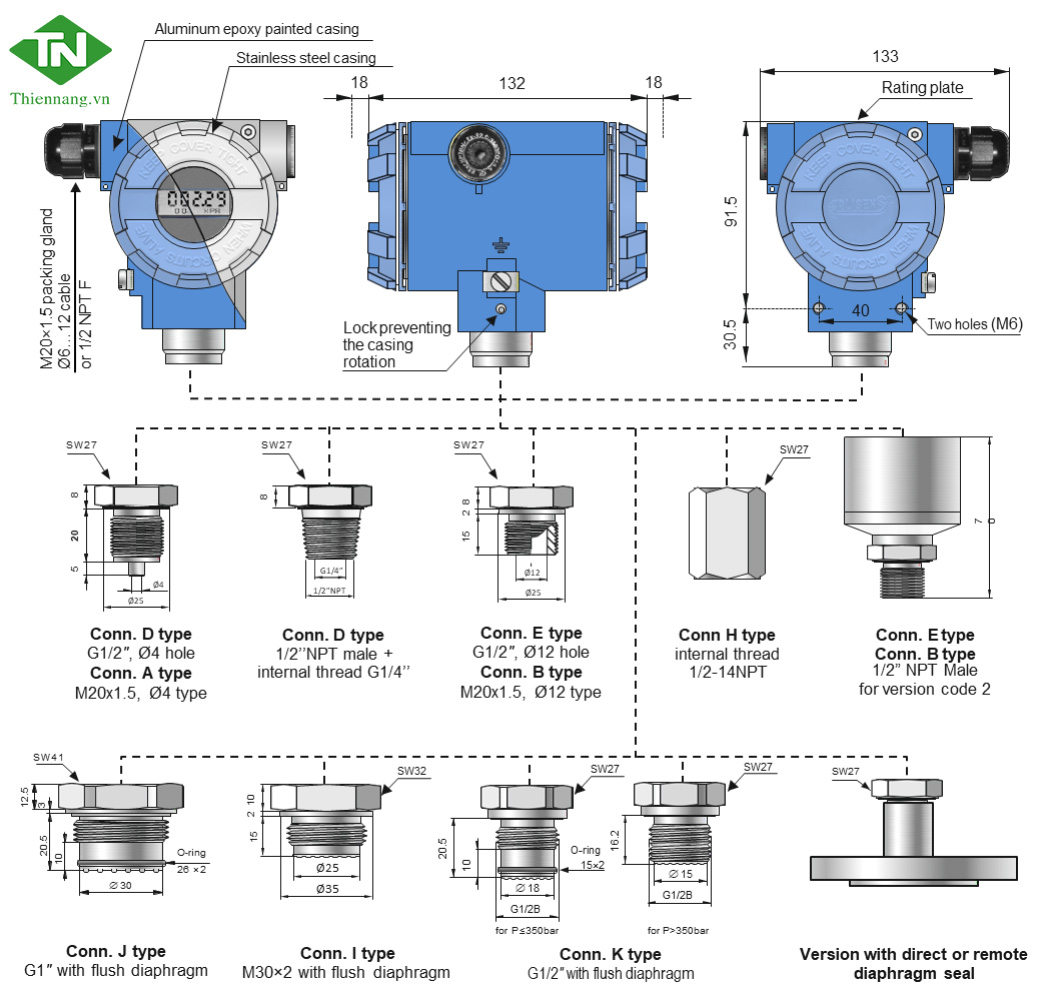

Wetted parts and Diaphragms 316LSS, Hastelloy C 276, Au
Casing Aluminium, 316SS
Material of window Polycarbonate glass, hardened glass


Download datasheet:
