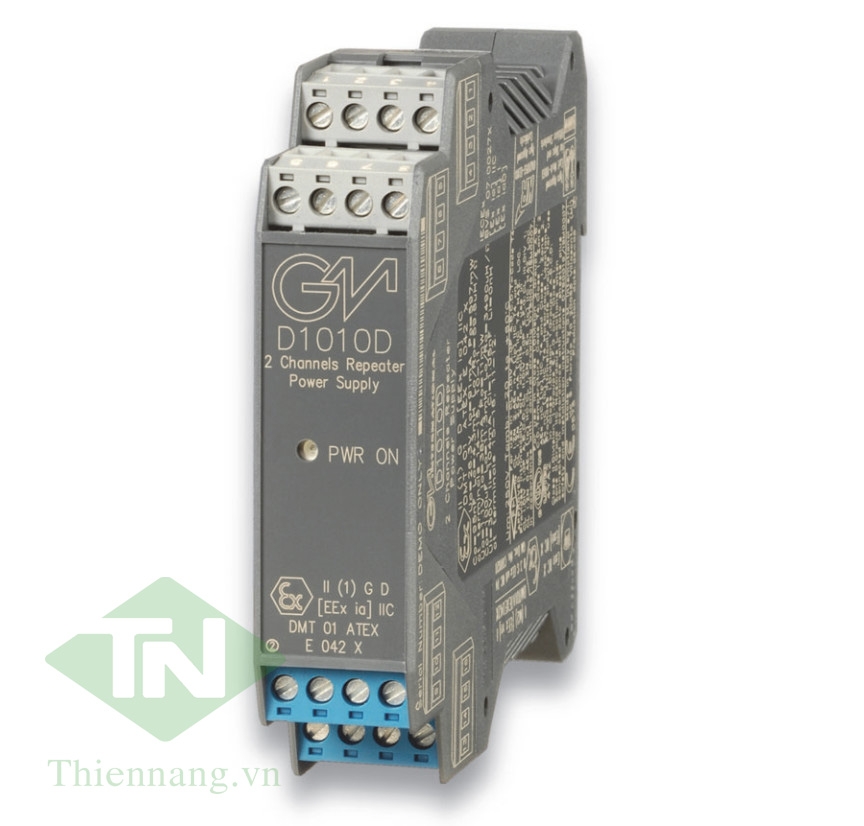

GMI Barrier D1000 Series

Thương hiệu: GMI

Tình trạng: Còn hàng

Liên hệ

Characteristics: Isolation 1.5 KV minimum test voltage for isolation between I.S. and Safe Area terminals,or 2.5 KV minimum test voltage for isolation between I.S. and Safe Area terminals. Supply voltage: 12 Vdc nominal, 24 Vdc nominal, 115 Vac nominal, 230 Vac nominal, or Loop powered Environmental conditions : Operating: temperature limits: -20 to +60 °C, relative humidity max 90%, up to 35 °C. Storage: temperature limits -45 to +80 °C. Mounting: T35 DIN Rail according to EN50022, with or without Power Bus or on customized Termination Boards. Connection: by polarized plug-in disconnect screw terminal blocks to accomodate terminations up to 2.5 mm2. Location: Safe Area/Non Hazardous Locations or Zone 2, Group IIC T4 or Class I, Division 2, Group A,B,C,D,...

Vận chuyển

Hỗ trợ vận chuyển tuỳ theo thoả thuận đơn hàng

Thanh toán nhanh

Hỗ trợ thanh toán tiền mặt, thẻ visa tất cả các ngân hàng

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Uy tín thương hiệu

Thiên Năng Tecch là thương hiệu được yêu thích và lựa chọn

Thông số kỹ thuật
Chính sách
Đánh giá sản phẩm

Characteristics:

Isolation
1.5 KV minimum test voltage for isolation between I.S. and Safe Area terminals,or
2.5 KV minimum test voltage for isolation between I.S. and Safe Area terminals.
Supply voltage:
12 Vdc nominal, 24 Vdc nominal, 115 Vac nominal, 230 Vac nominal, or Loop powered
Environmental conditions :
Operating:
temperature limits: -20 to +60 °C,
relative humidity max 90%, up to 35 °C.
Storage:
temperature limits -45 to +80 °C.
Mounting:
T35 DIN Rail according to EN50022, with or without Power Bus or
on customized Termination Boards.
Connection:
by polarized plug-in disconnect screw terminal blocks to accomodate
terminations up to 2.5 mm2.
Location:
Safe Area/Non Hazardous Locations or Zone 2, Group IIC T4 or Class I, Division 2,
Group A,B,C,D, T4 or Class I, Zone 2, Group IIC, T4.
Protection class: IP 20.

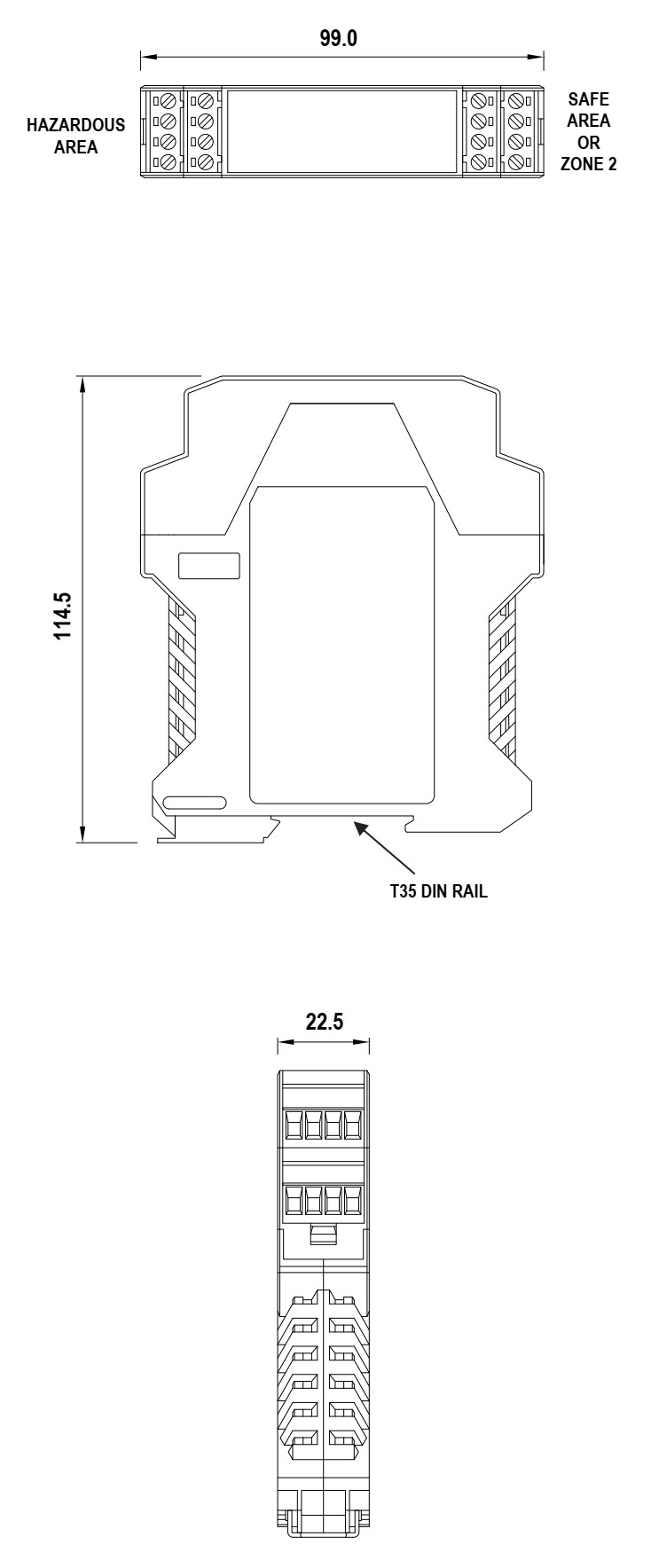

Dimensions: Width 22.5 mm, Depth 99 mm, Height 114.5 mm.
Materials:
Terminal block: Polyamide (PA) - V-0 according to UL94.
Main enclosure and Terminal block cover : Polyamide (PA) - V-0 according to UL94.
Compatibility:
CE mark compliant, conforms to Directives:
94/9/EC Atex, 2004/108/CE EMC, 2006/95/EC LVD, 2011/65/EU RoHS.
Refer to specific model data sheet for detailed characteristics
