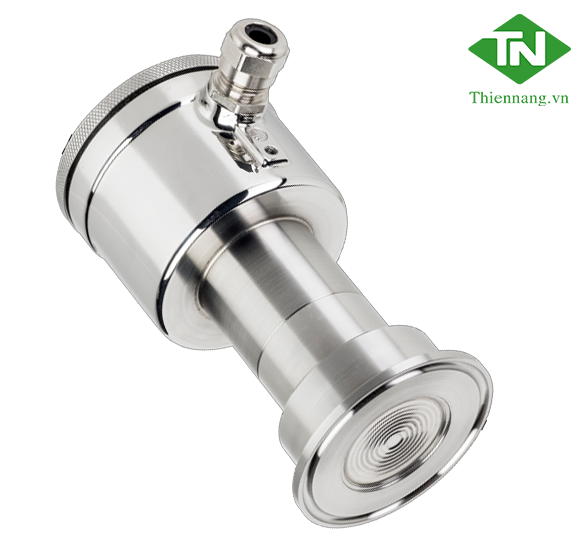

Electronic Pressure-Level Transmitters 8000 Series

Thương hiệu: Delta Mobrey

Tình trạng: Còn hàng

Liên hệ

Key Features

  • 0.29% accuracy of span.
  • Stainless steel housing.
  • Active temperature compensation.
  • Zero / Span internally adjustable.
  • Strong flush diaphragms.
  • Many process connections.
  • ATEX EEx ia
  • The 8000 is suitable for a wide range of applications in many Industry sectors:
  • Pulp and paper – stock lines, refiners, screens, cleaners, vacuum boxes etc.

Vận chuyển

Hỗ trợ vận chuyển tuỳ theo thoả thuận đơn hàng

Thanh toán nhanh

Hỗ trợ thanh toán tiền mặt, thẻ visa tất cả các ngân hàng

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Uy tín thương hiệu

Thiên Năng Tecch là thương hiệu được yêu thích và lựa chọn

Performance characteristics
Enclosure / Housing

  •  Robust stainless steel 304. Protection to IP66. Process connections
  •  Weld on nipple diam. 33mm (flush diaphragm) (equal to 1” PMC).
  •  G1” (1” BSP) threaded connection.
  •  1” NPT threaded connection.
  •  Others available – please specify.


  •  From 0.1 up to 50 bar, with max overpressure of 120 bar.


  •  ± 0.2% of adjusted span.

Additional Information

  •  Specially designed for pulp and paper where clogging is a problem.
  •  Diaphragm only 26mm diameter. This ensures no solids can collect in any crevices

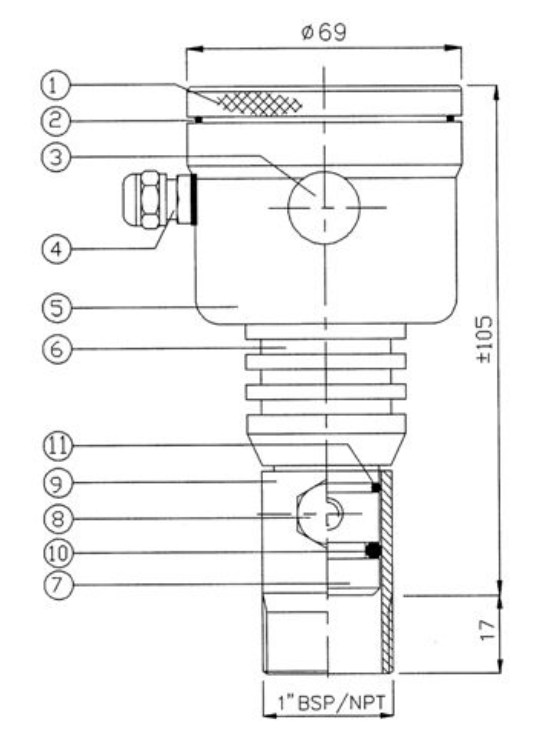

1. Cover 2. O-ring
3. Vent
4. Cable entry
5. Electrical compartment
6. Connecting part
7. Diaphragm ring
8. M8 screw
9. Weld on nipple / flange
10. O-ring
11. O-ring





Measuring Ranges  From 0-0.1 to 50 Bar
Output Signal  2-wire, 4-20mA
Overall Accuracy  ± 0.25% adjusted span.
Hysteresis  <0.1% of adjusted span.
Repeatability  <0.1% of adjusted span.
Power Supply  13 to 40 VDC
Electrical Connection Load (max) Protection Grade  PG9 compression gland. 450 ohm/24V and 1250 ohm/40V IEC 144-IP66
Response time Power Pressure  50ms See ordering information
Process Temperature Standard -40°C to 100°C.
Temperature Effect Range B-C ±0.03%/K adjusted span Range D-G ± 0.015%/K adjusted span -30°C to +85°C.
Ambient Temperature -30°C to +85°C
Adjustment Zero and span internally
Process connections See ordering information
Wetted parts Material Standard AISI 316
Material Housing AISI 304
