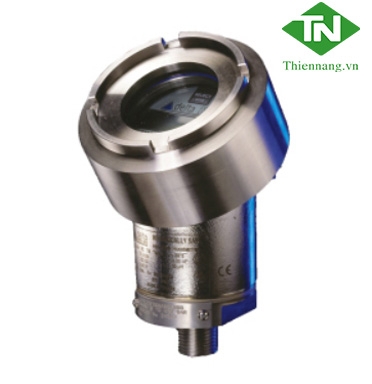

Delta Mobrey 2HT SMART Pressure Transmitter

Thương hiệu: Delta Mobrey

Tình trạng: Còn hàng

Liên hệ

Key Features
• High Accuracy ± 0.10%.
• Ranges from 1 bar to 1000 bar.
• 20 : 1 turndown.
• 4-20mA analogue with digital communications.
• Fully HART ® compatible.
• Rugged 316 stainless steel investment cast enclosure.
• NEMA 4X, IP66 Environmental Rating.
• Stainless Steel, Monel and Hastelloy “Wetted Parts” options.
• NACE MR-01-75 compatibility.
• Compact, Robust design.
• All welded construction

Vận chuyển

Hỗ trợ vận chuyển tuỳ theo thoả thuận đơn hàng

Thanh toán nhanh

Hỗ trợ thanh toán tiền mặt, thẻ visa tất cả các ngân hàng

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Uy tín thương hiệu

Thiên Năng Tecch là thương hiệu được yêu thích và lựa chọn

Series Overview
• The model 2HT has a compact, robust, all stainless steel construction making it particularly suited to the harsh corrosive environments of offshore applications.
• For applications where the ambient temperature can vary significantly, the 2HT can be supplied with an optional high accuracy calibration enabling the accuracy to be maintained within 0.1% for ambient temperatures ranging from -30°C to +70°C.
Other related products:
• D23 SMART Pressure Transmitter

Accuracy For turndowns of 1:1 to 10:1 ± 0.1% of span For turndowns of 10:1 to 20:1 ± 0.15% of span. Accuracy stated includes the combined effects of Linearity, Hysteresis, and Repeatability.
Temperature limits Process: -40 to +120°C (-40 to +240°F) Operating: -40 to +85°C (-40 to +185°F) Storage: -50 to +110°C (-58 to +230°F).
Ambient Temperature effects Total effect ±0.1% at maximum span.
Humidity limits 0 to 100% relative humidity
Enclosure classification IP66 / NEMA 4X / Flameproof Ex d / Intrinsically safe Ex ia
Signal output

Code 1: 50 V DC Maximum voltage between circuit and case, blind instrument.

Code 2: 50 V DC Maximum voltage between circuit and case, instrument with indicator

Code A: 500 V AC Maximum voltage between circuit and case, blind instrument

Code B: 500 V AC Maximum voltage between circuit and case, instrument with indicator

Electrical rating

Code G: Gauge

Code A: Absolute

Process Connection

Code J: 1/2” NPT Male external (standard)

Code N: G1/2”A to ISO 228 (1/2” BSP Parallel Male, spigotted)

Code V: High Pressure Cone and Thread (Autoclave) 9/16” UNF

Weight Without local display: 1.6kg; With optional local display: 1.8kg; Wall mount bracket: 0.2kg; Pipe mounting bracket 0.5kg; Remote D-CAL unit 0.2kg
