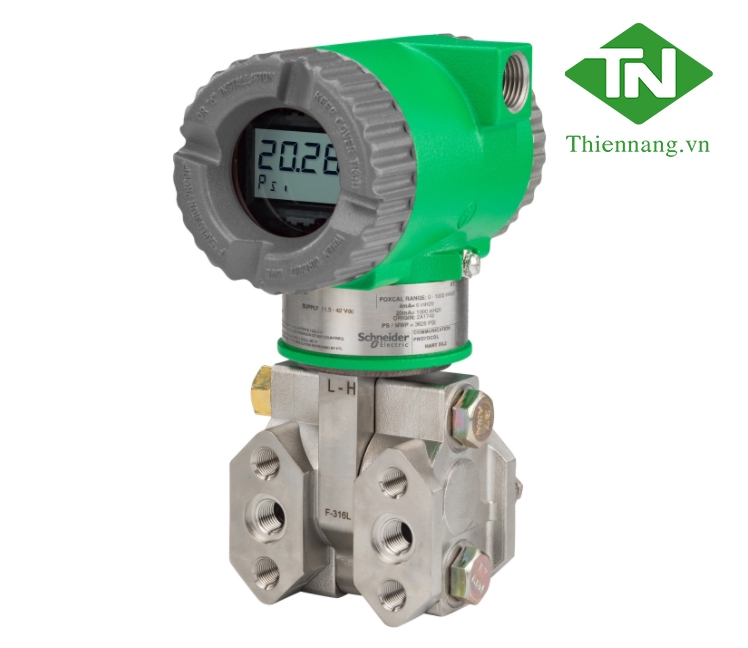

Differential IDP05S Economical pressure transmitter ±0.075% span

Thương hiệu: Schneider

Tình trạng: Còn hàng

Liên hệ

Specifications Main range of product Pressure product or component type Pressure transmitter measurement type Differential Complementary turndown 400:1 mounting type Direct to process Low profile Biplanar response time 125 ms measurement accuracy +/- 0.075 % of the measuring range maximum pressure 3000 psi 207 bar drift +/- 0.05 % of measuring range per year, for 10 years communication protocol HART Low Power Environment IP degree of protection IP67 NEMA degree of protection NEMA 4X product certifications FM CSA ATEX IEC-Ex EAC INMETRO TÜV Rheinland (SIL3) KOSHA standards NACE MR01-75 NACE MR01-03 Offer Sustainability Sustainable offer status Green Premium product REACh Regulation REACh Declaration REACh free of SVHC Yes EU RoHS Directive Compliant EU RoHS Declaration Mercury free Yes RoHS exemption information Yes China RoHS Regulation China RoHS declaration Environmental Disclosure Product Environmental Profile Circularity Profile End of Life Information WEEE The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins California proposition 65 WARNING: This product can...

Vận chuyển

Hỗ trợ vận chuyển tuỳ theo thoả thuận đơn hàng

Thanh toán nhanh

Hỗ trợ thanh toán tiền mặt, thẻ visa tất cả các ngân hàng

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Uy tín thương hiệu

Thiên Năng Tecch là thương hiệu được yêu thích và lựa chọn

Thông số kỹ thuật
Chính sách
Đánh giá sản phẩm

Specifications

Main
range of product	Pressure
product or component type	Pressure transmitter
measurement type	Differential

Complementary
turndown	400:1
mounting type	Direct to process Low profile Biplanar
response time	125 ms
measurement accuracy	+/- 0.075 % of the measuring range
maximum pressure	3000 psi 207 bar
drift	+/- 0.05 % of measuring range per year, for 10 years
communication protocol	HART Low Power

Environment
IP degree of protection	IP67
NEMA degree of protection	NEMA 4X
product certifications	FM CSA ATEX IEC-Ex EAC INMETRO TÜV Rheinland (SIL3) KOSHA
standards	NACE MR01-75 NACE MR01-03

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
