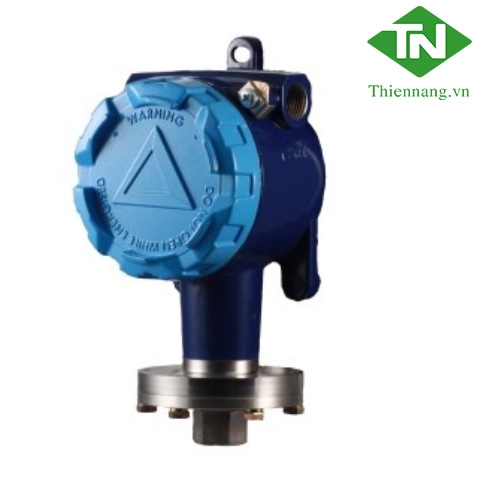

Sentry Series Pressure Switch P01, P02 & P03

Thương hiệu: Delta Mobrey

Tình trạng: Còn hàng

Liên hệ

Key Features
• SPDT & DPDT Switch Outputs
• Stainless steel and Aluminium Epoxy Coated Flameproof Enclosure IP66/NEMA4X
• ATEX / IECEx Flameproof & Intrinsically Safe
• 316 Stainless Steel Wetted Parts as Standard.
• Field Adjustable Set-points Against a Reference Scale
• Pressure Ranges up to 700bar
• Maximum Working Pressure up to 1000bar
• Suitable for use SIL 2 safety related systems



Vận chuyển

Hỗ trợ vận chuyển tuỳ theo thoả thuận đơn hàng

Thanh toán nhanh

Hỗ trợ thanh toán tiền mặt, thẻ visa tất cả các ngân hàng

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Uy tín thương hiệu

Thiên Năng Tecch là thương hiệu được yêu thích và lựa chọn

Series Overview
The Sentry Series offers exceptional performance and high build quality in a simple, safe and cost-effective package.
• Performance is assured by repackaging Delta’s well proven sensor technologies in a new, simple, one-piece enclosure.
• Safety is maintained by a vent that prevents the enclosure becoming pressurized in the event of a sensor being damaged.
• Cost is minimised through the selection of common standard options although, as with all Delta products, avariety of optional extras are available to tailor the product to specific needs.

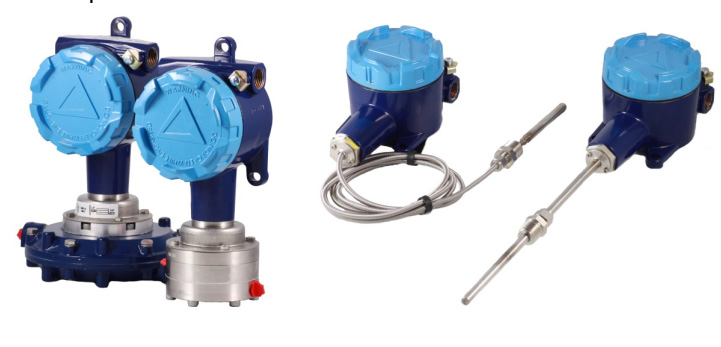

Other products in the series include:
• Differential Pressure Switches: Model D0
• Temperature Switches: Model T0

Accuracy Set point repeatability ± 1% of span at 20°C / 68°F ambient
Storage Temperature -40 to +60°C / -40 to +140°F
Ambient Temperature -30 to +60°C / -22 to +140°F
Maximum Process Temperature Subject to appropriate installation practice, the component parts withstand up to +60°C (+140°F). For process  emperatures up to +120°C (+248°F), order WETTED PARTS Code A or S (Table 4). For higher temperatures, refer to SPECIAL ENGINEERING.
Enclosure classification IP66 / NEMA 4X / Flameproof Ex d / Intrinsically Safe Ex ia.
Switch output SPDT or DPDT snap action microswitch (standard)
Hermetically sealed (optional)
Electrical rating See Table 6
Process Connection ¼” NPT F (Standard)
Others (optional)
Approximate Weight 1.7kg / 3.7lb to 6.4kg / 5lb depending on model



Download datasheet:
